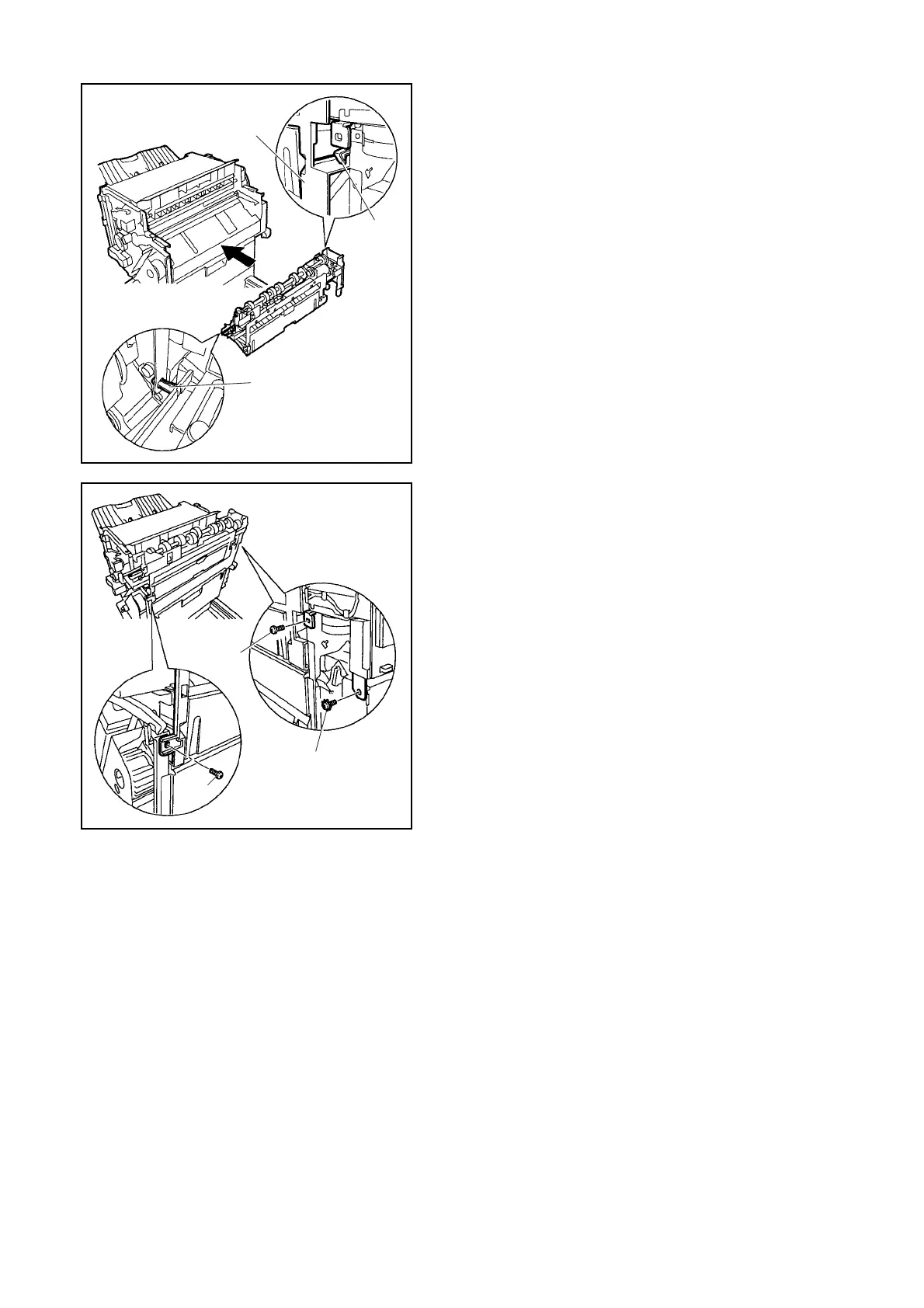

(2) Place the Punch Unit on the paper supply
section of the Finisher as shown below.
(3) Secure the Punch Unit to the Finisher with the
original 2 Screws (White, M4 X 6), and the
enclosed 1 Screw (Screw with Threaded Star
Washer, M4 x 6).
Latch
Positioning Pin
Punch Base Cover
Screw
Screw
Screw with Threaded
Star Washer
To Next Page
