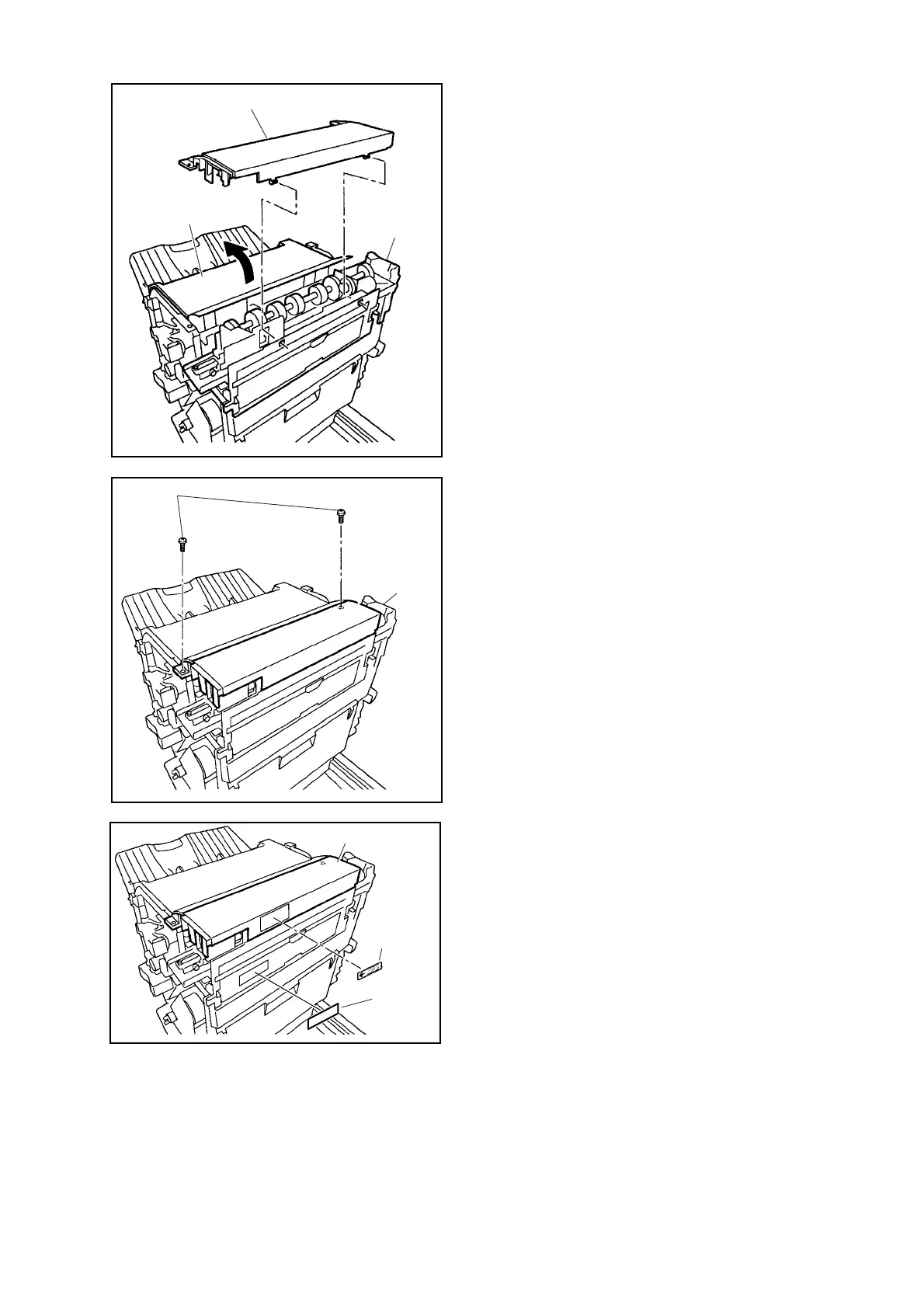

(4) Open the Upper Cover, fit the Latches on the
Upper-Right Cover in the square holes in the
Punch Unit, and attach the Upper-Right Cover
to the Punch Unit.
(5) Close the Upper Cover.
(6) Secure the Upper-Right Cover to the Finisher
with the original 2 Screws (White, M4 x 6).
(7) Attach the Jam Removal Instruction Label in
your desired language to the Label Frame on the
Upper-Right Cover.
Upper-Right Cover
Upper Cover
Punch Unit
Screws
Upper-Right
Cover
Upper-Right Cover
Jam
Removal
Instruction
Label
Punch
Dust
Label
