700
DP-C405/C305/C265
FEB 2008Ver. 1.1

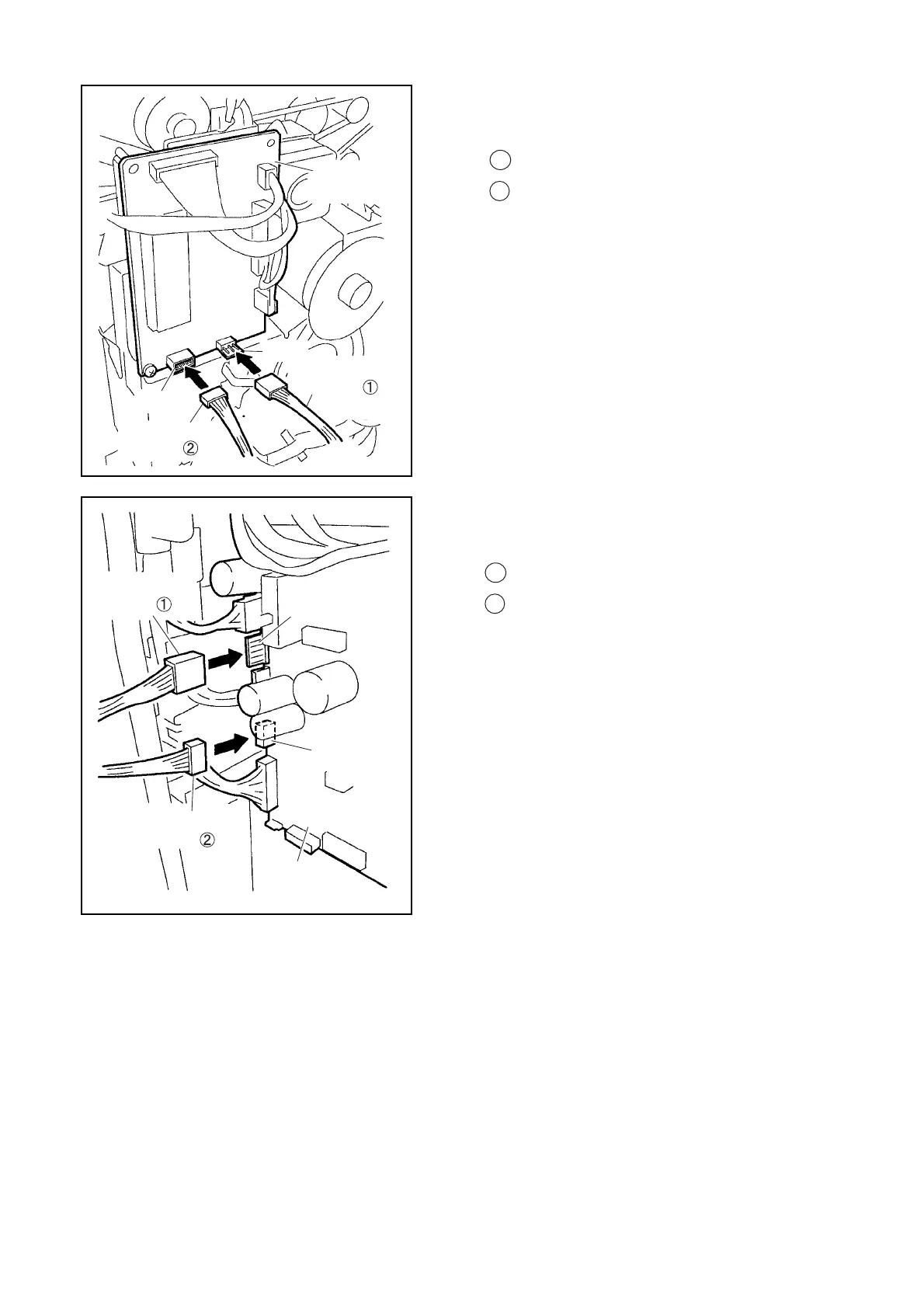

(8) Connect one end of the Punch Relay
Harnesses to the Punch Controller Circuit Board
as follows:
= J1004
= J003
(9) Connect the other end of the Punch Relay
Harnesses to the Finisher Controller Circuit
Board as follows:
= CN14
= CN12
Punch
Controller
Circuit Board
J1004
J1003
Punch Relay
Harness
Punch Relay
Harness
1
2
Punch Relay
Harness
Punch Relay
Harness
CN14
CN12
Finisher
Controller
Circuit Board
1
2
