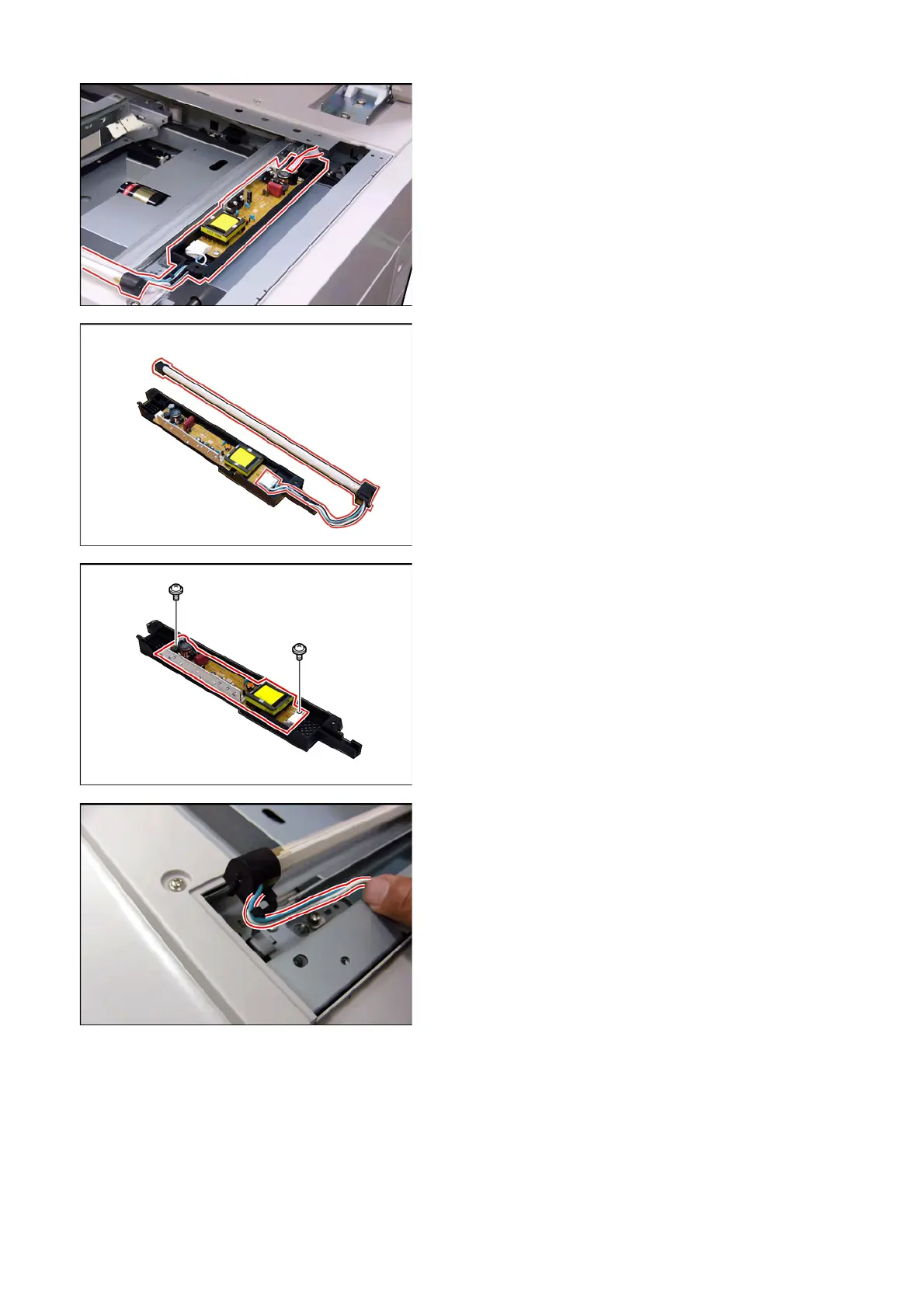

(14) Turn the Inverter PC Board Case upside down.
(15) Disconnect the Flat Harness on the Inverter PC
Board.
(16) Remove the Inverter PC Board Assembly.
(17) Disconnect the Lamp Harness.
(18) Remove the Scanning Lamp (1615).
(19) Remove 2 Screws (X8).
(20) Remove the Inverter PC Board (1612).
Note:
Ensure that the Scanning Lamp Harness is
reinstalled properly as illustrated.
