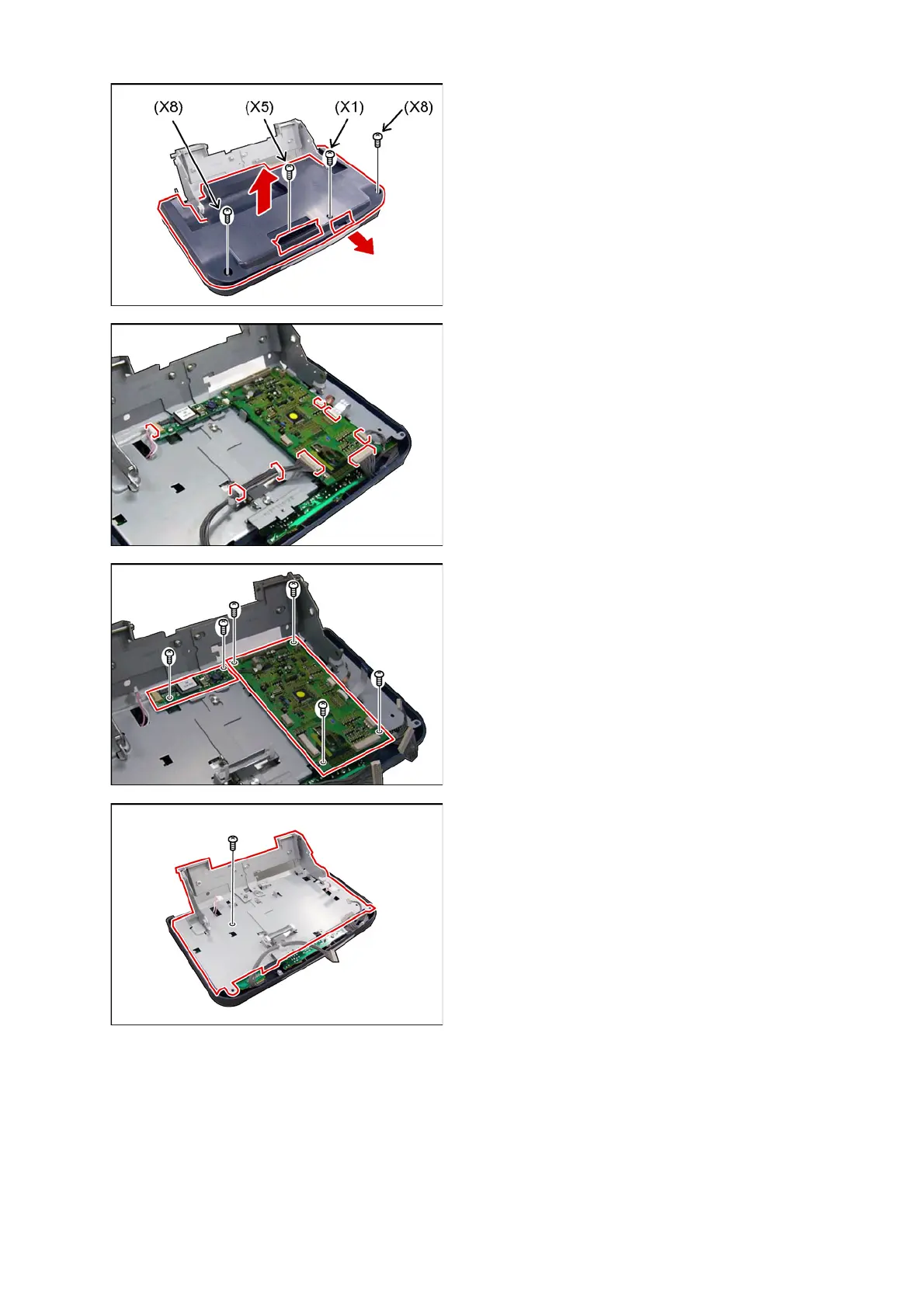

(15) Turn the Control Panel Unit upside down.
(16) Remove 1 Screw (X8).
(17) Remove the Battery Holder (1306).
(18) Remove 1 Screw (X5).
(19) Remove the Release Lever (1305).
(20) Remove 2 Screws (X1).
(21) Remove the Lower Panel Cover (1304).
(22) Release the Harnesses from the 2 Harness
Clamps.
(23) Disconnect all the Harnesses on the PNL 1 PC
Board, and INV PC Board.
(24) Remove 2 Screws (X5).
(25) Remove the INV PC Board (1327).
(26) Remove 4 Screws (X5).
(27) Remove the PNL 1 PC Board (6505).
(28) Remove 1 Screw (X5).
(29) Remove the Panel Base, and Guide Assembly
(1303).
