82
DP-C405/C305/C265
FEB 2008Ver. 1.1

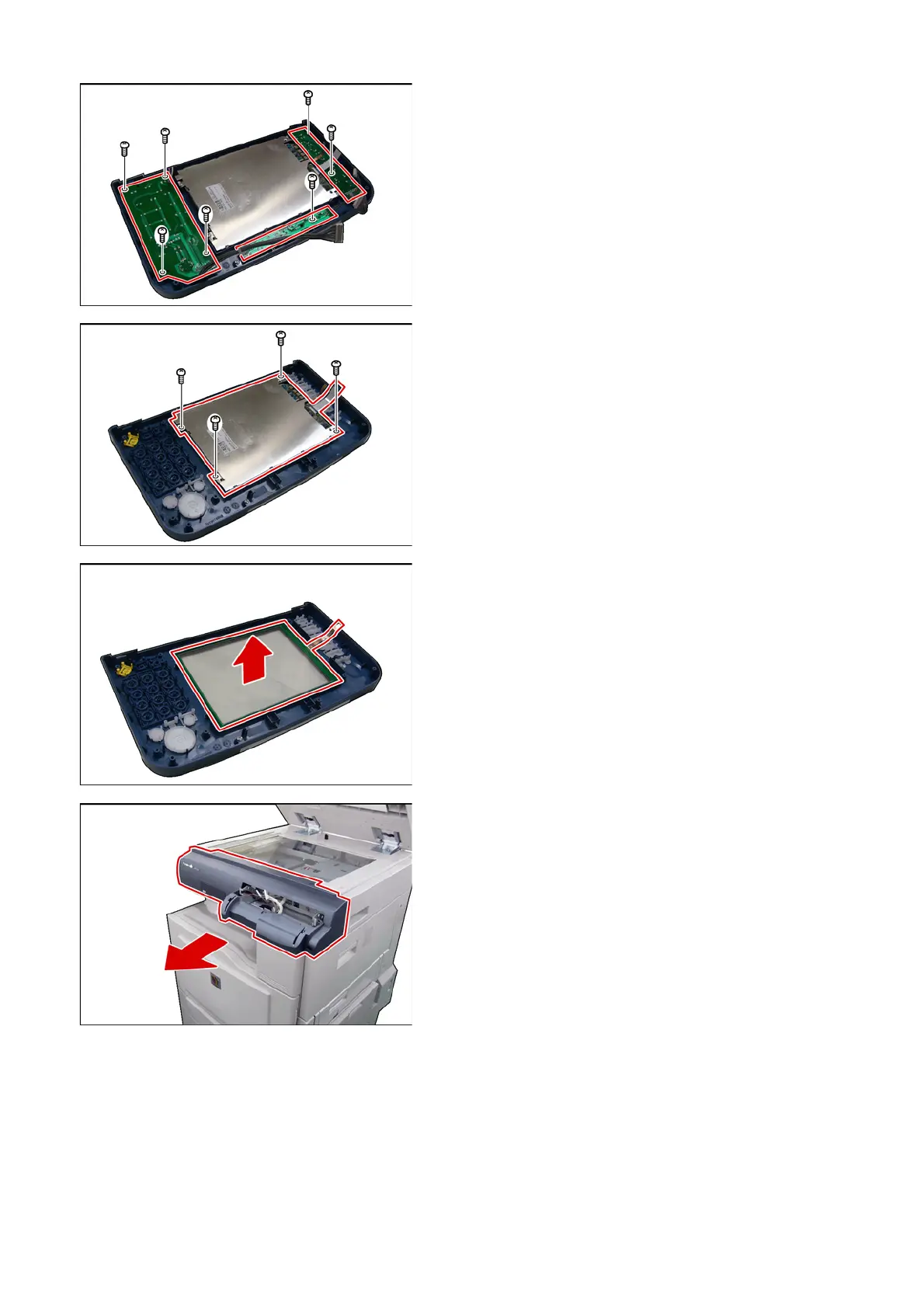

(30) Remove 1 Screw (X8).
(31) Remove the PNL 4 PC Board (1333).
(32) Remove 2 Screws (X8).
(33) Remove the PNL 3 PC Board (1332).
(34) Remove 4 Screws (X8).
(35) Remove the PNL 2 PC Board (1331).
(36) Remove 4 Screws (X8).
(37) Remove the LCD Module (1326).
(38) Remove the Touch Panel (1325).
(39) Remove the Scanner Front Cover Assembly
(1201).
