Adjustment
101

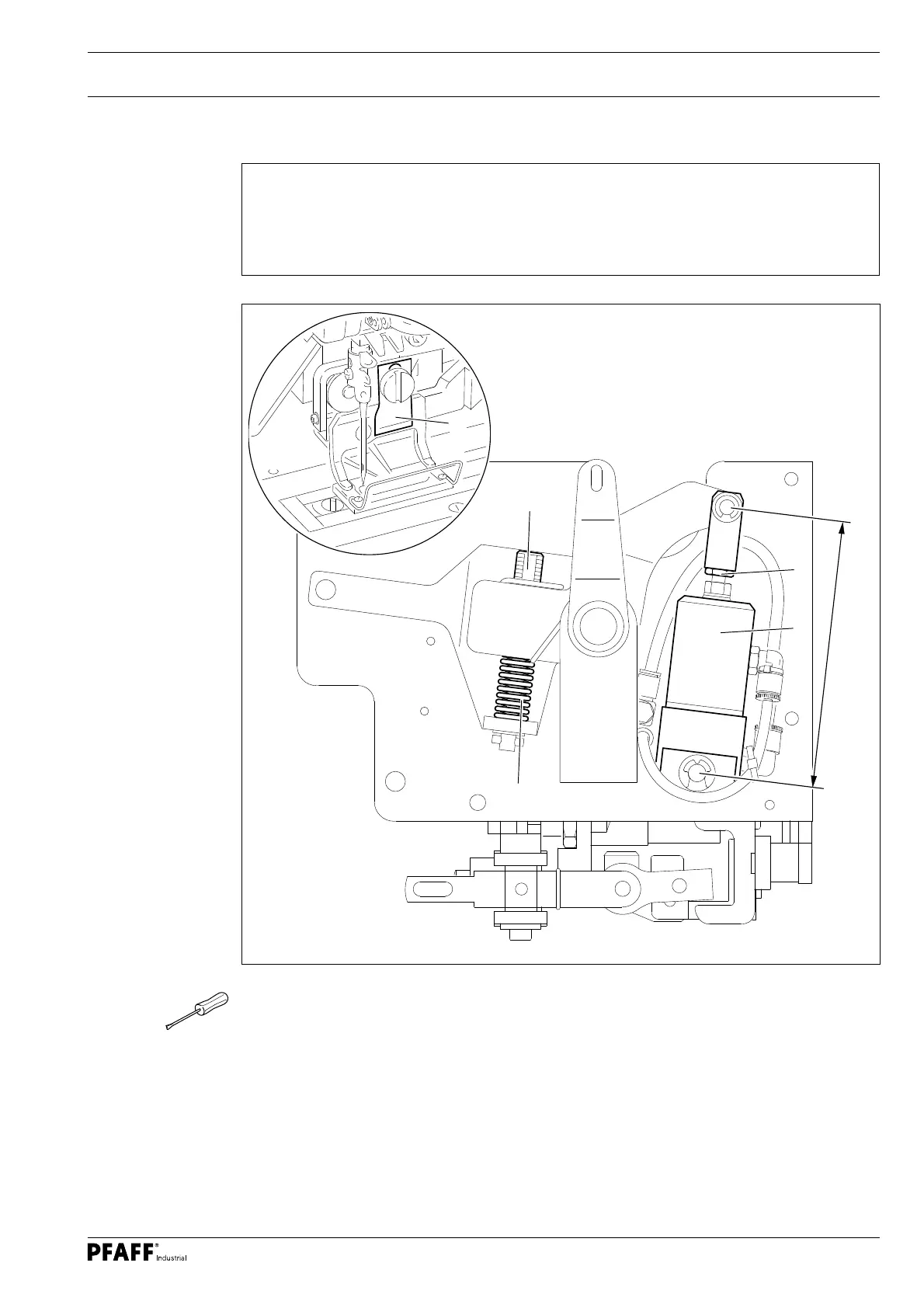

13.21 Cutting pressure of the knife unit ( in dismantled state )
Requirement
1. In its basic position ( retracted ), the knife cylinder 1 should have a length of 98.5 mm.
2. The knife 5 should cut perfectly, but the pressure on knife 5 should be as low as
possible.
● Adjust knife cylinder 1 ( nut 2 ) according to requirement 1.
● To begin with, by turning screw 4 completely compress spring assembly 3, and then
wind screw 4 back by three turns ( requirement 2 ).
Fig. 13 - 17
56-007a
4
3
2
1
98,5 mm
5
