Care and maintenance
80
10
12
0
6
4
2
8
16
14
100
50
150
0
200
230

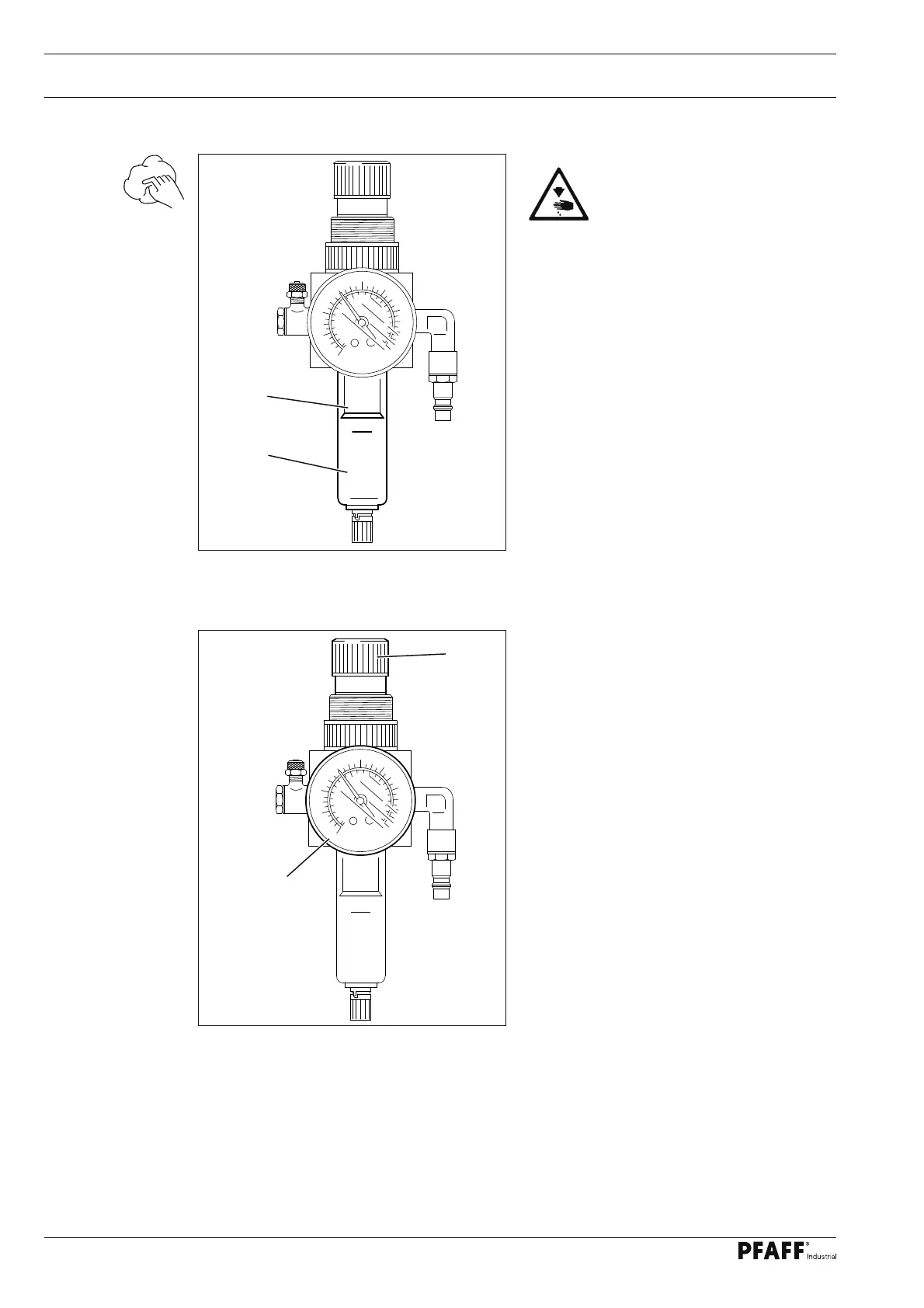

12.04 Cleaning the air fi lter of the air-fi lter / lubricator
Switch the machine off!
Disconnect the air hose at the
air-fi lter / lubricator.
To drain water bowl 1:
Water bowl ● 1 drains itself automatically
whe the compressed-air hose is discon-
nected from the air-fi lter / lubricator.
Cleaning fi lter 2:
Unscrew water bowl ● 1.
Take out fi lter ● 2.
Clean fi lter ● 2 with compressed air or
isopropyl alkohol
( part No. 95-665 735-91 ).
Screw in fi lter ● 2 and screw on water
bowl 1.
Fig. 12 - 02
1
2
10
12
0
6
4
2
8
16
14
100
50
150
0
200
230
Fig. 12 - 03
12.05 Checking/adjusting the air pressure
Before operating the machine, always ●
check the air pressure on gauge 1.
Gauge ● 1 must show a pressure of 6 bar.
If necessary adjust to this reading. ●
To do so, pull knob ● 2 upwards and turn it
so that the gauge shows a pressure of
6 bar.
2
1
