Adjustment
127

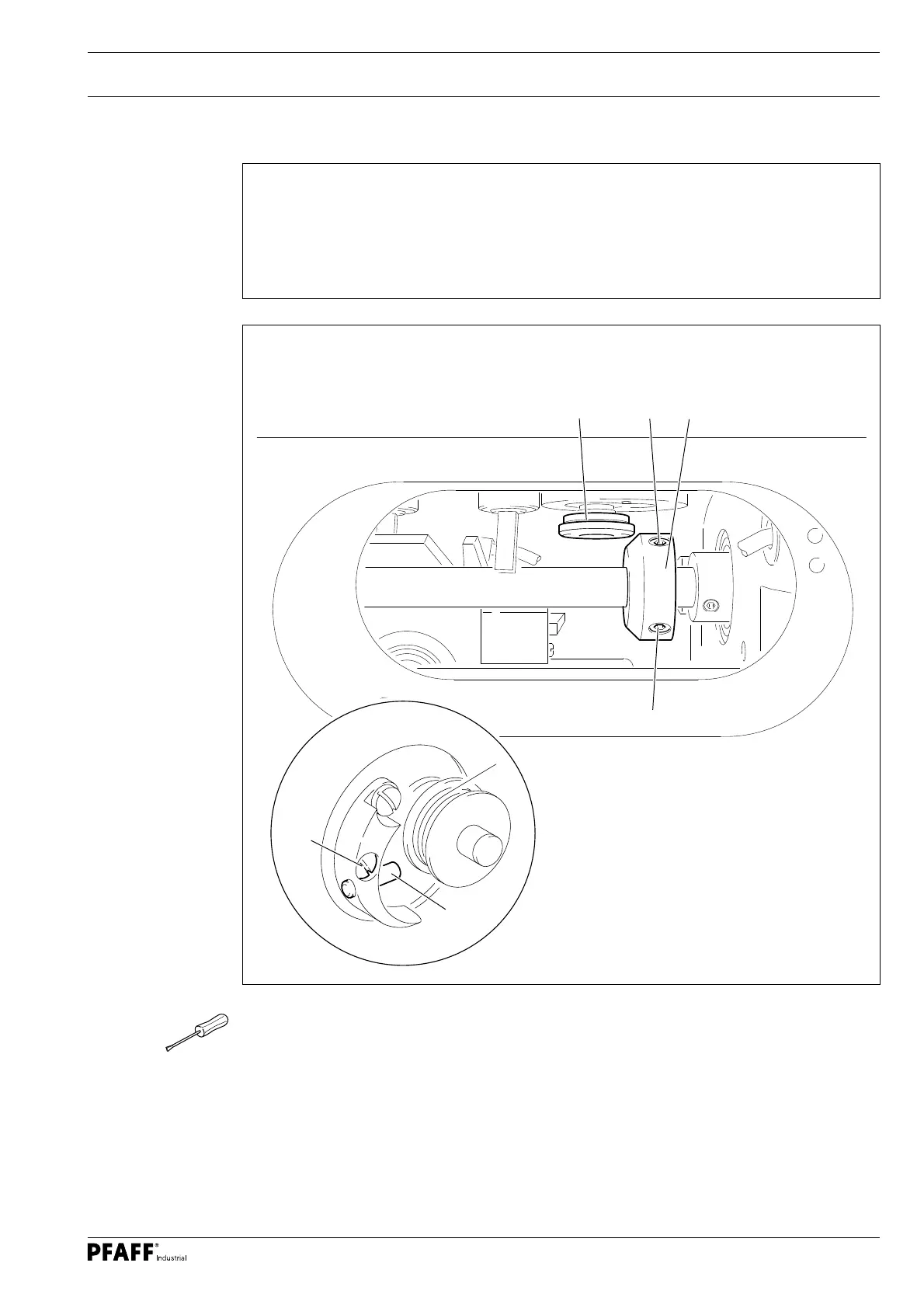

Fig. 13 - 42
5
2 1
2
4
3
13
.45 Bobbin winder
Requirement
1. When the bobbin winder is activated, the friction wheel 5 should be driven reliably.
2. When the bobbin winder is deactivated, the drive wheel 1 should not touch friction wheel 5.
3. When the bobbin is filled up to 1 mm from the edge, the bobbin winder should switch
off automatically.
● Adjust drive wheel 1 ( screws 2 ) according to requirements 1 and 2.
● Adjust stud 3 ( screw 4 ) according to requirement 3.
