Adjustment
99

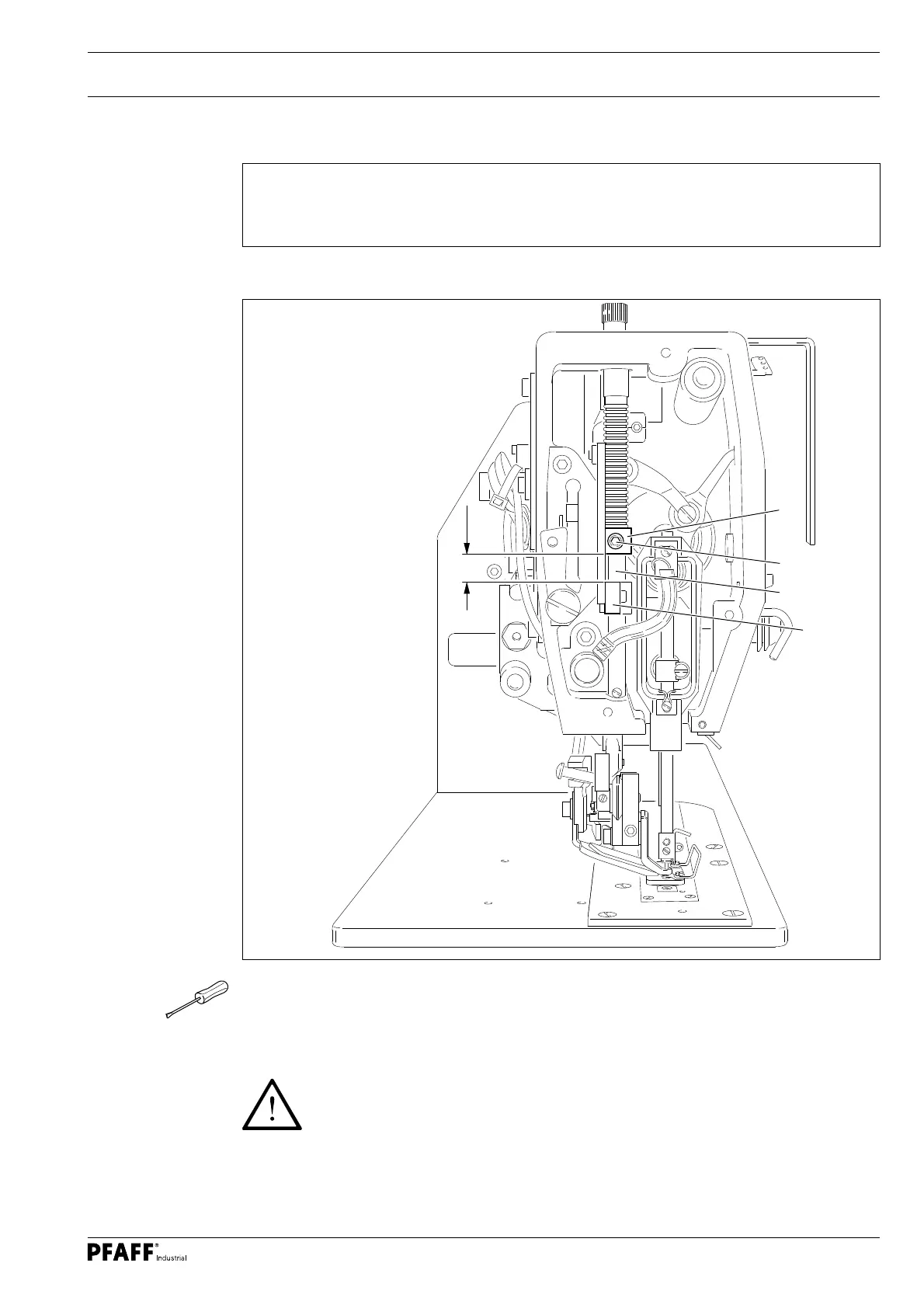

Fig. 13 - 15
1
2
3
4
15 mm
13
.19
Work clamp stroke
Requirement
When the lifting cylinder is completely extended, there should be a space of 15 mm
between lifting piece
4
and clamp
1
.
●
Reduce the work clamp pressure completely, see
Chapter 9.09 Adjusting the work
clamp pressure.
●
Adjust clamp
1
( screw
2
) according to the
requirement.
Take care not to twist bar
3
during the adjustment!
98
100
Table of Contents
Instruction Manual
1
Table of Contents
3
Safety
7
Regulations
7
General Notes on Safety
7
Safety Symbols
8
Important Notes for the User
8
Notes for Operating and Technical Staff
9
Operating Staff
9
Technical Staff
9
Danger Warnings
10
Proper Use
11
Specifi Cations
12
General Information
12
Stitch Formation of the Various Sub-Classes
13
Disposal of Machine
14
Transportation, Packing and Storage
15
Transportation to Customer's Premises
15
Transportation Inside the Customer's Premises
15
Disposal of Packing Materials
15
Storage
15
Explanation of Symbols
16
Controls
17
Main Switch
17
Switch for Separate Compressor (Optional)
17
Pedal
18
Preventing Knife Engagement
18
Control Panel
19
Display Symbols
19
General Key Functions
19
Further Key Functions in the Buttonhole Mode
21
Other Key Functions in the Bartack Mode
22
Further Key Functions in the Activated Sequence Mode
23
Mounting and Commissioning the Machine
24
Installation
24
Adjusting the Table Height
24
Installation Variants
25
Connecting the Plug Connections and Earth Cables
28
Fitting the Reel Stand
29
Commissioning
29
Switching the Machine on / off
29
Setting up the Machine Control Unit
30
Establishing the Sub-Class
30
Setting Parameter "202
31
Setting up
32
Inserting the Needle
32
Winding the Bobbin Thread / Adjusting the Preliminary Thread Tension
33
Threading the Bobbin Case / Adjusting the Bobbin Thread Tension
34
Changing the Bobbin
35
Threading the Needle Thread
36
Selecting the Operating Mode
37
Selecting the Type of Buttonhole / Bartack
38
Adjusting the Needle Thread Tension
39
Adjusting the Work Clamp Pressure
40
Inserting and Removing the SD-Memory Card
40
Position of the Needle to the Workpiece
41
Activating the Sequence Mode
42
Sewing
43
Sewing in the Buttonhole Mode
43
Control Panel with Speed or Buttonhole Model Display
43
Selecting the Buttonhole
44
Entering the Knife Length and Cut Overlap
45
Altering the Buttonhole Width and Seam Correction
46
Altering the Cutting Width and Cutting Length Correction
47
Sewing in the Bartack Mode
48
Control Panel with Speed or Bartack Type Display
48
Selecting the Bartack
49
Error Messages
50
Input
51
Summary of the Function Groups and Parameters
51
Selecting the Function Group and Altering the Parameters
52
Entering / Altering the Access Code
53
Allocating Access Rights
54
Variable Programs
55
Copying Programs
55
Creating / Modifying Vario Programs in the Buttonhole Mode
57
Creating / Modifying Vario Programs in the Bartack Mode
58
Buttonhole and Bartack Model
59
Table for Entering a Buttonhole Program
63
Table for Entering a Bartack Program
64
Sequences
65
Creating Sequences
65
Selecting Programs
68
Special Programs
69
SAM (Sewing Application Manager)
69
Program Management
69
Calling up the Program Management
70
Display of the Data in the Machine Memory
71
Display of the Data on the SD-Memory Card
72
Copying Data Onto the SD-Memory Card
73
Copying Data into the Machine Memory
74
Deleting Data in the Machine Memory
75
Deleting Data from the SD-Memory Card
76
Formatting the SD-Memory Card
77
Care and Maintenance
78
Maintenance Intervals
78
Cleaning the Machine
78
Cleaning the Hook Compartment
79
Cleaning the Air Fi Lter of the Air-Fi Lter / Lubricator
80
Checking/Adjusting the Air Pressure
80
Check Oil Level for Needle Drive Unit
81
Check Oil Level for the Hook
81
Check Oil Level for the Compressor
81
Adjustment
82
Notes on Adjustment
82
Tools, Gauges and Other Accessories
82
Abbreviations
82
Toothed Belts of the Hook Drive Unit
83
Drive Rods of the Bobbin Thread Trimming Device
84
Switch for Sewing Start
85
Basic Position of the Feed Drive Unit
86
Preliminary Adjustment of the Work Clamp
87
Toothed Belts of the Main Drive Unit
88
Preliminary Adjustment of the Needle Height
89
Position of the Needle Plate in Relation to the Needle
90
Controlling the Stitch Symmetry
91
Sensor Board of the Needle Drive ( in Dismantled State )
92
Basic Setting of the Needle Drive Unit
94
Basic Position of the Work Clamp ( Lengthwise to the Arm )
95
Basic Position of the Work Clamp ( Crosswise to the Arm )
96
Upper Take-Up Lever Position (Reference Position)
97
Lifting Elbow on the Work Clamp
98
Work Clamp Stroke
99
Lifting Cylinder of the Work Clamp
100
Cutting Pressure of the Knife Unit ( in Dismantled State )
101
Position of the Knife Bracket and Lower Knife Stop
102
Upper Knife Stop
104
Knife Control Switch
105
Knife Motion
106
Distance of the Knife to the Needle Bar
107
Changing the Knife / Knife Height
108
Functional Test of Needle Thread Cutter
109
Needle Thread Cutter ( Vertical and Horizontal Adjustment )
110
Cam Guide Unit
111
Needle Thread Cutter Stroke
112
Needle Thread Cutter Switch
113
Needle Thread Cutter Release
114
Catch
115
Swing out Motion of the Needle Thread Cutter
116
Needle Bar Rise and Hook-To-Needle Clearance
117
Needle Bar Height and Needle Guard
119
Bobbin Case Holder
120
Hook Lubrication
121
Knife Position
122
Knife Guard
123
Needle Thread Tension Release
124
Needle Thread Puller
125
Side Thread Tension and Slack Thread Regulator
126
Bobbin Winder
127
Retainer Position (Only for 3119-2/62 and -2/63)
128
Carrying out a Cold Start
129
Parameter Settings
130
Selecting and Altering Parameters
130
List of Parameters
131
Malfunctions
138
Error Messages
138
Motor Errors
140
Wearing Parts
141
Circuit Diagrams
144
