Adjustment
97

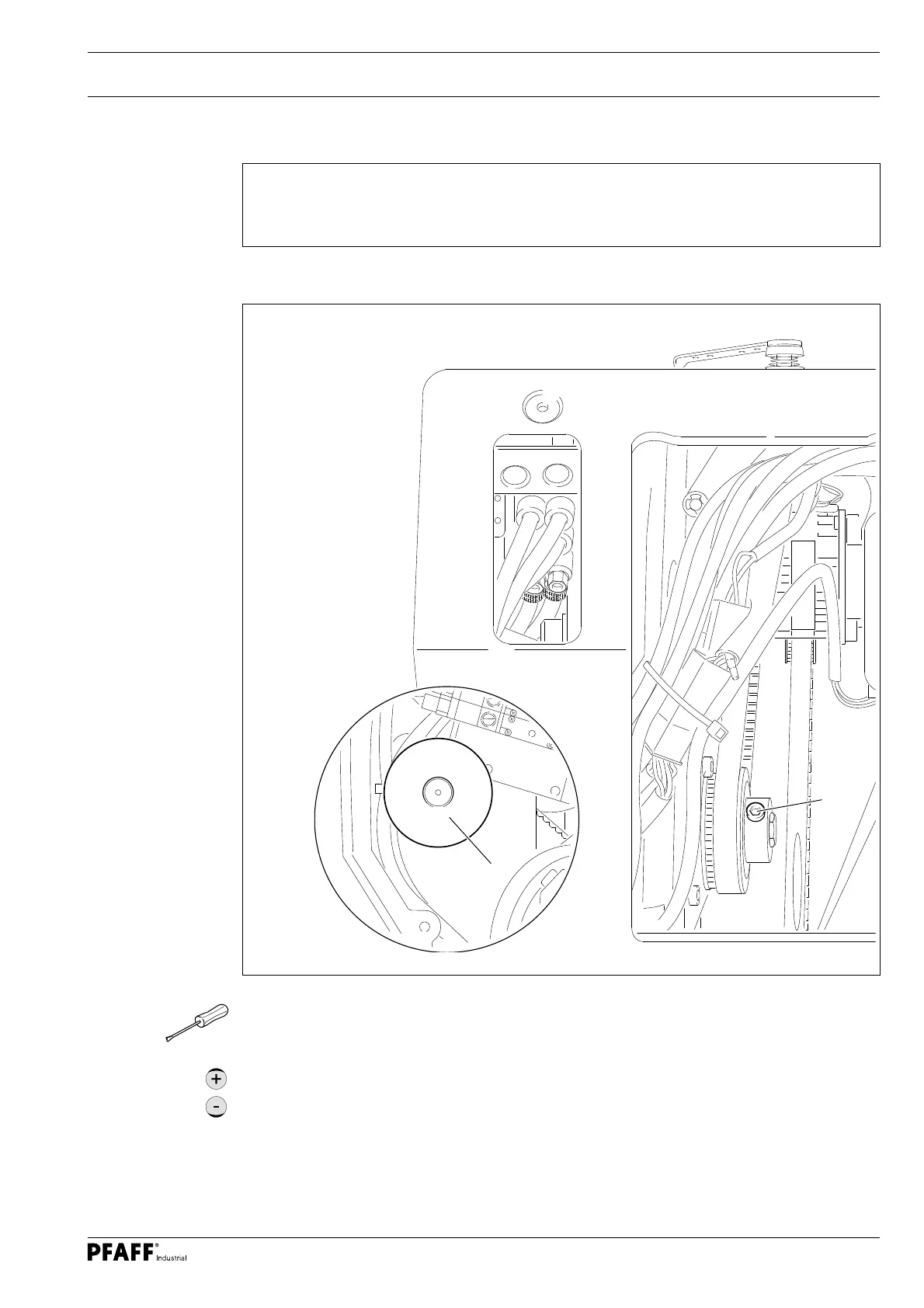

Fig. 13 - 13
56-057a
2
1
13.17 Upper take-up lever position (reference position)
Requirement
The take-up lever should position 1.8 - 2.0 mm before its t.d.c. and one of the screws 1
should be accessible.
● Remove the needle and switch on the machine.
● Select parameter "609".
● Call up the "Enter" function with the corresponding plus/minus key. The motor turns to
the reference point.
● Loosen screw 1 and, by turning the balance wheel 2, bring the take-up lever into position
according to the requirement.
● Tighten screws 1.
● Switch off the machine.
