Adjustment
107
83-031
13.26 Distance of the knife to the needle bar
Requirement
There should be a distance of 0.2 - 0.5 mm between the knife 3 and the needle bar 4.

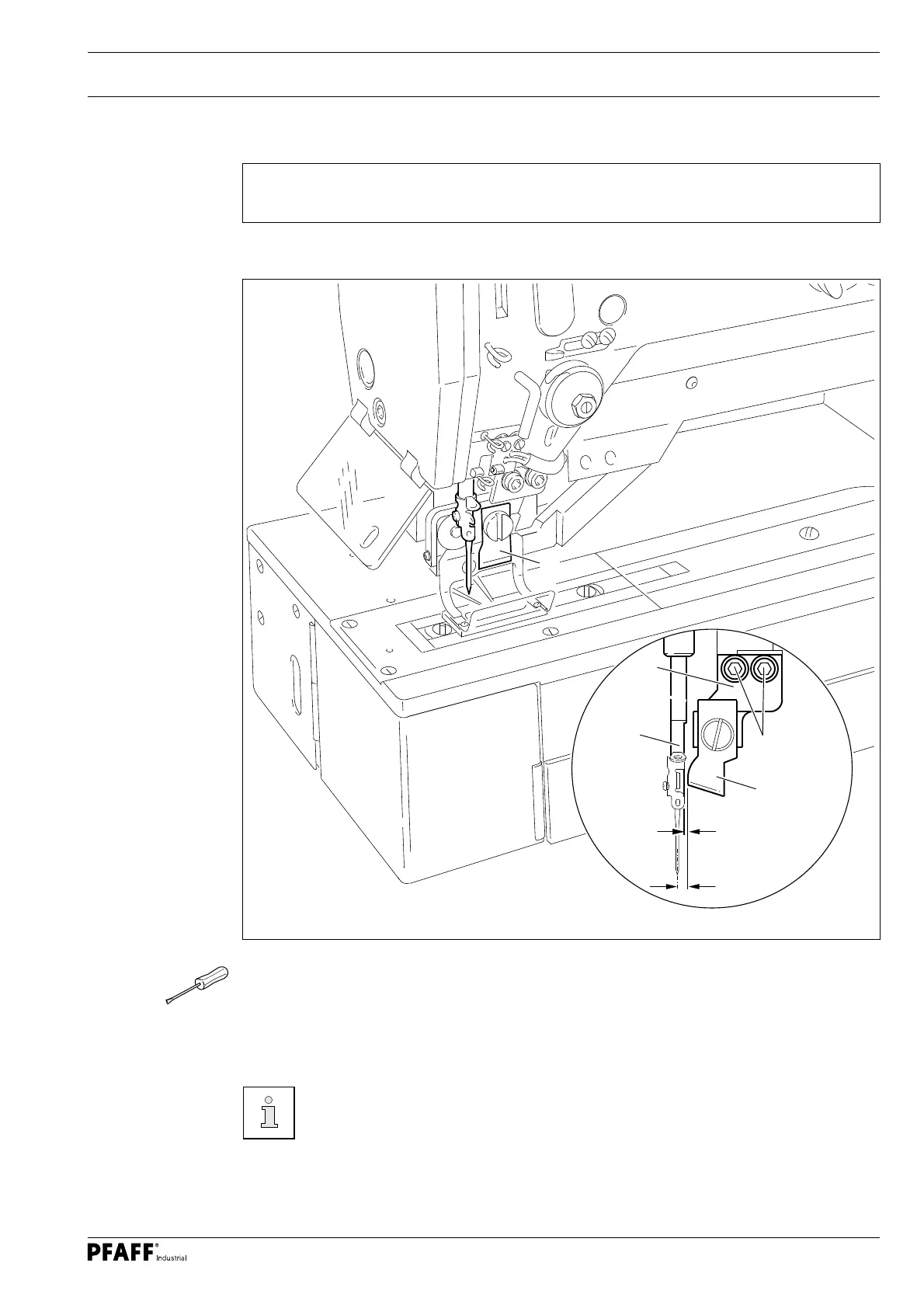

Fig. 13 - 22
● Adjust knife holder 1 ( screws 2 ) according to the requirement.
● Remove compressed air supply.
● Push the knife holder down by hand and check the distance of the knife from the needle
plate cutout.
After setting the distance between the knife and the needle bar, the setting
value of parameter "210" should be adapted to the measurement "x".
2
1
3
0,2 - 0,5 mm
3
X
4
