Adjustment
95
● Connect the compressed air system and switch on the machine.
● Lower the work clamp 1 ( control panel ).
● Adjust bar 2 ( screw 3 ) according to the requirement.
● Switch off the machine and disconnect the compressed air.
1

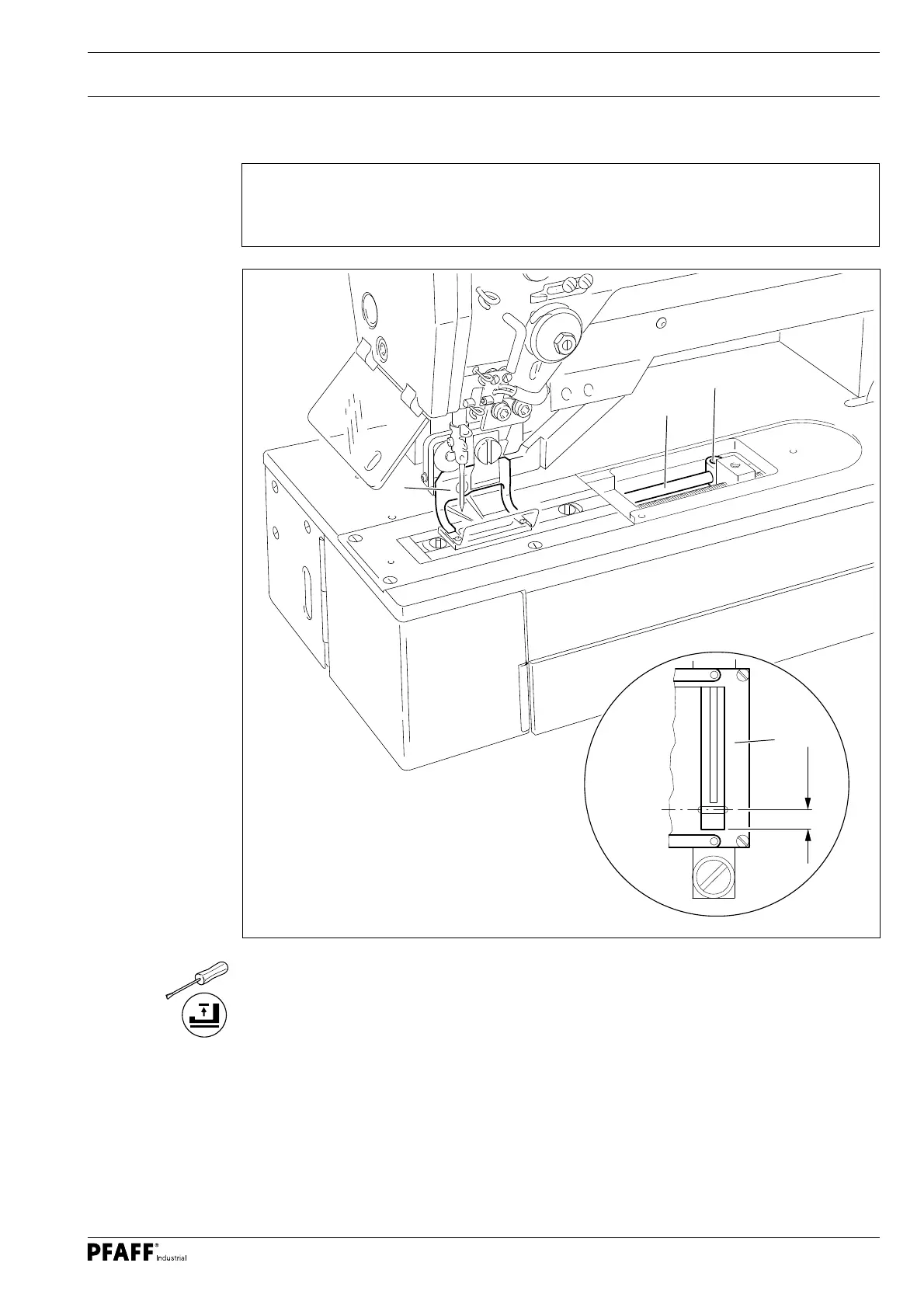

Fig. 13 - 11
2
3
1
5 mm / 9 mm
13.15 Basic position of the work clamp ( lengthwise to the arm )
Requirement
When the clamp 1 is in its basic position, there should be a distance of 5 mm, or 9 mm on
machines with sub-class -2/62 and -2/63, from the centre of the needle hole to the work clamp.
