9.04 Changing the bobbin
Switch off the machine!
Lock the knife mechanically
with the knife engagement pre-
vention device! Danger of injury
from the needle and the knife!
Open the cover of the hook compart- ●
ment.
Removing the bobbin:
Raise latch ● 1 and remove bobbin case 2
together with the bobbin.
Inserting the bobbin:
Raise latch ● 1 and insert bobbin case 2 to-
gether with the bobbin into the hook
Release latch ● 1 and push the bobbin case
into the hook until you feel it snap into
place.
Close the cover of the hook compart- ●
ment.

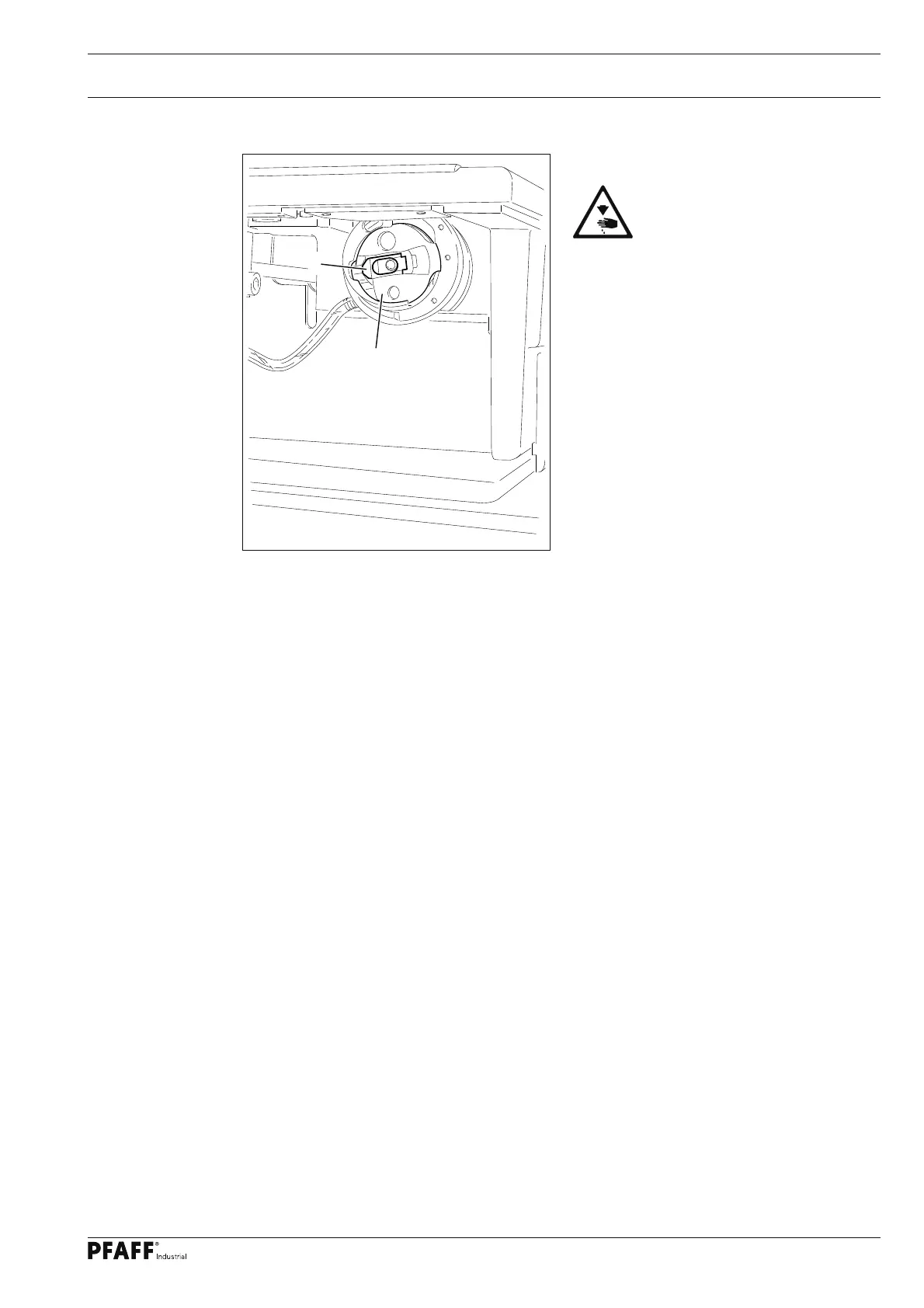

Fig. 9 - 04
1
2
