Adjustment
102
56-060
56-060a
2
16,3 mm
Fig. 13 - 18
4
7
3
5
6
1
56-060b
9
8

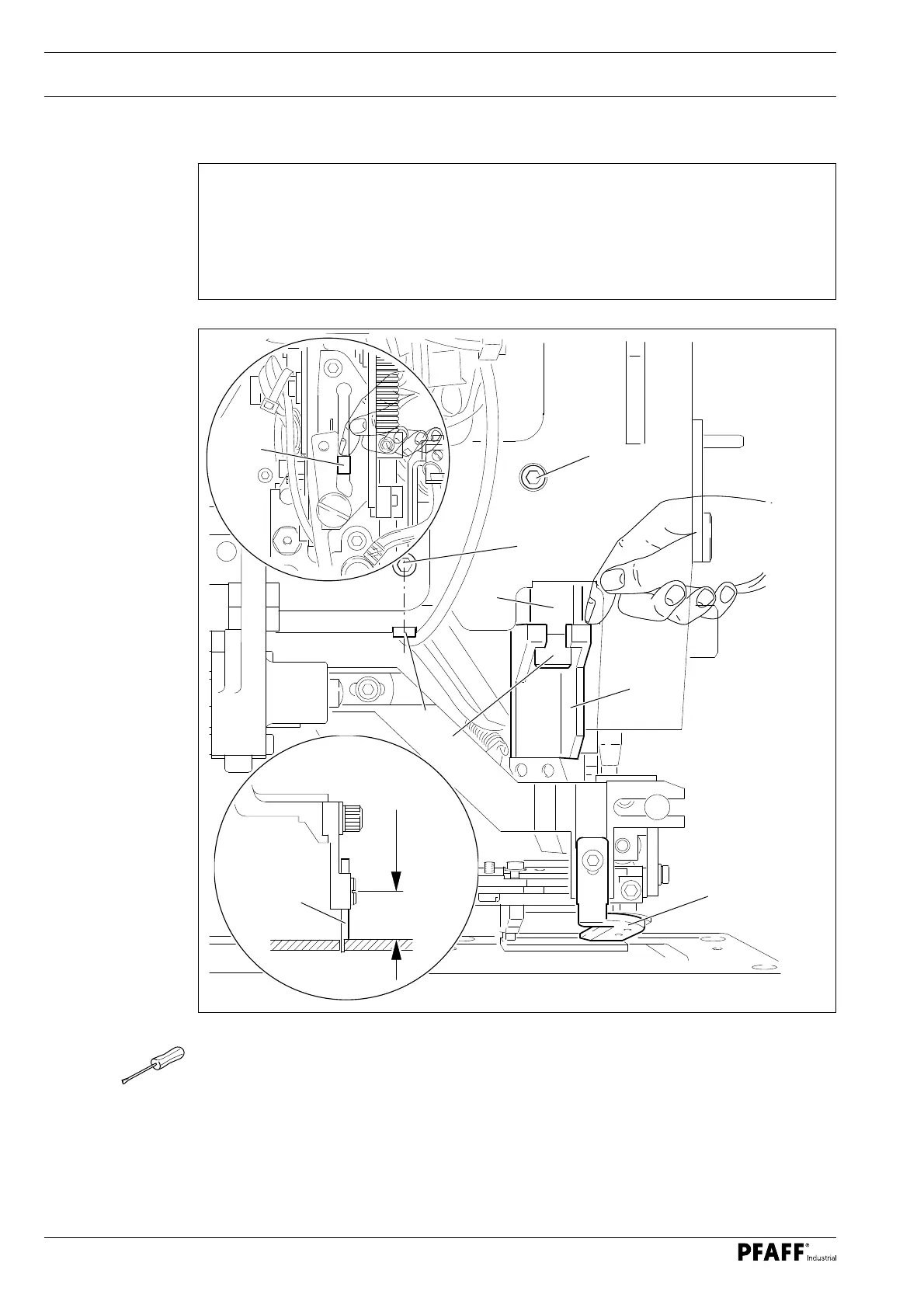

13.22 Position of the knife bracket and lower knife stop
Requirement
1. Knife bracket 5 should be adjusted so that adjustment gauge 2 is parallel and
2. in the centre of the knife slot.
3. When the knife cylinder is extended, screw 4 should be accessible through the hole in
the machine case and adjustment gauge 2 should be touching the needle plate insert.
● Bring the machine into its basic position and disengage needle thread cutter 1.
● Fit adjustment gauge 2 ( Part no. 61-111 635-85 ).
● Twist knife bar 3 ( screw 4 ) according to requirement 1.
● Adjust knife bracket 5 ( screw 6 ) according to requirement 2.
● Loosen screw 7 and turn stop screw 8 back a few turns.
● Push down guide unit 9 by hand, until screw 4 becomes accessible through the hole in
the machine case, and adjust knife bar 3 ( screw 4 ) according to requirement 3.
