Adjustment

120

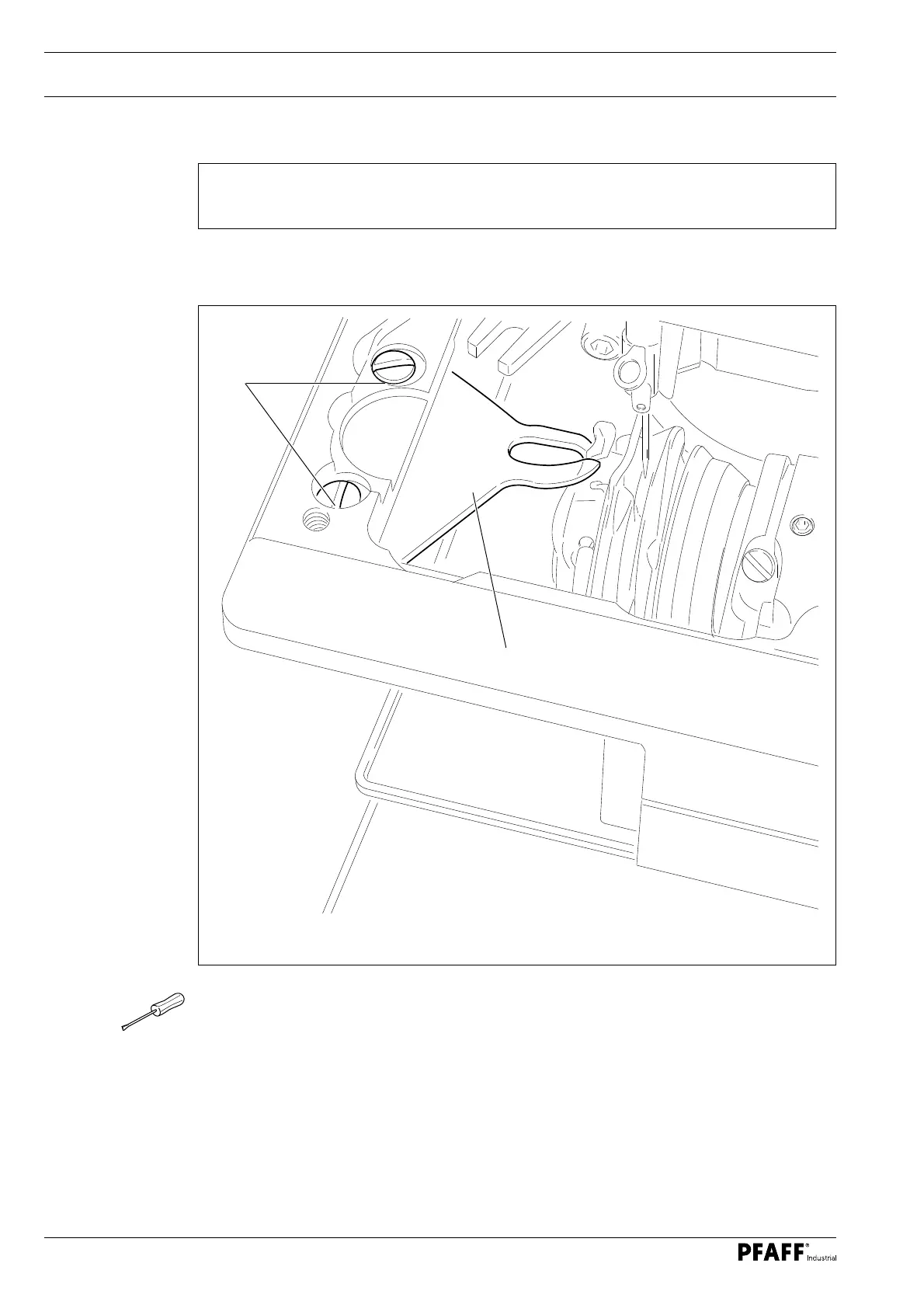

Fig. 13 - 35

13.38 Bobbin case holder

Requirement

The bobbin case holder should be scarcely but reliably held.

● Adjust bobbin case holder 1 ( screws 2 ) according to the requirement.

● Move the needle plate against the stop and screw tight.
