Adjustment
90
13.11 Position of the needle plate in relation to the needle
Requirement
Needle plate base 3 should rest on the edge of the bed-plate cutout ( see arrows ). Seen in
the direction of sewing the needle should enter the needle hole in the centre.

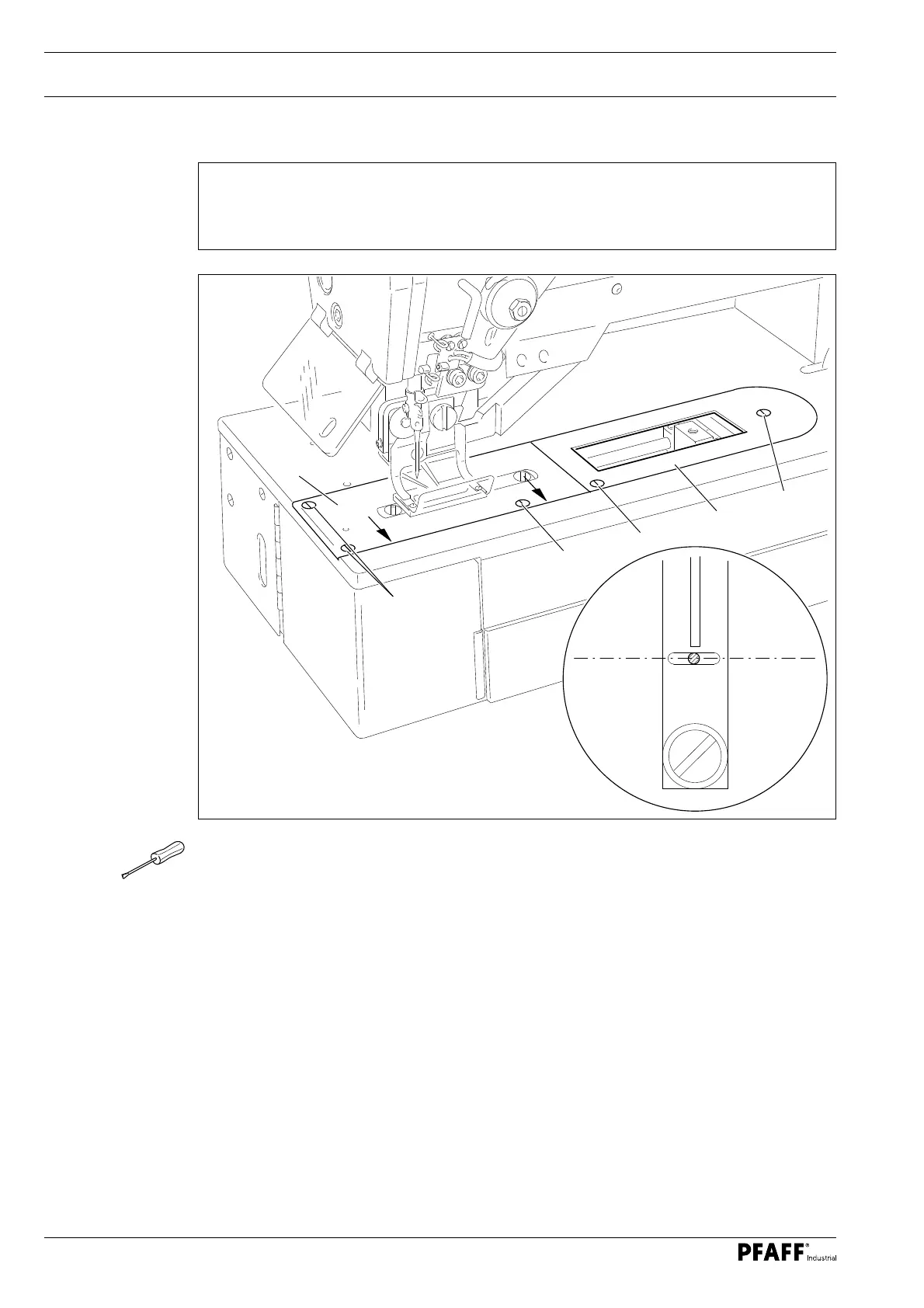

Fig. 13 - 08
57-056a
1
2
1
2
3
4
● Dismount feeder and insert a new needle.
● Loosen screws 1 and 2.
● Adjust needle plate base 3 according to the requirements.
● Tighten screws 2.
● Bring stop plate 4 into contact with needle plate base 3 and tighten screws 1.
