Setting up
32
Through hole 3 it is possible to check, whether needle 2 has been inserted as
far as possible.
By inserting suitable tools in hole 3, broken needles can be driven out.
9 Setting up
All instructions and regulations in this instruction manual must be observed.
Special attention must be given to all safety regulations!
All setting-up work must only be done by personnel with the necessary
training. For all setting-up work the machine must be isolated from its power
supply by turning off the on/off switch or removing the machine plug from the
electric power socket!
9.01 Inserting the needle
Switch off the machine!
Mechanically lock the knife
using the knife engagement
prevention lever! Danger of in-
jury from the needle and
the knife!
Only use needles from the sys-
tem intended for the machine,
see Chapter 3 Specifi cations.
Loosen screw ● 1.
Insert needle ● 2 as far as possible and
with the long needle groove pointing in
the direction of the knife.
Tighten screw ● 1.

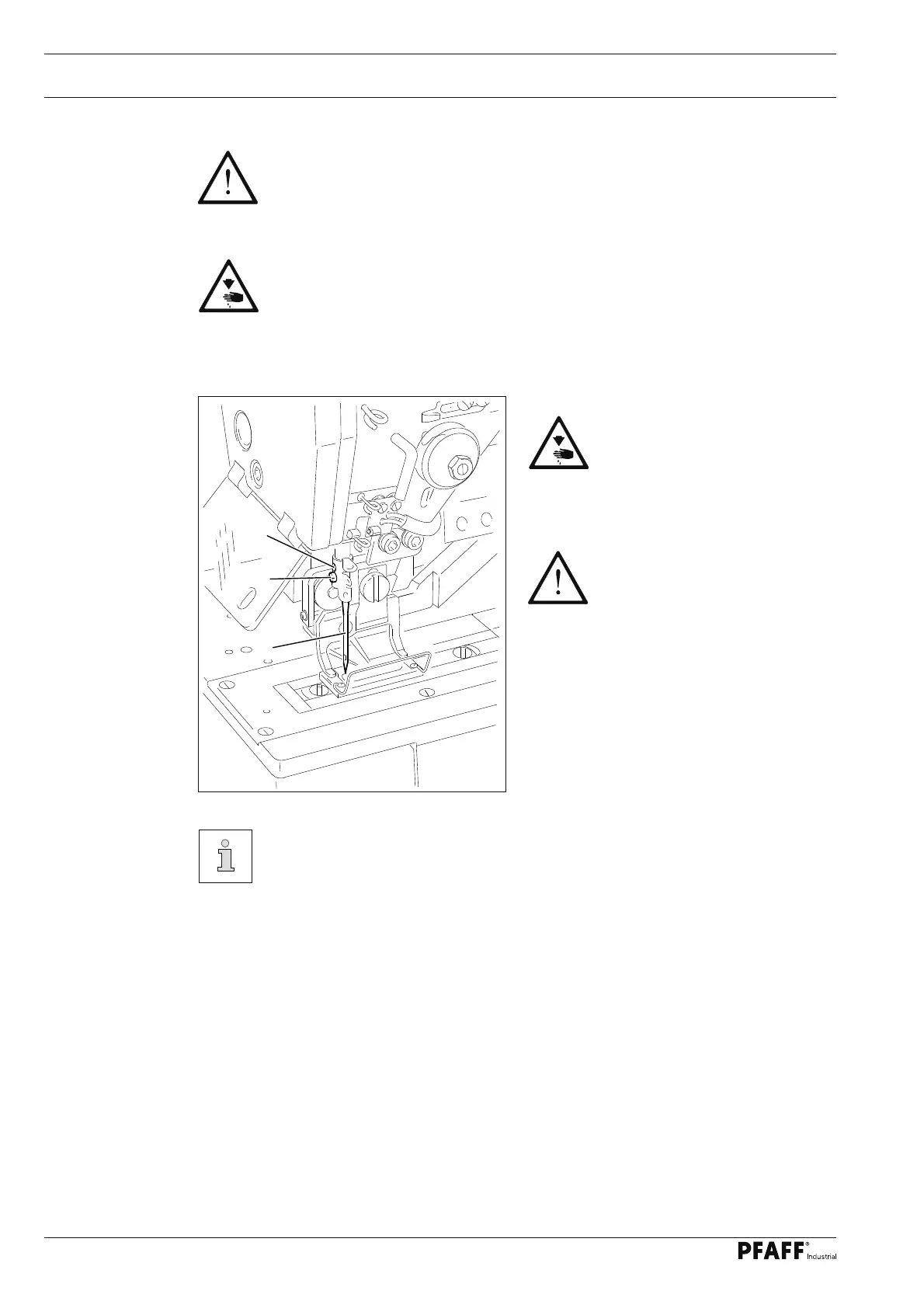

Fig. 9 - 01
1
2
3
