8 Mounting and commissioning the machine
The machine must only be mounted and commissioned by qualifi ed personnel!
All relevant safety regulations are to be observed!
If the machine is delivered without a table, be sure that the frame and the table
top which you intend to use can hold the weight of the machine and the motor.
It must be ensured that the supporting structure is suffi ciently sturdy, even du-
ring sewing operations.
8.01 Installation
The site where the machine is installed must be provided with suitable connections for the
electric current, see Chapter 3 Specifi cations.
It must also be ensured that the standing surface of the machine site is fi rm and horizontal,
and that suffi cient lighting is provided.
8.01.01 Adjusting the table height
For packing reasons the table top is in the lowered position. The table height is
adjusted as described below..
Loosen screws ● 1 and 2 and set the table height as required.
Firmly tighten screw ● 1.
Set the required pedal position and tighten screws ● 2.

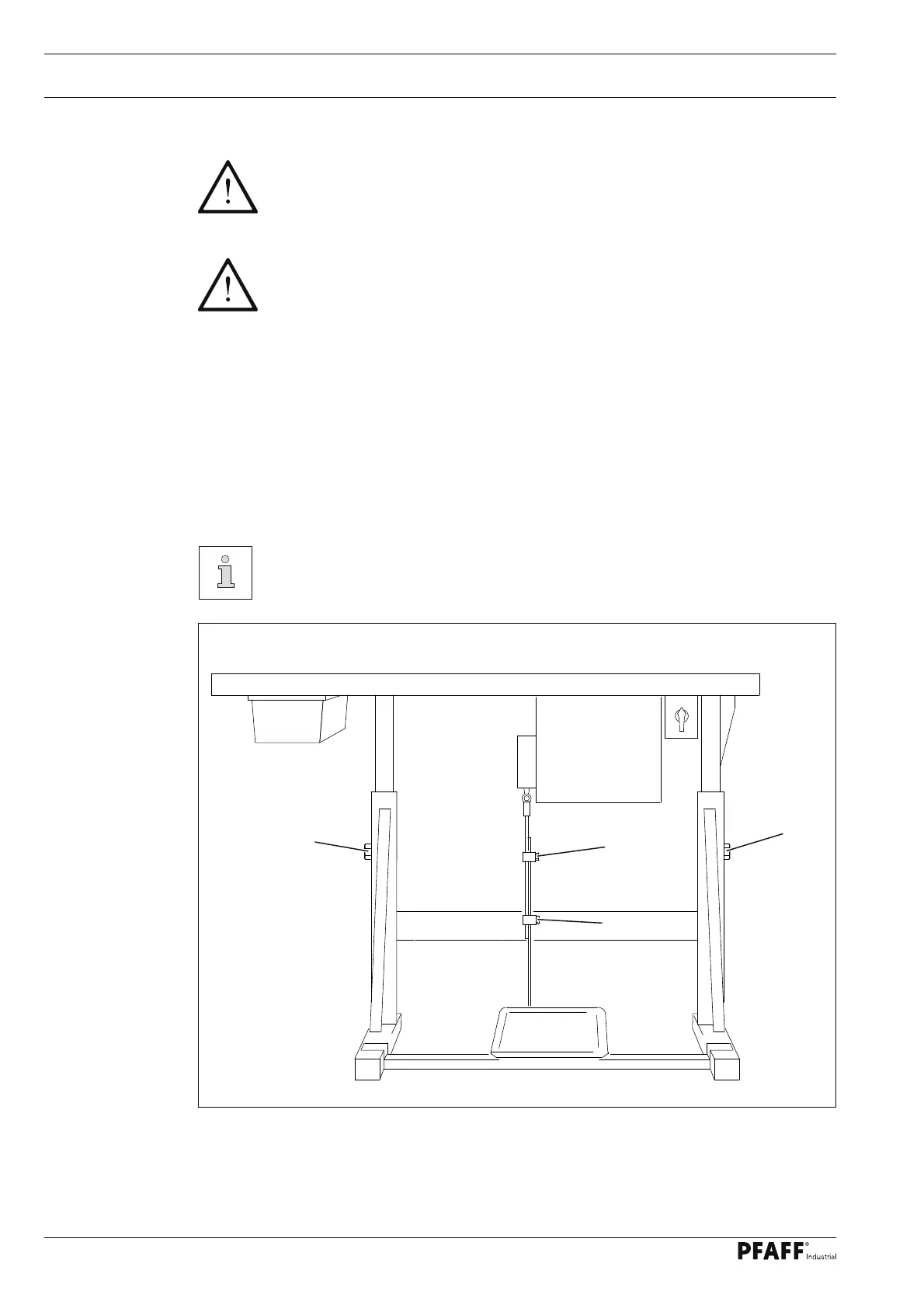

Fig. 8 - 01
56-058
1
2
1
2
