Pfaff 3119

To Next Page

To Previous Page

Adjustment

56-052

83-043

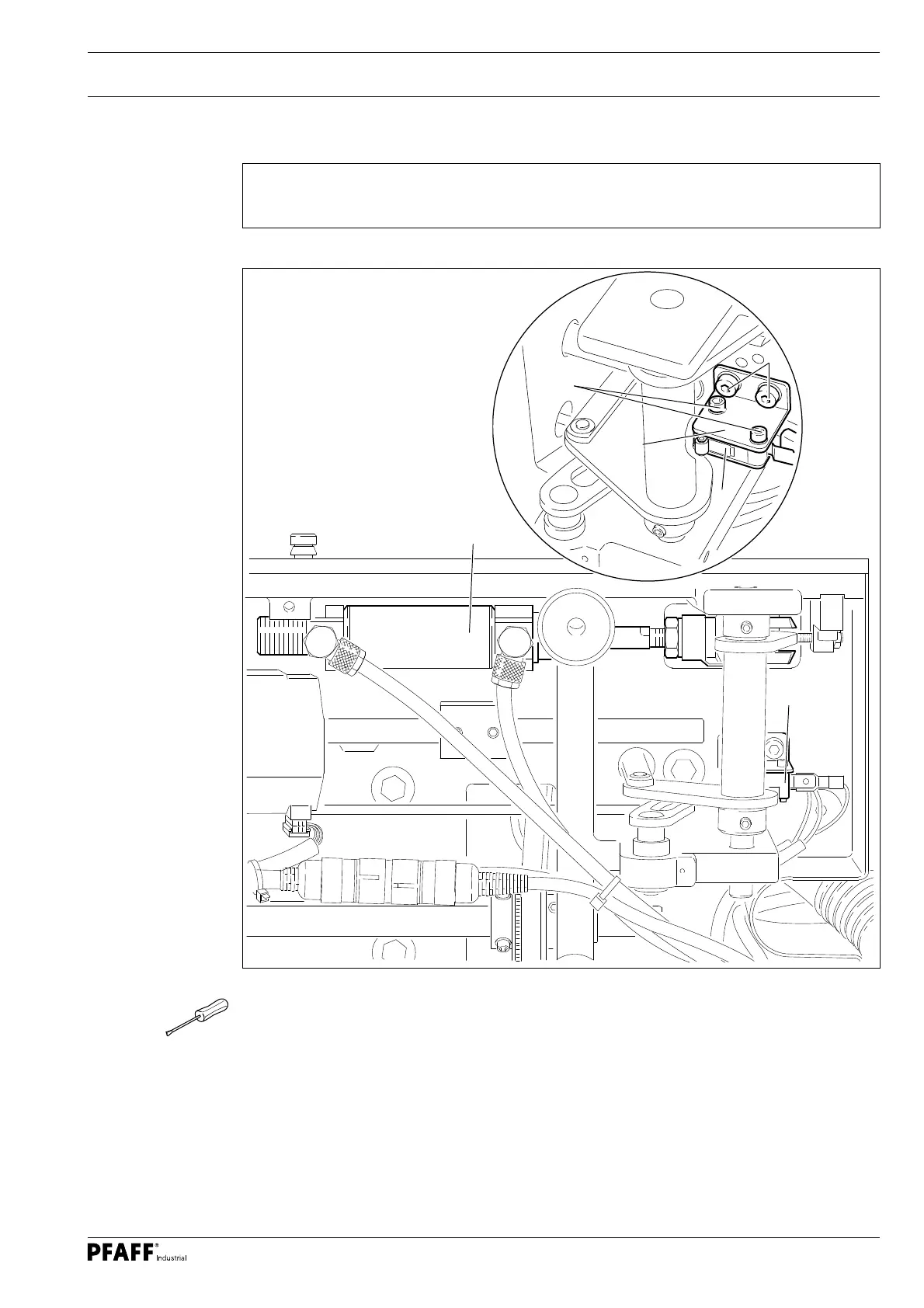

Fig. 13 - 03

.06 Switch for sewing start

Requirement

When cylinder 5 is fully extended, switch 1 should be operated.

● Adjust switch 1 or bracket 2 ( screws 3 or 4 ) according to the requirement.
