Controls
18

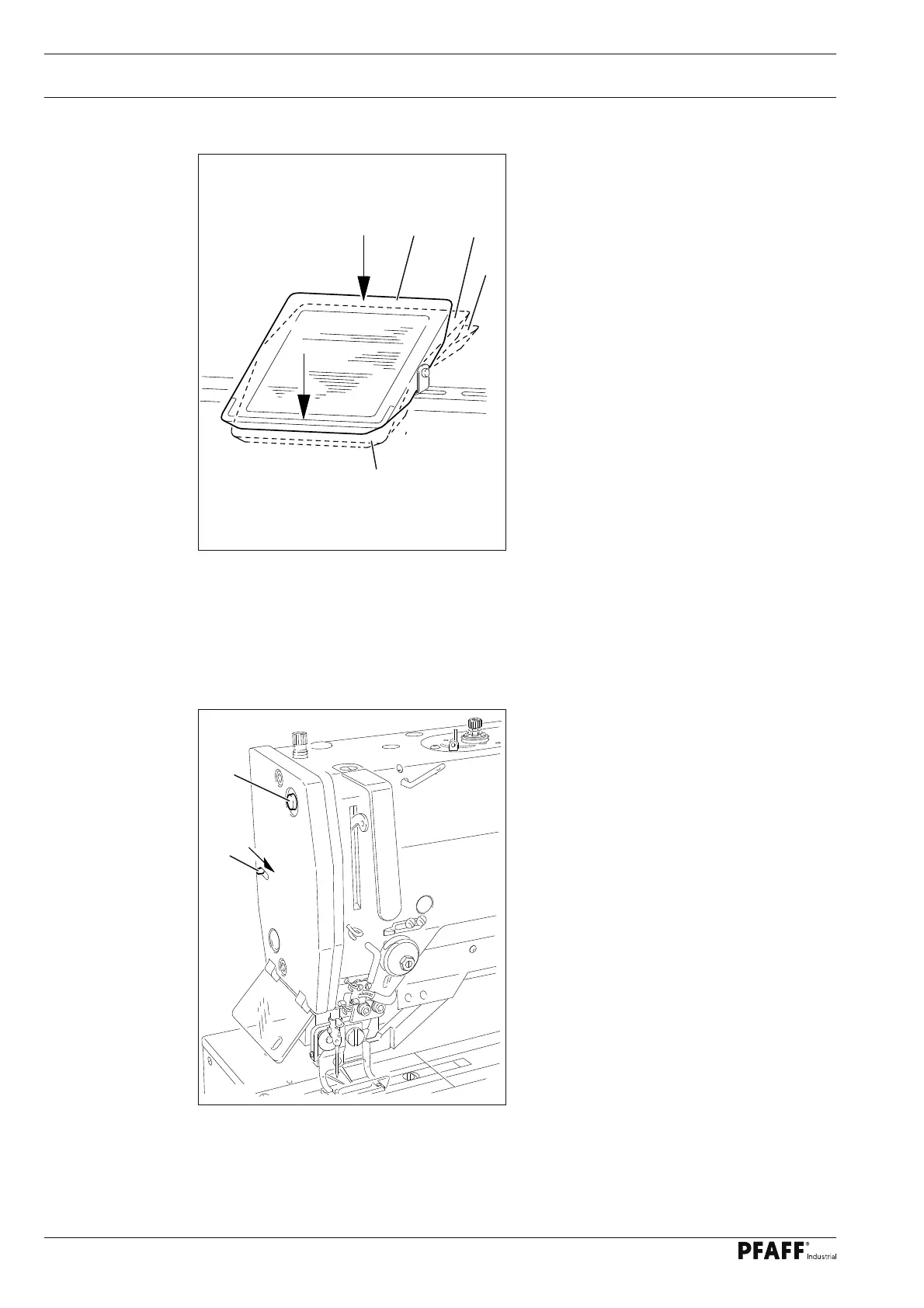

Fig. 7 - 03
7.03 Pedal
-1 = Prevent knife engagement at end of
current sewing cycle
0 = Neutral position
+1 = Work clamp lowered
+2 = Sewing
113-005
0
-1
+1
+2
83-005
Fig. 7 - 04
7.04 Preventing knife engagement
By operating push button ● 1, knife enga-
gement at the end of the current sewing
cycle is prevented.
By moving lever ● 2 in the direction of the
arrow, the knife is mechanically locked.
This prevents knife engagement during
setting-up, maintenance and adjustment
work.
1
2
