Mounting and commissioning the machine
30
83-060
8.04 Setting up the machine control unit
After the initial machine start up, fi rst of all the allocation of the machine control unit to the
machine sub-class being used must be checked and adjusted if necessary.
8.04.01 Establishing the sub-class
Measure the size of the cut-out in the ●
work clamp 1.
With the cut-out size and the aid of the ●
following table, the sub-class and the pa-
rameter value "202" can be established.
How to set parameter " ● 202" is descri-
bed in Chapter 8.04 Setting parameter
"202".

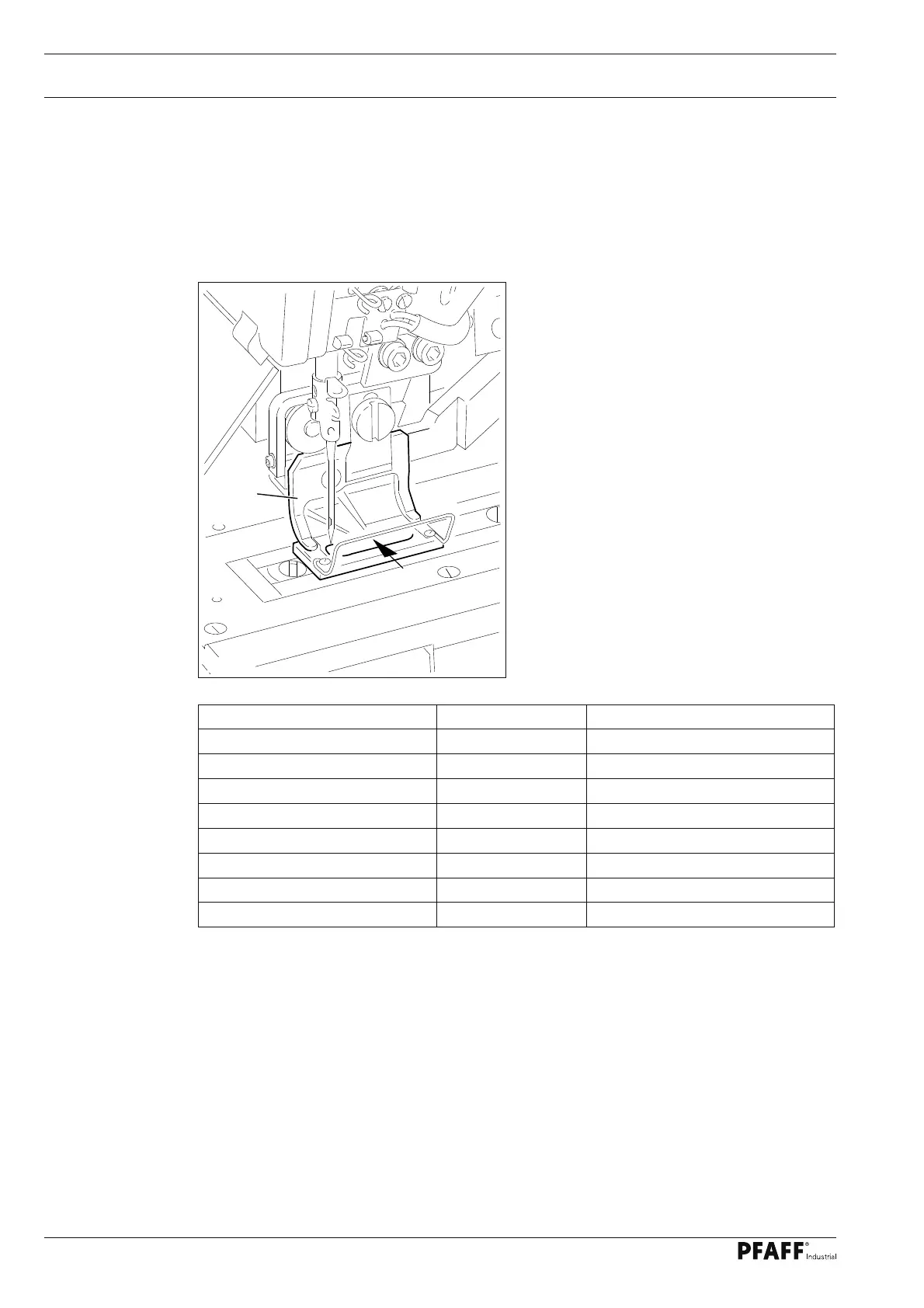

Fig. 8 - 05
1
Work clamp cut-out Sub-class Value for parameter "202"
30,0 x 5,6 3119-1/51, -1/52 1
40,0 x 5,6 3119-2/51 2
44,0 x 6,0 3119-2/62 2
40,0 x 6,7 3119-2/53 3
44,0 x 7,0 3119-2/63 3
46,0 x 6,7 3119-3/51 4
55,0 x 7,0 3119-4/51 5
77,0 x 7,0 3119-5/51 6
