Pfaff 3119

Adjustment
86

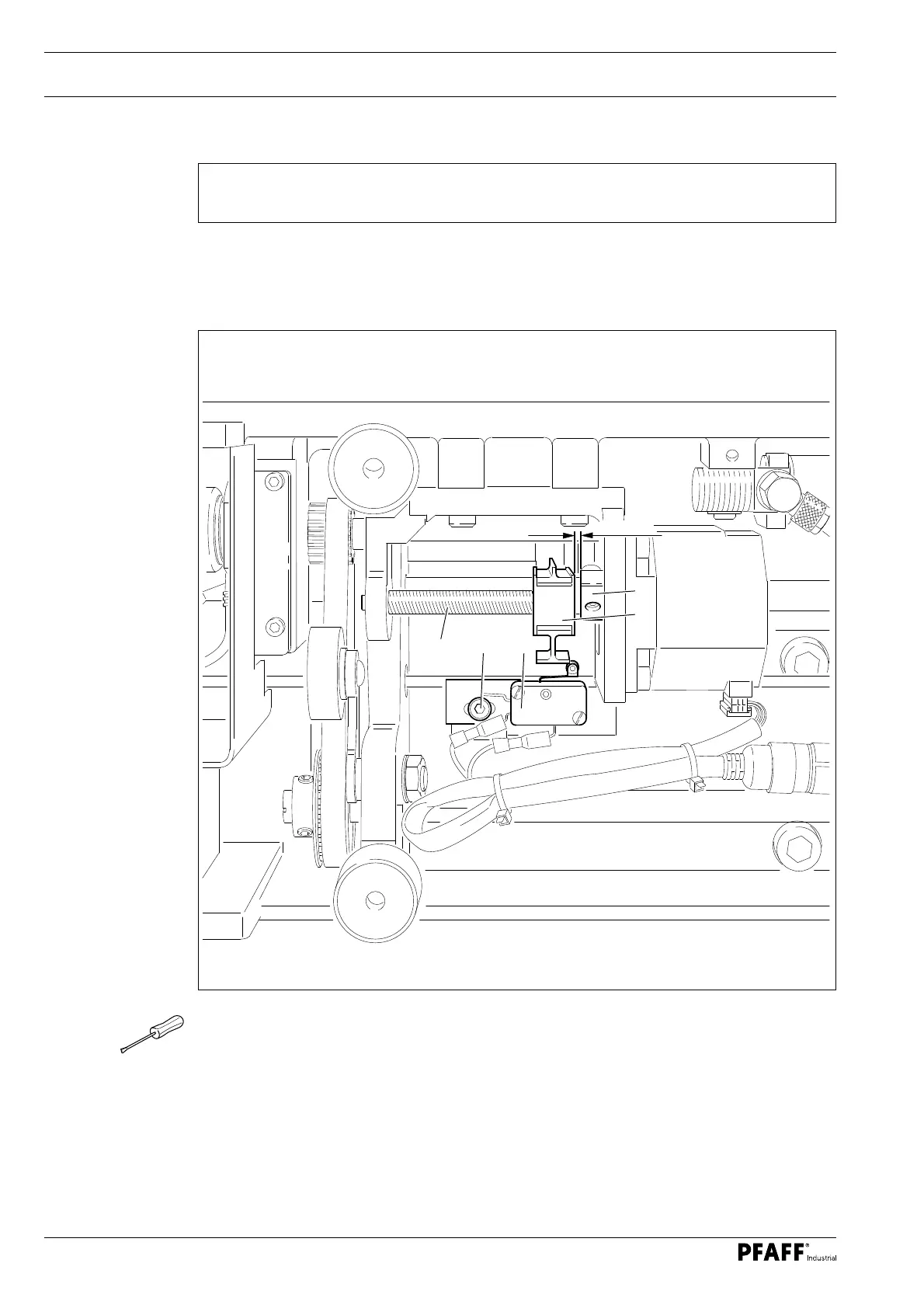

Fig. 13 - 04
3
5
2
4
1,6 mm
1
13
.07 Basic position of the feed drive unit
Requirement
Switch 2 should operate when slide block 4 is 1.6 mm away from clamp 5.
● Set the distance of 1.6 mm by turning spindle 1.
● Adjust switch 2 ( screw 3 ) according to the requirement.
