Adjustment
83
13
.04
Toothed belts of the hook drive unit
Requirement
Tensioner
1
should lightly touch the toothed belt.
●
Loosen the machine’s screw connection to the table.
●
Tilt the machine backwards and dismount the pan.
●
Adjust tensioner
1
( nut
2
) according to the
requirement
.
If there are operational noises, repeat the adjustment.

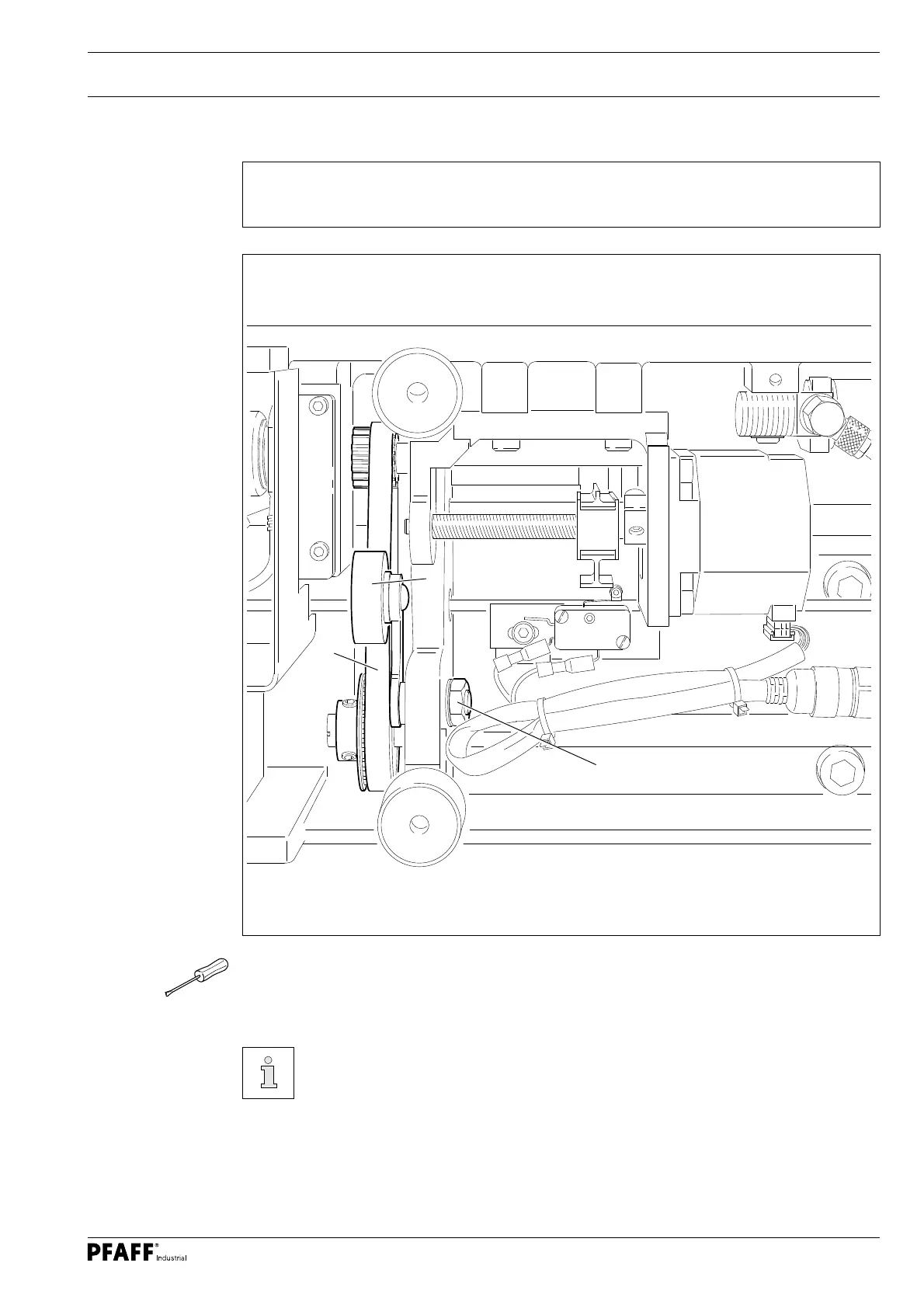

Fig. 13 - 01
1
3
2
82
84
