Adjustment
115
115-016

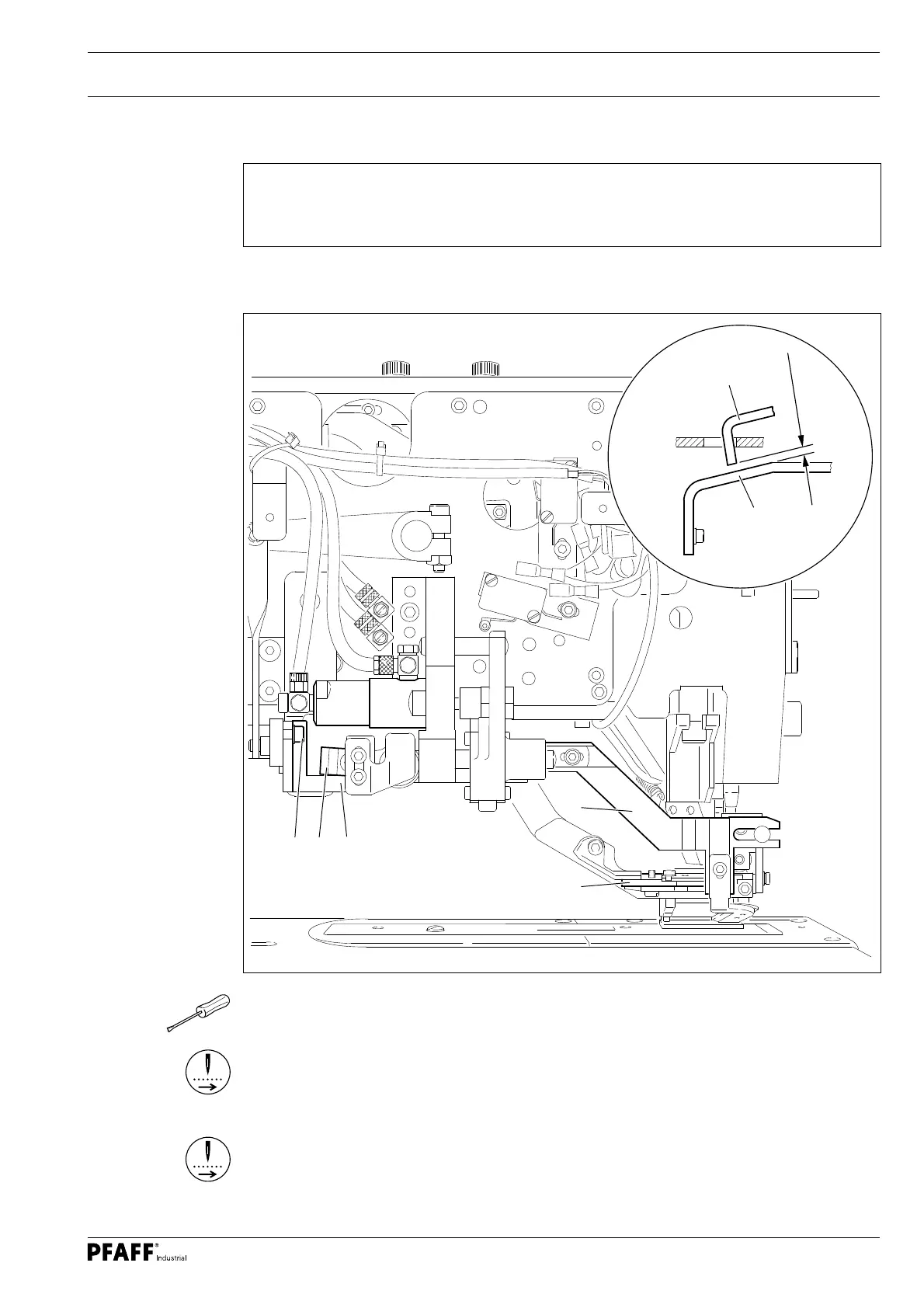

Fig. 13 - 30
34 6
1
2
0,2 mm
3
6
13
.34 Catch
Requirement
When the cutter frame 1 is at the highest point of the cam guide unit 2, there should be a
space of 0.2 mm between catch 3 and pawl 6.
● Connect the machine to the compressed air system and switch on the machine.
● Tact through the seam until the cutter frame 1 is at the highest point of the cam guide
unit 2.
● Adjust catch 3 ( screw 4 ) according to the requirement.
● Move the machine further until reaching the basic position.
● Switch off the on/off switch and disconnect the machine from the compressed air system.
