12.08 Check oil level for the compressor
Check the oil level of the compressor as described in the enclosed instruction manual of ●
the manufacturer, and if necessary top up oil.
83-015

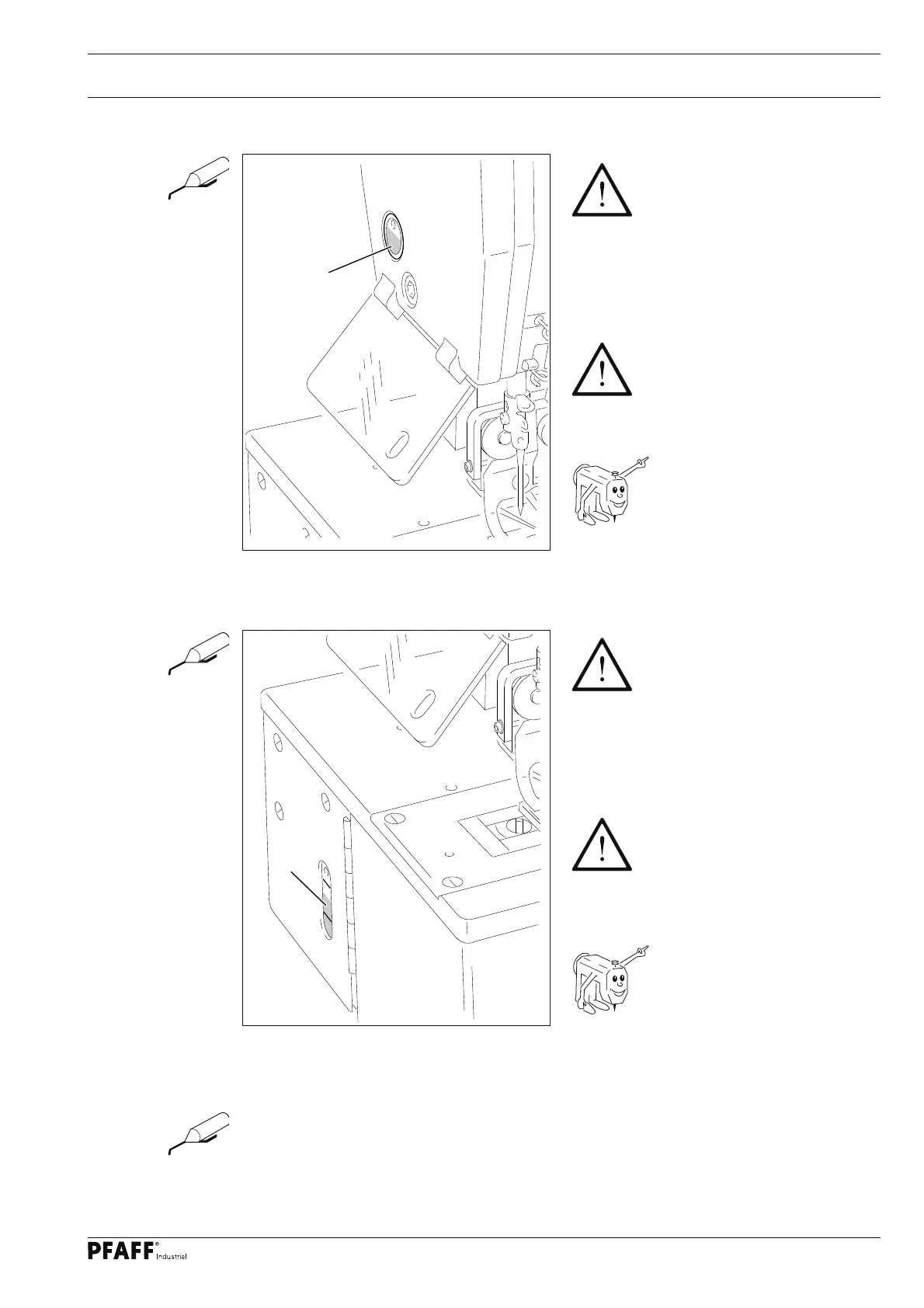

12.06 Check oil level for needle drive unit
There must always be oil in the
storage tank.
If necessary top up oil through hole ● 1 in
the sight glass.
Only use oil with a medium vis-
cosity of 10.00 mm
2
/s at 40ºC
and a density of 0.847 g/cm
3
at
15ºC.
We recommend PFAFF sewing
machine oil, part no.
280-1-120 105.
Fig. 12 - 04
1
12.07 Check oil level for the hook
The oil level in sight glass 1
must always be between the
two markings.
If necessary top up oil through hole ● 1 in
the sight glass.
Only use oil with a medium vis-
cosity of 10.00 mm
3
/s at 40ºC
and a density of 0.847 g/cm
3
at
15ºC.
We recommend PFAFF sewing
machine oil,
part no.280-1-120 105.
Fig. 12 - 05
1
