Pfaff 3119 User Manual

Adjustment
117

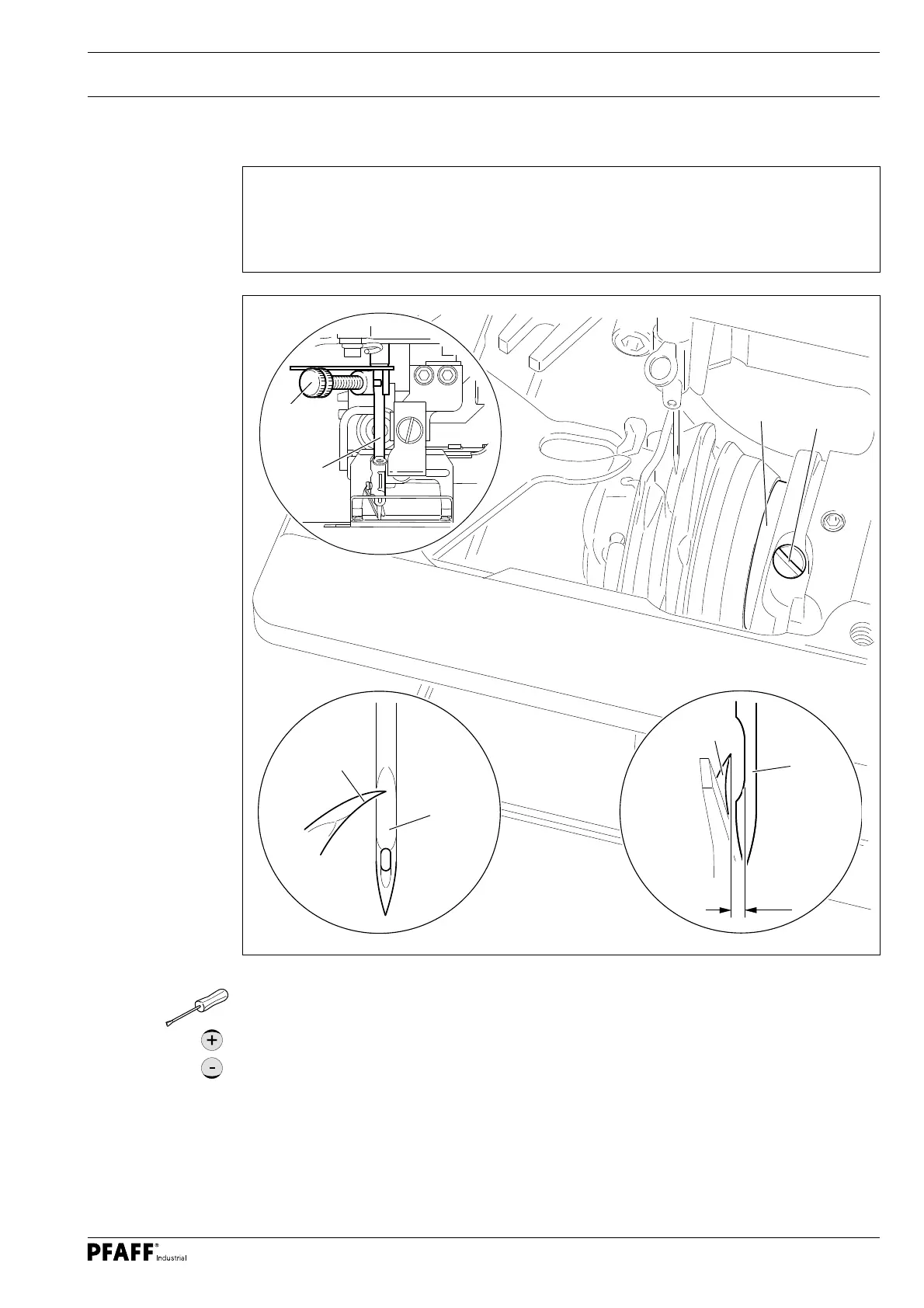

Fig. 13 - 32
1
2
3
4
56-070b
0,1 mm
6
5
56-070a
5
6
13.36 Needle bar rise and hook-to-needle clearance
Requirement
When the needle penetrates the right side of the left seam, the needle bar rise should be
2.4 mm. In this position, the point 5 of the hook should be exactly in the centre of the
needle 6 and there should be a clearance of 0.1 mm between the needle and the hook point.
● Dismantle the feeder, needle plate and knife.
● Switch on the machine.
● Select parameter "610".
● Disengage the needle thread cutter by hand.
● Select position "1" ( left seam, right penetration point ).
● Bring the needle to b.d.c.
● Fit screw clamp 1 ( Part no. 61-111 600-35/001 ) to needle bar 2.
● Bring 2.4 mm needle rise gauge ( Part no. 61-111 600-09 ) between the screw clamp 1
and the guide stop of the needle bar 2.
