Pfaff 3119

To Next Page

To Previous Page

Adjustment

112

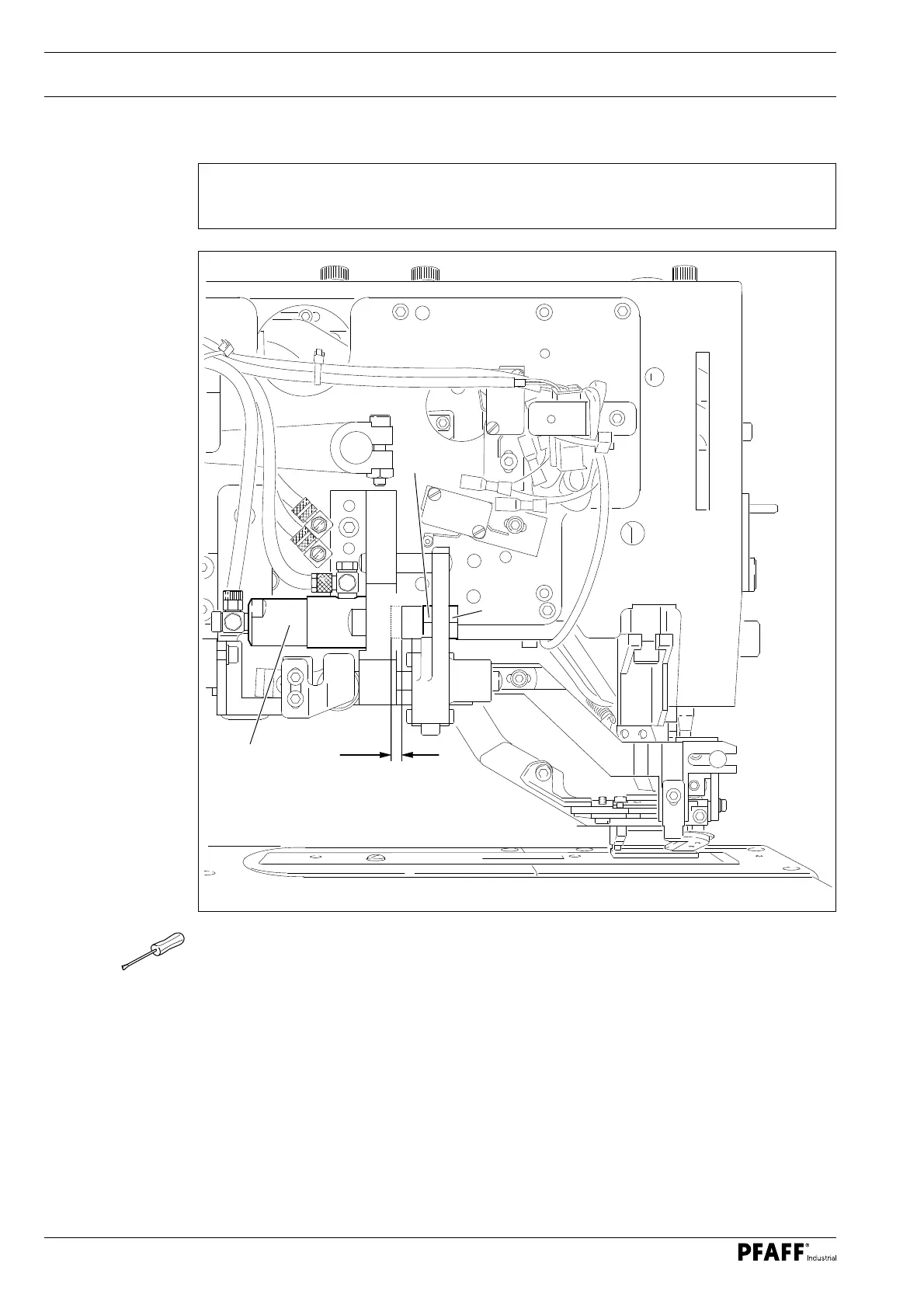

Fig. 13 - 27

115-013

4,5 mm

.31 Needle thread cutter stroke

Requirement

The stroke length between the extended and retracted cutter cylinder 3 should be 4.5 mm.

● Adjust nut 1 ( locking nut 2 ) according to the requirement.
