8.01.06 Fitting the reel stand

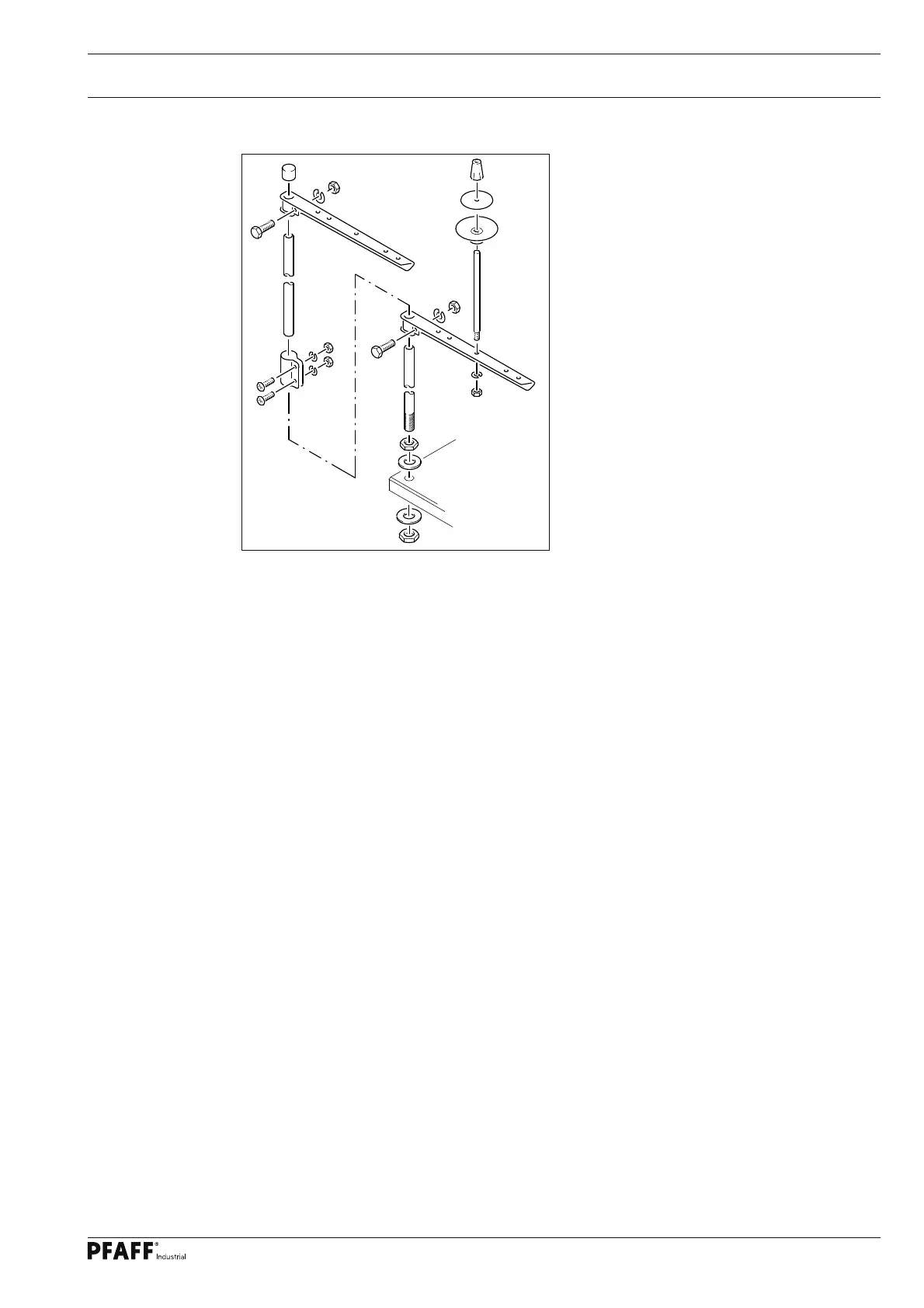

Fit the reel stand as shown in Fig. ● 8 - 04.
Afterwards insert the stand in the hole in ●
the table top and secure it with nuts pro-
vided.
Fig. 8 - 04
8.02 Commissioning
Clean the machine thoroughly and then check the oil level ( see Chapter ● 12 Care and
Maintenance ).
Check the machine, in particular the electric leads and pneumatic connection tubes, for ●
any damage.
Have mechanics ensure that the machine’s motor can be operated with the available ●
electricity supply.
Connect the machine to the compressed air system. The manometer should show a ●
pressure of 6 bar.
If necessary, set this value ( see Chapter ● 12.05 Checking / adjusting the air pressure ).
8.03 Switching the machine on / off
Switch the machine on or off ( see Chapter ● 7.01 Main switch ).
Setting up the machine control unit, see Chapter ● 8.04 Setting up the machine control
unit.
