Pfaff 3119 User Manual

Adjustment
108
83-047

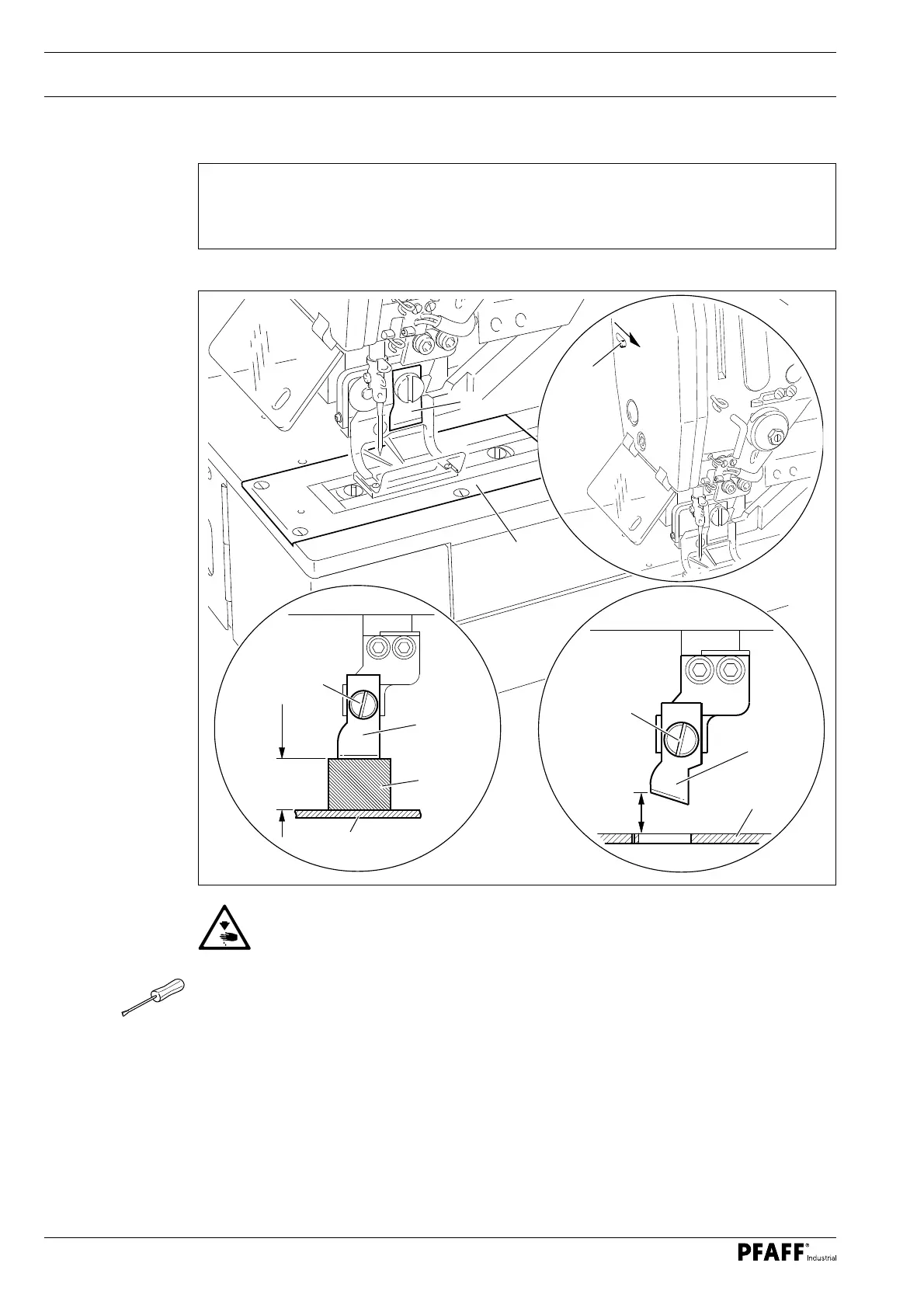

13.27 Changing the knife / knife height
Requirement
When the punching or cutting device is in its neutral position, knife 2 should be 23 mm
(punching device) or 22 mm (cutting device) away from needle plate 6.
Fig. 13 - 23
Danger of injury from dropping knife!
Activate knife lock (move lever 1 in the direction of the arrow).
Changing the knife:
● Remove and replace knife 2 (screw 3).
● Check the knife length entered and adjust it if necessary, see Chapter 10.01.03 Entering
the knife length and cut overlap.
● Set the knife height as described below.
Knife height on machines with punching device:
● Adjust knife 2 (screw 3) according to the requirement with the aid of adjustment gauge 4
(Part no. 61-111 635-86).
Knife height on machines with cutting device:
● Adjust knife 5 (screw 3) according to the requirement.
56-061b
5
3
22 mm
56-061a
23 mm
2
3
4
6
6
83-034
1
6
2
