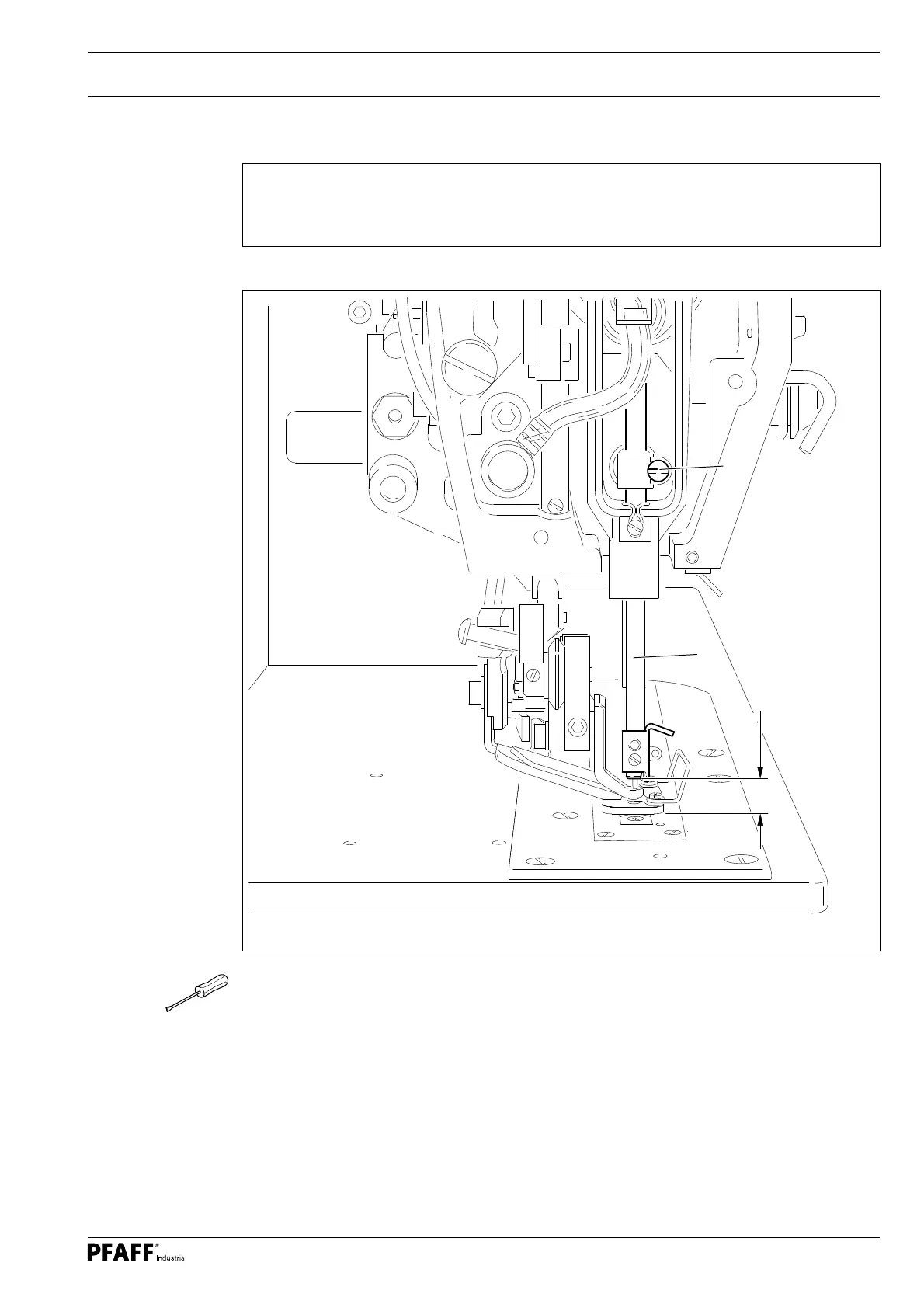

Adjustment
89
Fig. 13 - 07
13
.10
Preliminary adjustment of the needle height
Requirement
When the needle bar is at b.d.c. there should be a distance of
11 mm
between the lower
edge of the needle bar
1
and the needle plate.
●
Adjust needle bar
1
( screw
2
) according to the
requirement.
56-040
11 mm
1
2
88
90
