Planet GS-4210-16T2S User Manual

User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
174
4.7 Multicast
This section has the following items:
 Properties Configures multicast properties.
 IGMP Snooping Configures IGMP snooping settings.
 IGMP Snooping Statistics Display the IGMP snooping statistics.
 MLD Snooping Configures MLD snooping settings.
 MLD Snooping Statistics Display the MLD snooping statistics.

Multicast Throttling
Setting
Configures multicast throttling setting.
 Multicast Filter Configures multicast filter.
4.7.1 Properties
This page provides multicast properties related configuration.
The multicast Properties and Information screens in Figure 4-7-1 and Figure 4-7-2 appear.

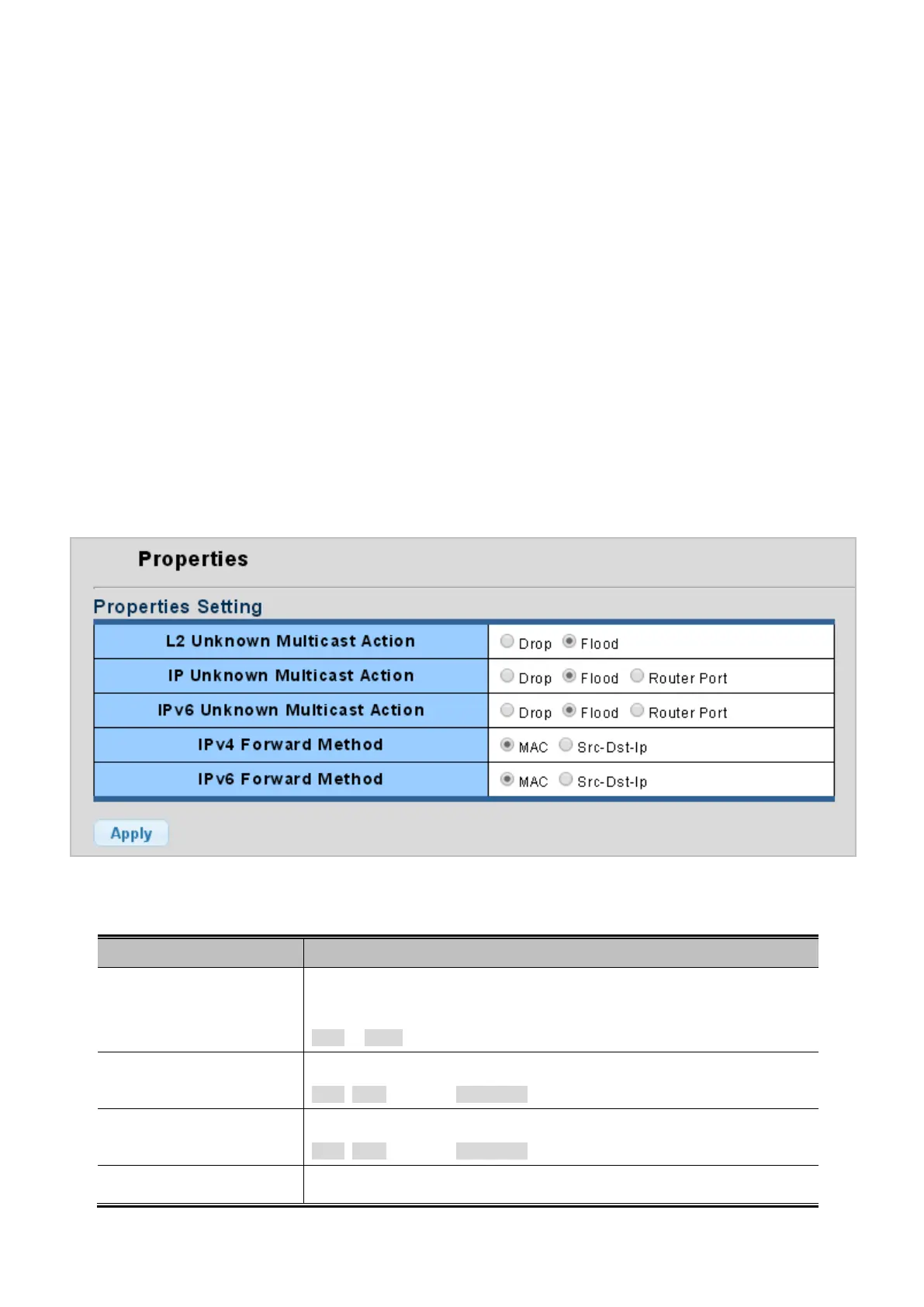

Figure 4-7-1: Properties Setting Page Screenshot
The page includes the following fields:
Object Description
• L2 Unknow Multicast
Action
Action for L2 unknown multicast traffic:
Options are:
Drop or flood.
• IP Unknown Multicast
Action
Action for IP unknown multicast traffic:
Drop, flood or send to router port.
• IPv6 Unknown Multicast
Action
Action for IP unknown IPv6 multicast traffic:
Drop, flood or send to router port.
• IPv4 Forward Method
Configure the IPv4 multicast fordward method.

Planet GS-4210-16T2S Specifications

General

Switch type	Managed
Switch layer	L2/L4
Quality of Service (QoS) support	Yes
Console port	RJ-45
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4094
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Stackable	-
Form factor	1U
Certification	FCC, CE
Product color	Blue
Housing material	Metal
Throughput	26.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4 / IPv6
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	10.4 W
Heat dissipation	35 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2000 g
