User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
367
4.14 Power over Ethernet (GS-4210-16P2S and GS-4210-24P2S only)
Providing up to 16/24 PoE, in-line power interfaces, the GS-4210-16P2S and GS-4210-24P2S PoE Managed Switch can easily
build a power central-controlled IP phone system, IP Camera system, AP group for the enterprise. For instance, 16/24
camera/AP can be easily installed around the corner in the company for surveillance demands or build a wireless roaming
environment in the office. Without the power-socket limitation, the GS-4210-16P2S and GS-4210-24P2S PoE Managed Switch
makes the installation of cameras or WLAN AP more easily and efficiently.
Use the PoE sub-menu items to configure the PoE function of the GS-4210-16P2S and GS-4210-24P2S PoE Managed Switch.
Under PoE sub-menu, the following topics are provided to configure and view the PoE Setting:
This section has the following items:
 PoE Global Setting
 PoE Port Setting
 PoE Delay Setting
4.14.1 PoE Global Setting

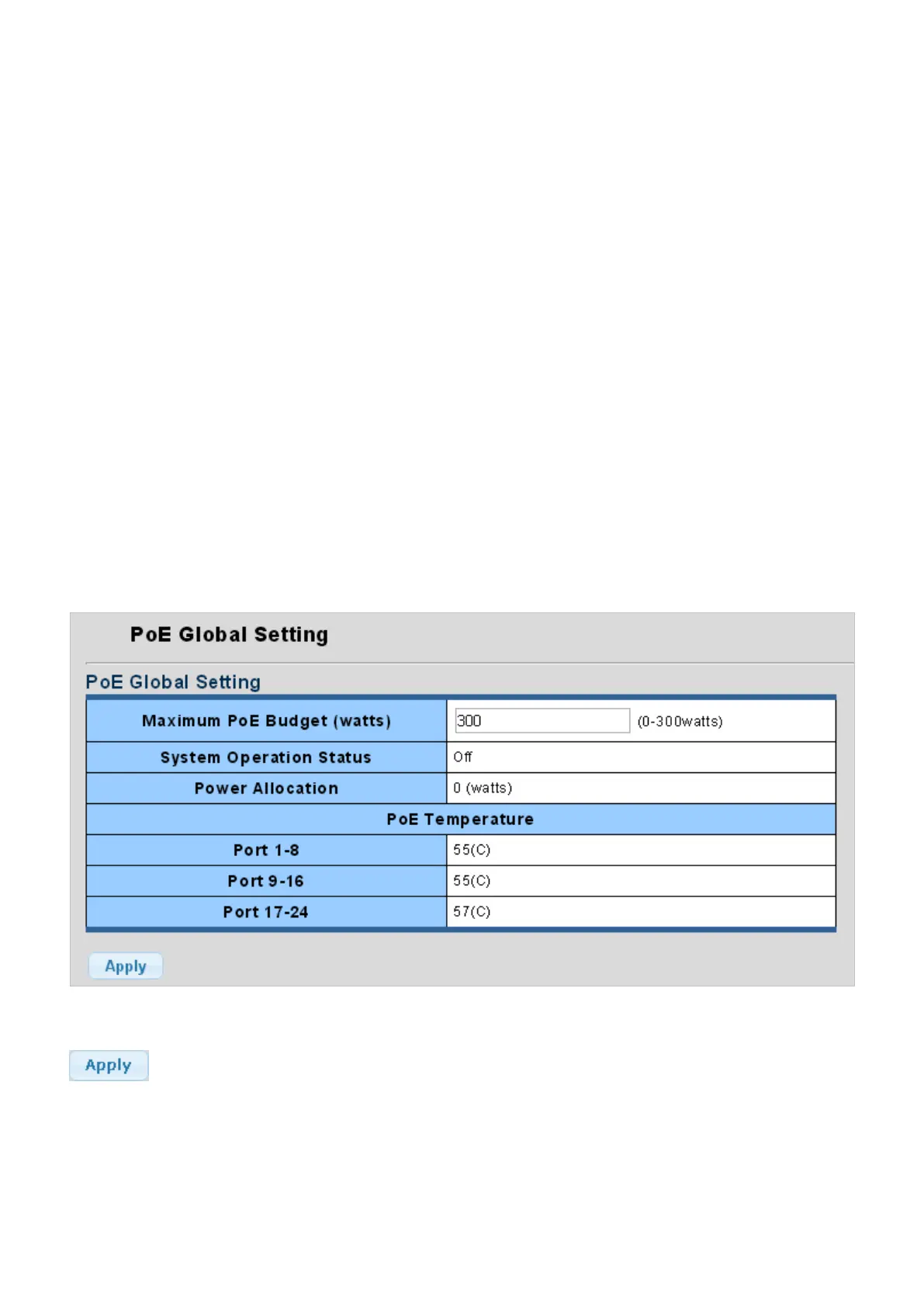

This page allows adjusting the PoE budget and viewing PoE operation status and PoE chipset temperature. The PoE Global
Setting screen in Figure 4-14-1 appears.
Figure 4-14-1: PoE Global Setting Page Screenshot
Button
: Click to apply changes.

Planet GS-4210-16T2S Specifications

General

Switch type	Managed
Switch layer	L2/L4
Quality of Service (QoS) support	Yes
Console port	RJ-45
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4094
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Stackable	-
Form factor	1U
Certification	FCC, CE
Product color	Blue
Housing material	Metal
Throughput	26.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4 / IPv6
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	10.4 W
Heat dissipation	35 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2000 g
