User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
The page includes the following fields:
Object Description
• Interface
The switch port number of the logical port.
• Toltal (Bytes)
Total number of bytes of LLDP information that is normally sent in a packet.
• Left to Send (Bytes)
Total number of available bytes that can also send LLDP information in a packet.
• Status
Gives the status of the TLVs.
• Mandatory TLVs
Displays if the mandatory group of TLVs were transmitted or overloaded.
• MED Capabilites
Displays if the capabilities packets were transmitted or overloaded.
• MED Location
Displays if the location packets were transmitted or overloaded.
• MED Network Policy
Displays if the network policies packets were transmitted or overloaded.
• MED Extended Power
via MDI
Displays if the extended power via MDI packets were transmitted or overloaded.
• 802.3 TLVs
Displays if the 802.3 TLVs were transmitted or overloaded.
• Optional TLVs
If the LLDP MED extended power via MDI packets were sent, or if they were
• MED Inventory
Displays if the mandatory group of TLVs was transmitted or overloaded.
• 802.1 TLVs
Displays if the 802.1 TLVs were transmitted or overloaded.
4.12.9 LLDP Statistics
Use the LLDP Device Statistics screen to general statistics for LLDP-capable devices attached to the switch, and for LLDP
protocol messages transmitted or received on all local interfaces. The LLDP Global and Port Statistics screens in Figure 4-12-25
and Figure 4-12-26 appear.

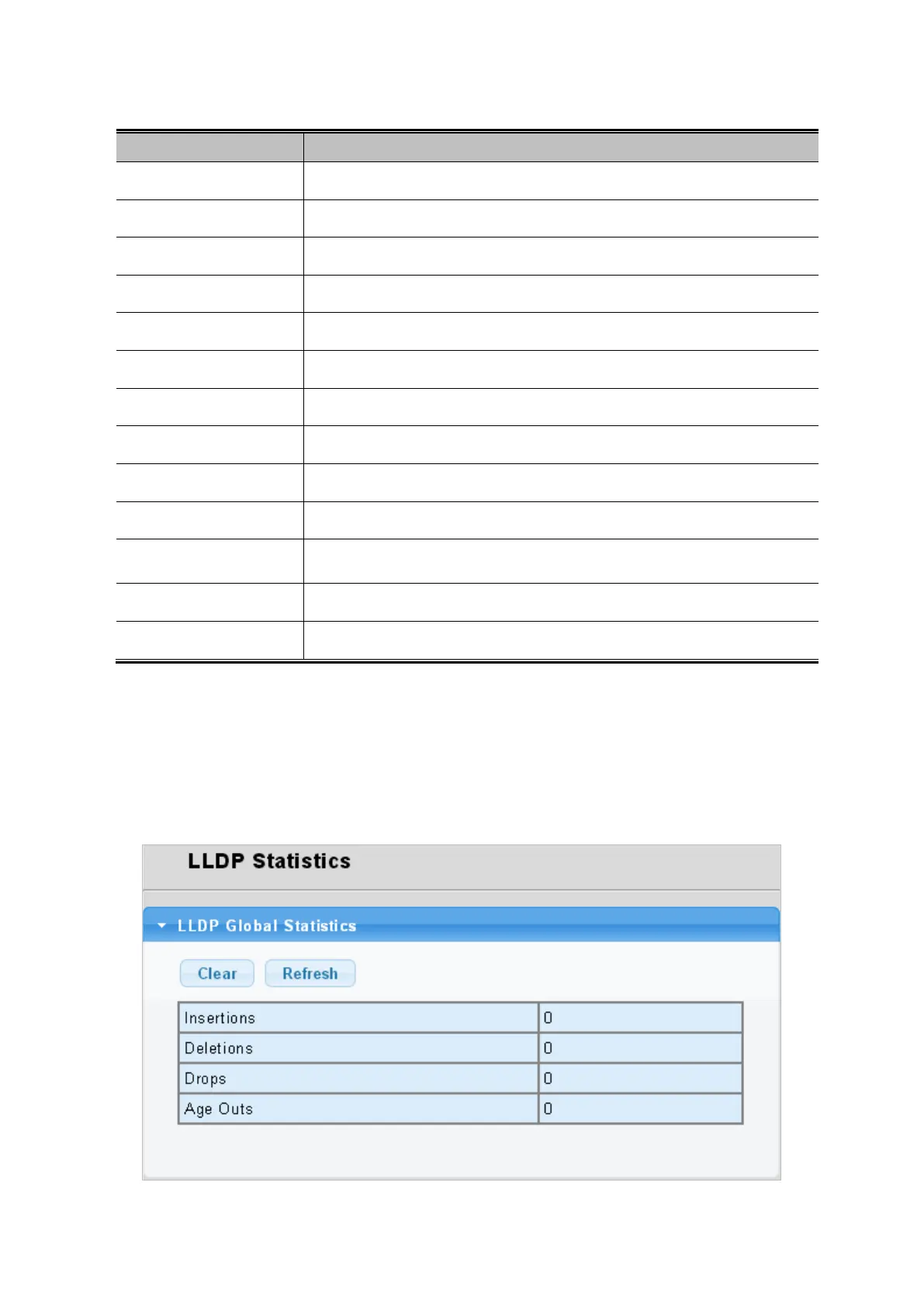

Figure 4-12-25: LLDP Global Statistics Page Screenshot
