The page includes the following fields:
Object Description
• Port
The switch port number of the logical port.
• Egress Rate Limit
(Kbps)
Display the current egress rate limit.
4.8.5.4 Egress Queue Settings

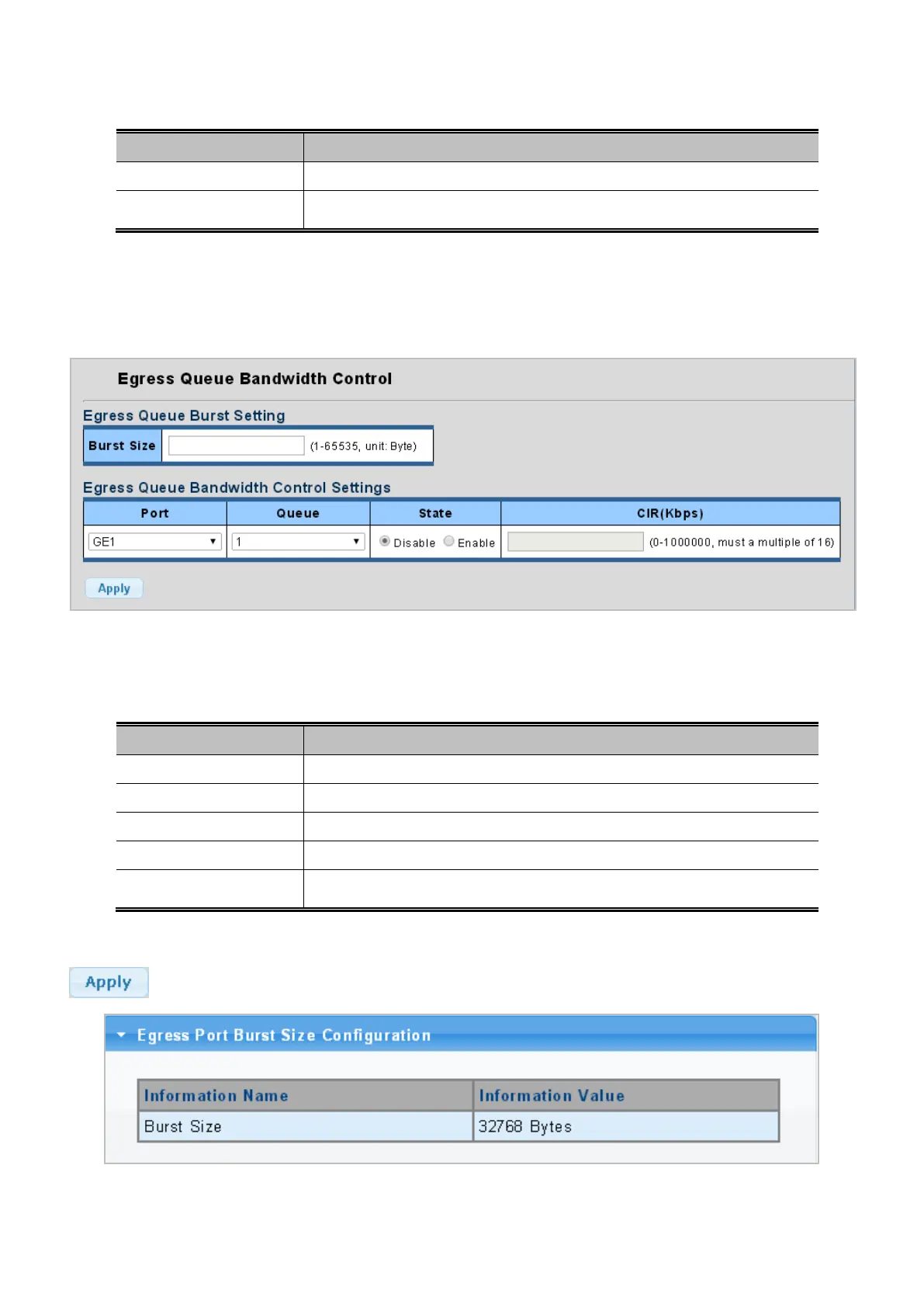

The Egress Queue Badwidth Control Settings and Status screens in Figure 4-8-37, Figure 4-8-38 and Figure 4-8-39 appear.
Figure 4-8-37: Egress Queue BandwidthSettings Page Screenshot
The page includes the following fields:
Object Description
• Burst Size
Allow assigning burst size and the options are 1 to 65535. Unit: Bytes.
• Port
Select port number for this drop down list.
• Queue
Select queue numbers for this drop down list, options are 1 to 8.
• State
Enable or disable the port rate policer. The default value is "Disabled".
• CIR (Kbps)
Configure the CIR for the port policer. The default value is "unlimited". Valid
values are in the range 0 to 1000000, must a multiple of 16.
Button
: Click to apply changes.
Figure 4-8-38: Egress Port Burst Size Configuration Page Screenshot
