4.7.7.2 IGMP Filter Setting

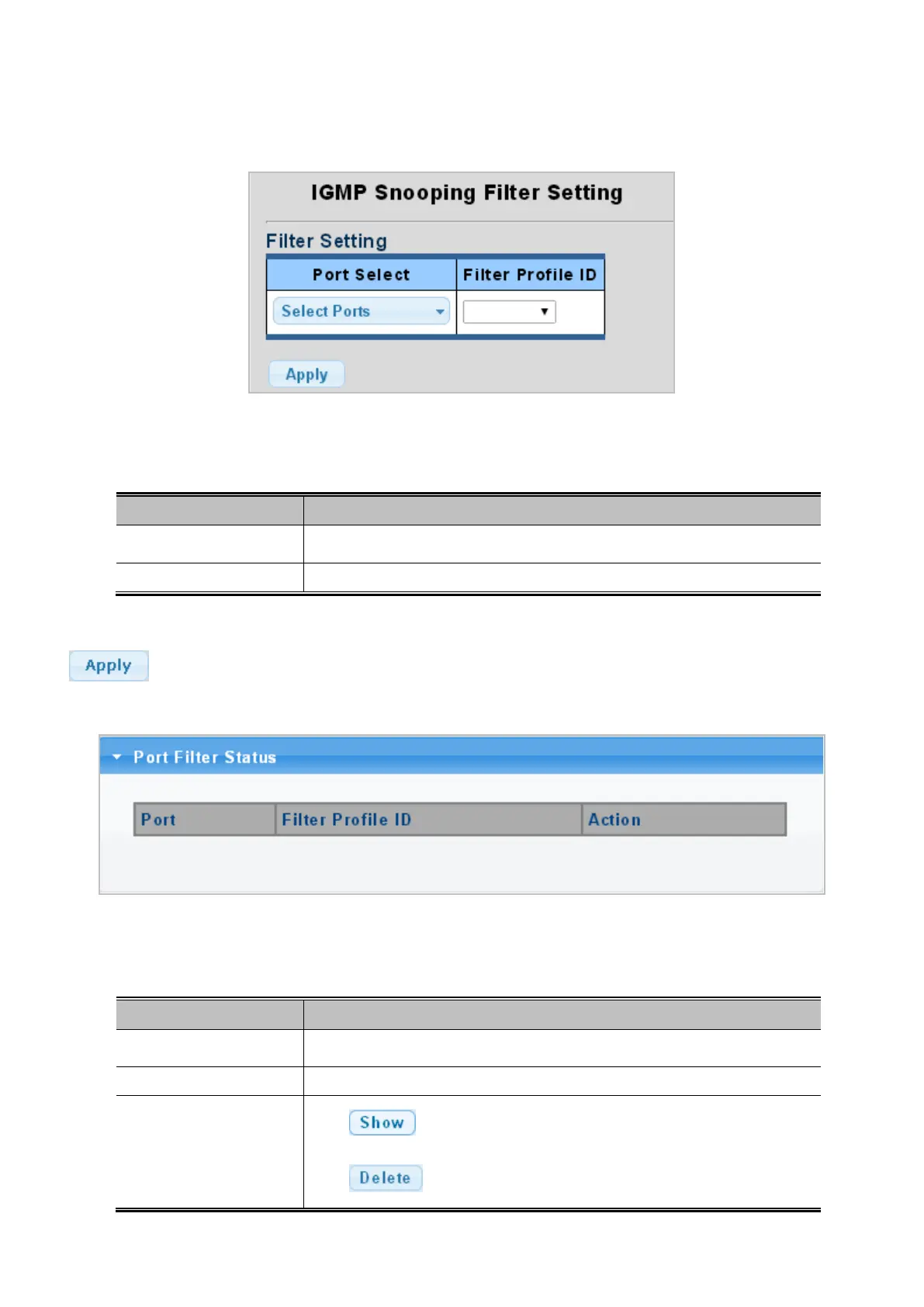

The Filter Setting and Status screens in Figure 4-7-39 and Figure 4-7-40 appear.
Figure 4-7-39: Filter Setting Page Screenshot
The page includes the following fields:
Object Description
• Port Select
Select port number for this drop down list.
• Filter Profile ID
Select filter profile ID for this drop down list.
Button
: Click to apply changes.
Figure 4-7-40: Port Filter Status Page Screenshot
The page includes the following fields:
Object Description
• Port
Display the current port
• Filter Profile ID
Display the current filter profile ID
• Action
Click
to display detail profile parameter.
Click to delete the IGMP filter profile entry.
