Planet GS-4210-16T2S User Manual

User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
195
4.7.4.3 MLD Group Table
This page provides MLD Group Table. The MLD Group Table screen in Figure 4-7-27 appears.

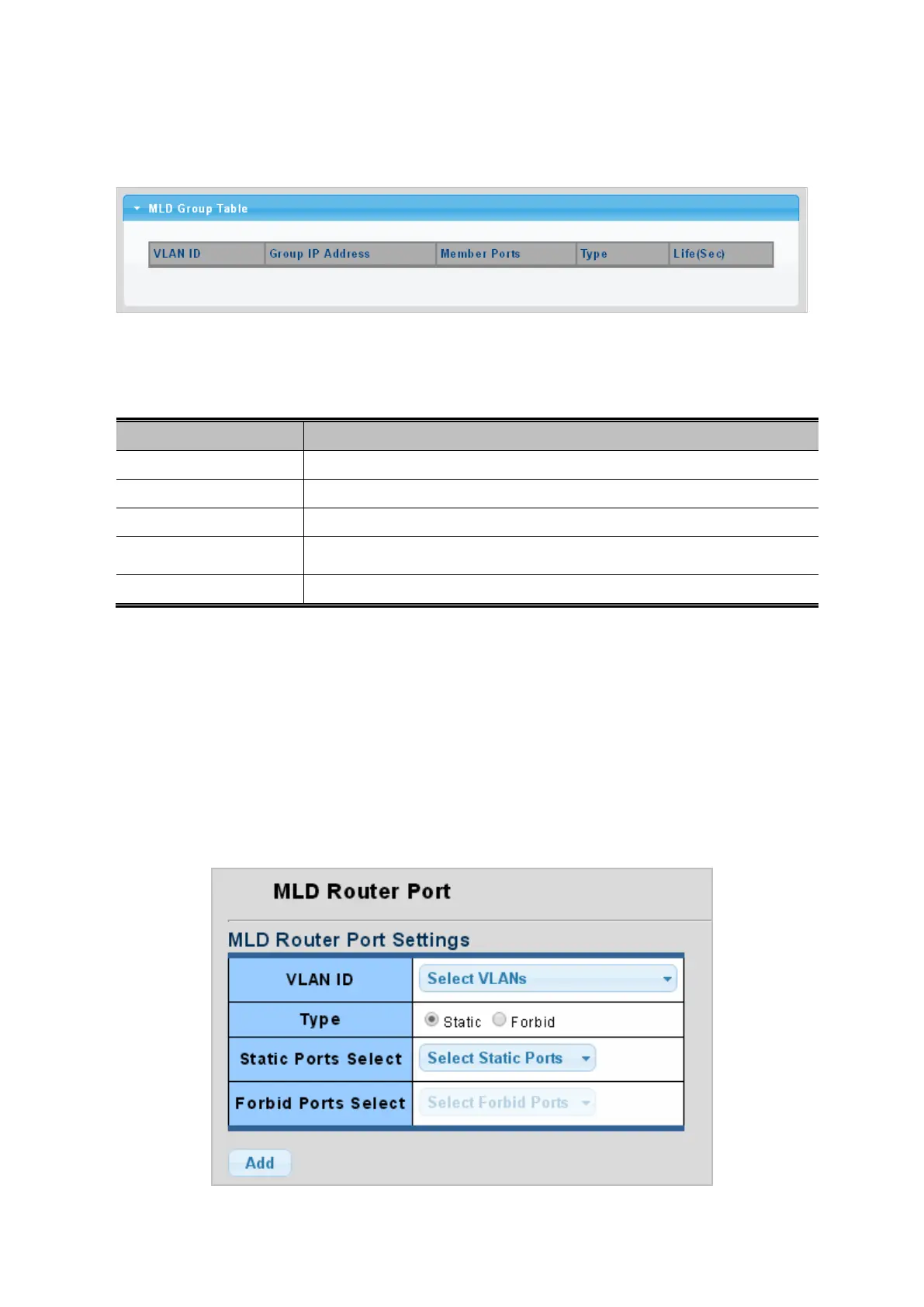

Figure 4-7-27: MLD Group Table Page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
Display the current VID.
• Group IP Address
Display multicast IP address for a specific multicast service.
• Member Port
Display the current member port.
• Type
Member types displayed include Static or Dynamic, depending on selected
options.
• Life(Sec)
Display the current life.
4.7.4.4 MLD Router Setting
Depending on your network connections, MLD snooping may not always be able to locate the MLD querier. Therefore, if the
MLD querier is a known multicast router/ switch connected over the network to an interface (port or trunk) on your Managed
Switch, you can manually configure the interface (and a specified VLAN) to join all the current multicast groups supported by the
attached router. This can ensure that multicast traffic is passed to all the appropriate interfaces within the Managed Switch.
The MLD Router Setting screens in Figure 4-7-28 and Figure 4-7-29 appear.
Figure 4-7-28: Add Router Port Page Screenshot
