4.10.2 MAC-Based ACE
An ACE consists of several parameters. Different parameter options are displayed depending on the frame type that you
selected. The MAC-Based ACE screens in Figure 4-10-3 and Figure 4-10-4 appear.

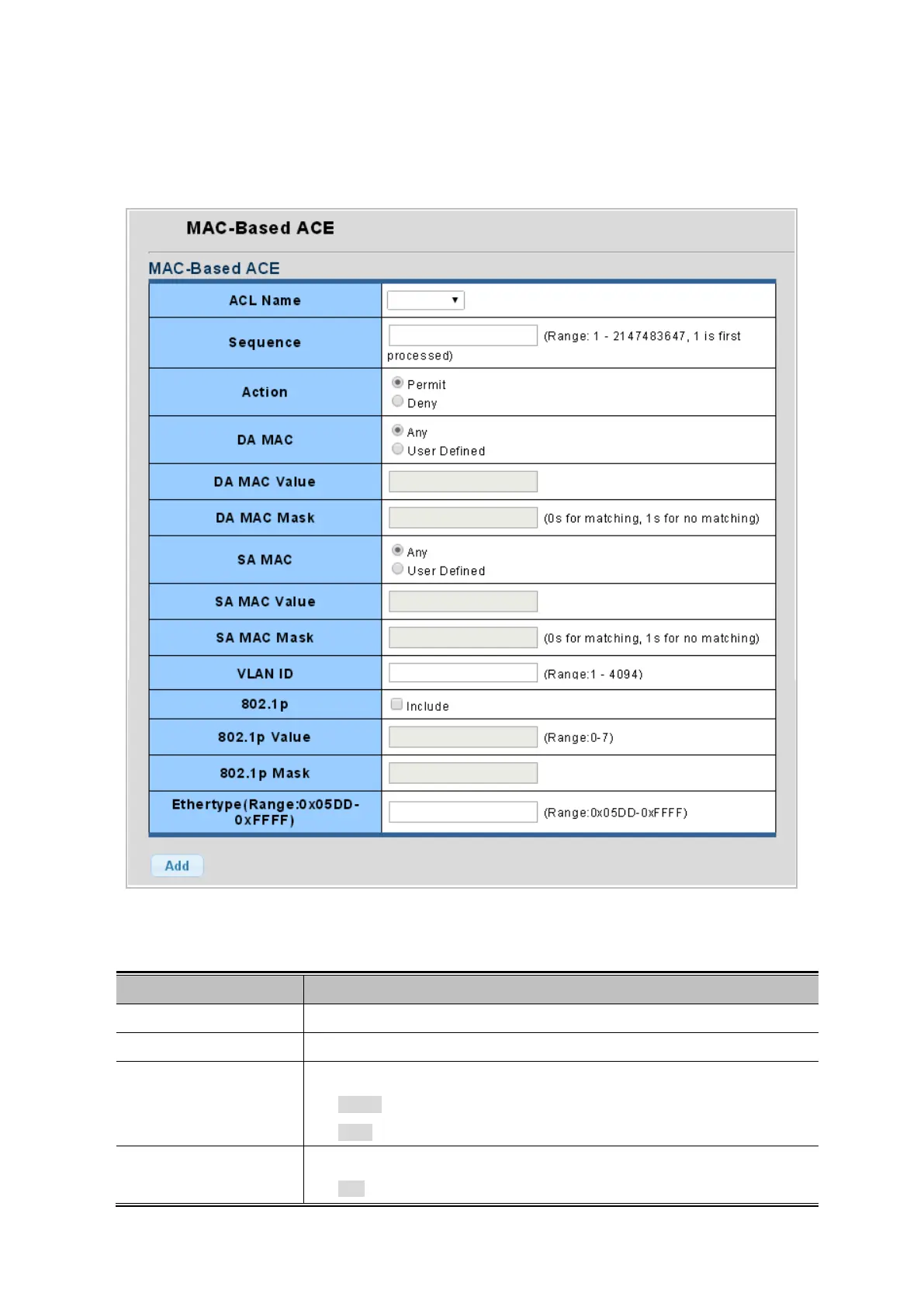

Figure 4-10-3: MAC-Based ACE Page Screenshot
The page includes the following fields:
Object Description
• ACL Name
Select ACL name for this drop down list.
• Sequence
Set the ACL sequence.
• Action
Indicates the forwarding action of the ACE.
 Permit: Frames matching the ACE may be forwarded and learned.
 Deny: Frames matching the ACE are dropped.
• DA MAC
Specify the destination MAC filter for this ACE.
 Any: No DA MAC filter is specified.
