4.8.4 QoS Advanced Mode
4.8.4.1 Global Settings
The Advanced Mode Global Settings and QoS Information screens in Figure 4-8-17 and Figure 4-8-18 appear.

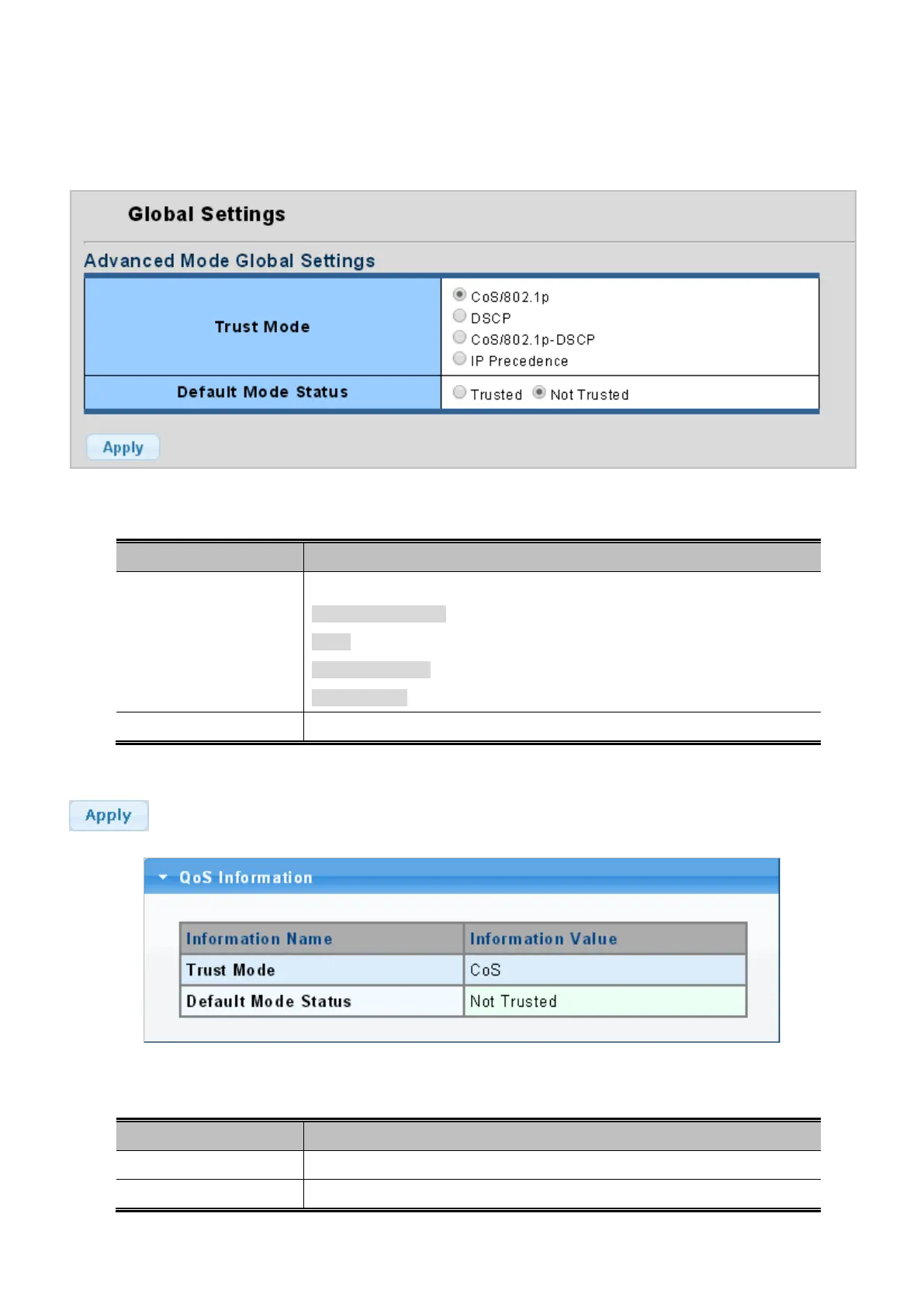

Figure 4-8-17: Advanced Mode Global Settings Page Screenshot
The page includes the following fields:
Object Description
• Trust Mode
Set the QoS mode, the optios are shown as below:
Cos/802.1p (Default)
DSCP
CoS/802.1p-DSCP
IP Precedence
• Default Mode Status
Set the default mode as “Trusted” or “Not Trusted” (Default).
Button
: Click to apply changes.
Figure 4-8-18: QoS Information Page Screenshot
The page includes the following fields:
Object Description
• Trust Mode
Display the current QoS mode.
• Default Mode Status
Disaply the current default mode status.
