3.6 PLANET Smart Discovery Utility
For easily listing the Managed Switch in your Ethernet environment, the Planet Smart Discovery Utility is an ideal solution. The
following installation instructions are to guide you to running the Planet Smart Discovery Utility.
1. Download the PLANET Smart Discovery Utility from PLANET Official Website.
2. Deposit the Planet Smart Discovery Utility in administrator PC.
3. Run this utility as the following screen appears.

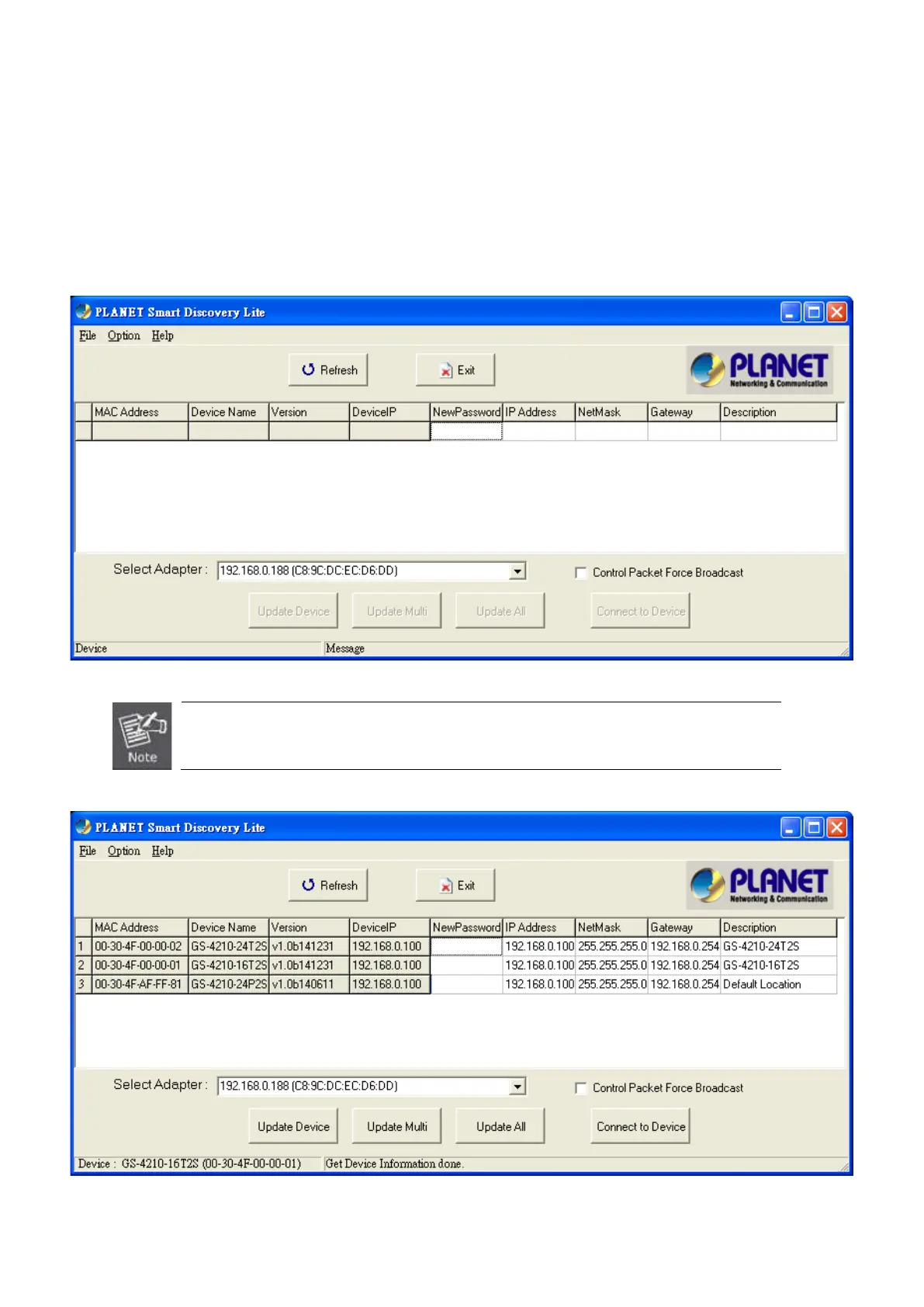

Figure 3-6: Planet Smart Discovery Utility Screen
If there are
two LAN cards or above in the same administrator PC, choose a different LAN card
by using the “Select Adapter” tool.
4. Press “Refresh” button for the currently connected devices in the discovery list as the screen shows below:
Figure 3-7: Planet Smart Discovery Utility Screen

Planet GS-4210-16T2S Specifications

General

Switch type	Managed
Switch layer	L2/L4
Quality of Service (QoS) support	Yes
Console port	RJ-45
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4094
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Stackable	-
Form factor	1U
Certification	FCC, CE
Product color	Blue
Housing material	Metal
Throughput	26.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4 / IPv6
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	10.4 W
Heat dissipation	35 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2000 g
