User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
126
Button
: Click to apply changes.

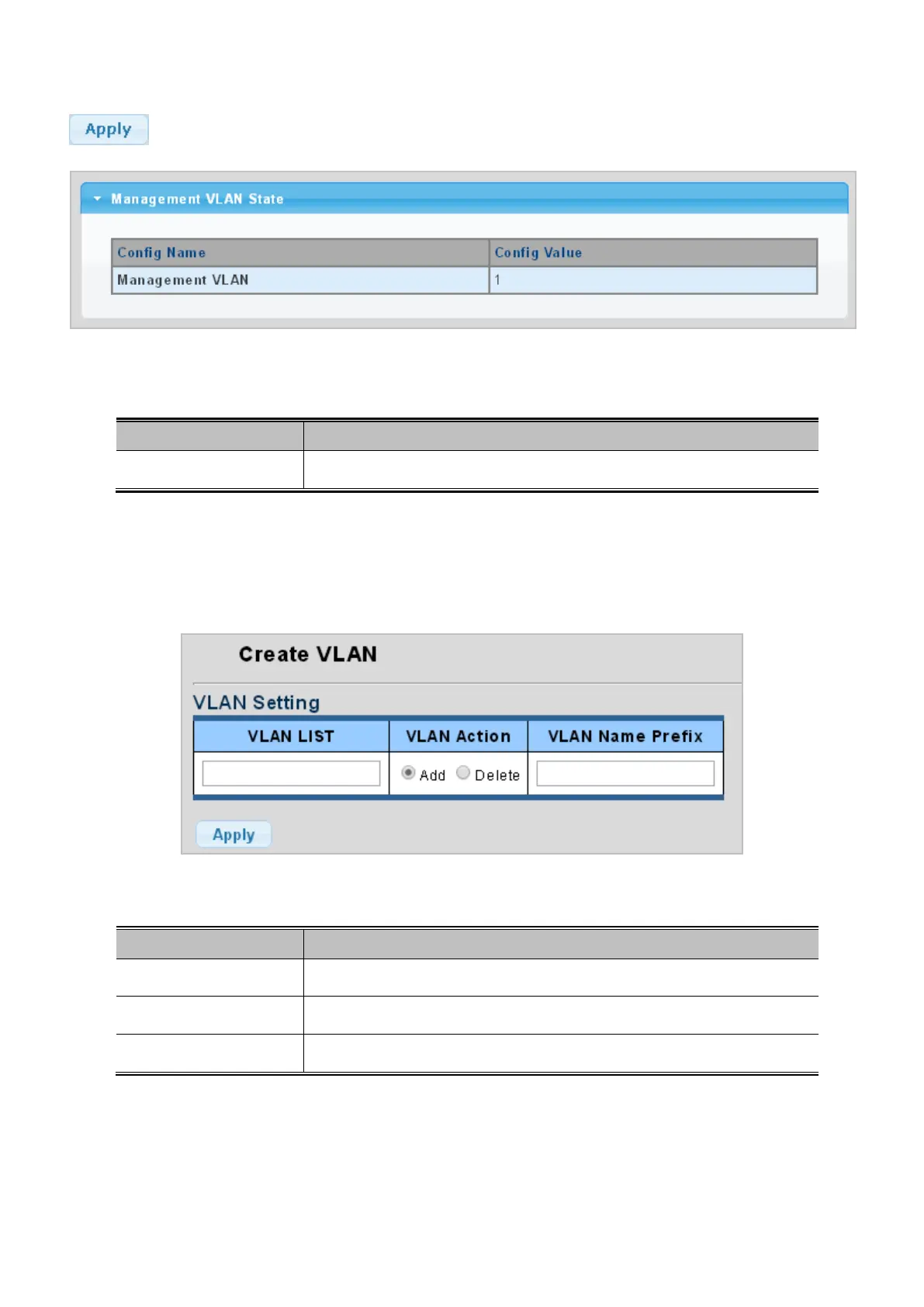

Figure 4-5-2: Management VLAN State Page Screenshot
The page includes the following fields:
Object Description
• Management VLAN
Display the current management VLAN.
4.5.4 Create VLAN
Create/delete VLAN on this page. The screens in Figure 4-5-3 and Figure 4-5-4 appear.
Figure 4-5-3: VLAN Setting Page Screenshot
The page includes the following fields:
Object Description
• VLAN List
Indicates the ID of this particular VLAN.
• VLAN Action
This column allowed users to add or delete VLAN s.
• VLAN Name Prefix
Indicates the name of this particular VLAN, the options are 28 characters.
