User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
29

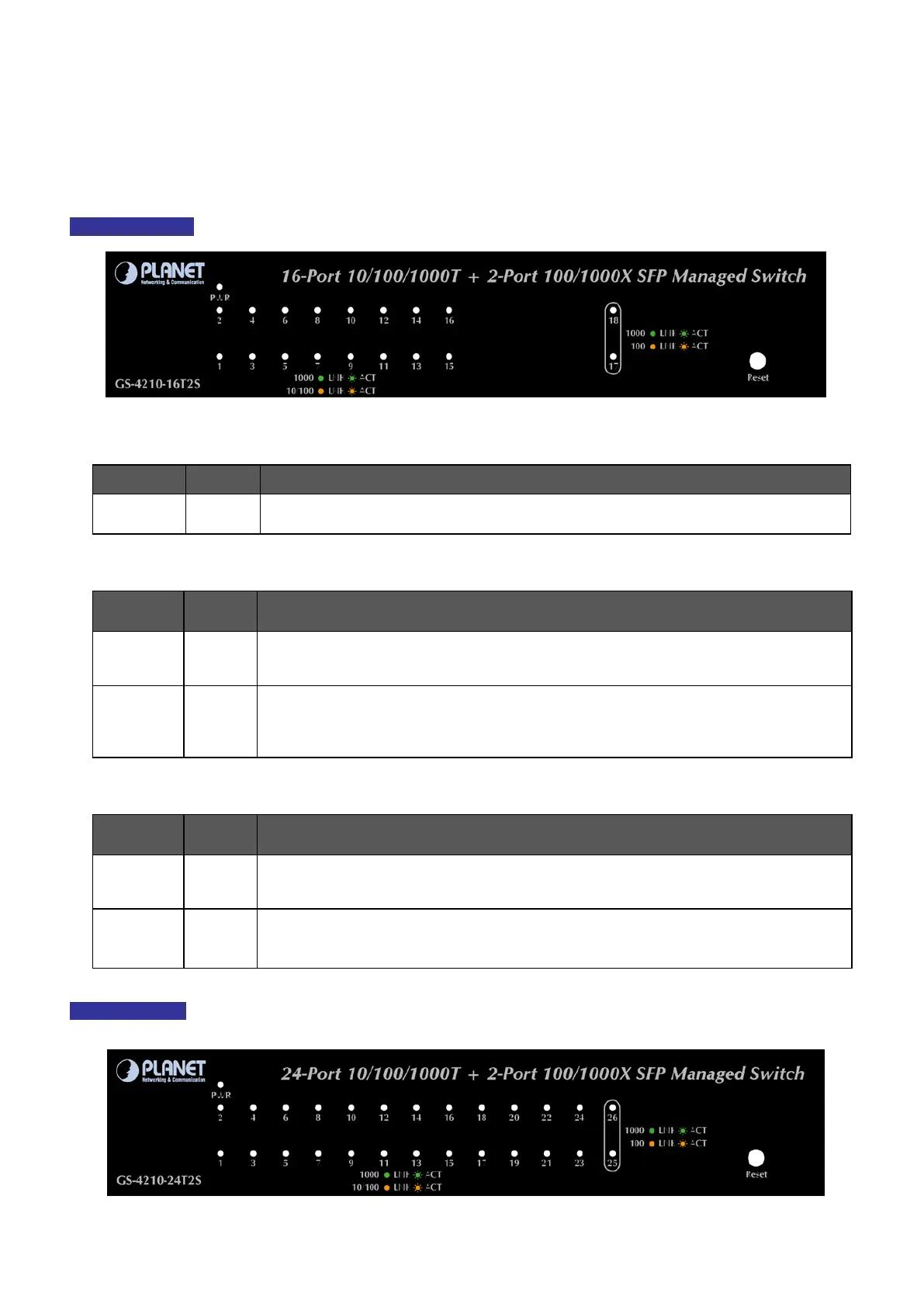

2.1.2 LED Indications
The front panel LEDs indicate instant status of port links, data activity, PoE status and system power; helps monitor and
troubleshoot when needed. Figure 2-1-6, Figure 2-1-7, Figure 2-1-8, Figure 2-1-9 and Figure 2-1-10 show their LED indications.
LED Indication
Figure 2-1-6: GS-4210-16T2S LED Panel
■ System
LED Color Function
PWR Green
Lights
to indicate that the Switch has power.
 10/100/1000BASE-T Interfaces
LED
Color Function
1000
LNK/ACT
Green
Lights:
To indicate the link through that port is successfully established at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
10/ 100
LNK/ACT
Orange
Lights:
Blinks:
To indicate the link through that port is successfully established at 10Mbps or
100Mbps.
To indicate that the switch is actively sending or receiving data over that port.
 100/1000BASE-X SFP Interfaces
LED
Color Function
1000
LNK/ACT
Green
Lights:
To indicate the link through that port is successfully established at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
100
LNK/ACT
Orange
Lights: To indicate the link through that port is successfully established at 100Mbps.
Blinks: To indicate that the switch is actively sending or receiving data over that port.
LED Indication
