Planet GS-4210-16T2S User Manual

User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
205
The page includes the following fields:
Object Description
• IP Type
Select IPv4 or IPv6 for this drop down list.
• Profile Index
Indicates the ID of this particular profile, the available range is 1 to 128.
• Group from
Specifies multicast groups to include in the profile. Specify a multicast group
range by entering a start IP address.
• Group to
Specifies multicast groups to include in the profile. Specify a multicast group
range by entering an end IP address.
• Action
Sets the access mode of the profile; either permit or deny.
- Permit
Multicast join reports are processed when a multicast group falls
within the controlled range.
- Deny
When the access mode is set to, multicast join reports are only
processed when the multicast group is not in the controlled
range.
Button
: Click to add multicast profile entry.

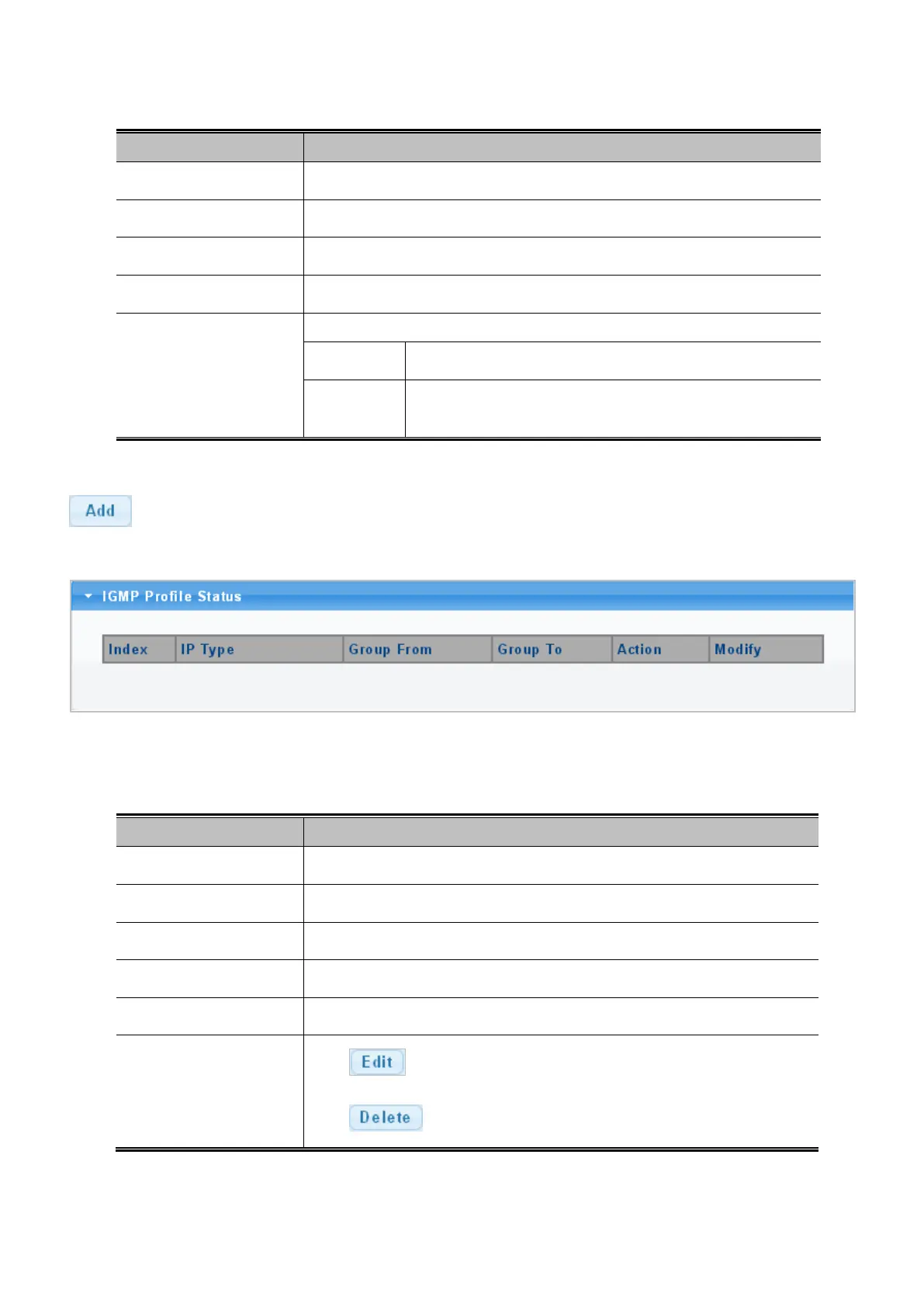

Figure 4-7-38: IGMP/MLD Profile Status Page Screenshot
The page includes the following fields:
Object Description
• Index
Display the current index.
• IP Type
Display the current IP Type.
• Group From
Display the current group from.
• Group To
Display the current group to.
• Action
Display the current action.
• Modify
Click to edit parameter.
Click to delete the IGMP profile entry.

Planet GS-4210-16T2S Specifications

General

Switch type	Managed
Switch layer	L2/L4
Quality of Service (QoS) support	Yes
Console port	RJ-45
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Number of VLANs	4094
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Stackable	-
Form factor	1U
Certification	FCC, CE
Product color	Blue
Housing material	Metal
Throughput	26.7 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4 / IPv6
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	10.4 W
Heat dissipation	35 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2000 g
