User’s Manual of GS-4210 Series

4.5.4 Create VLAN

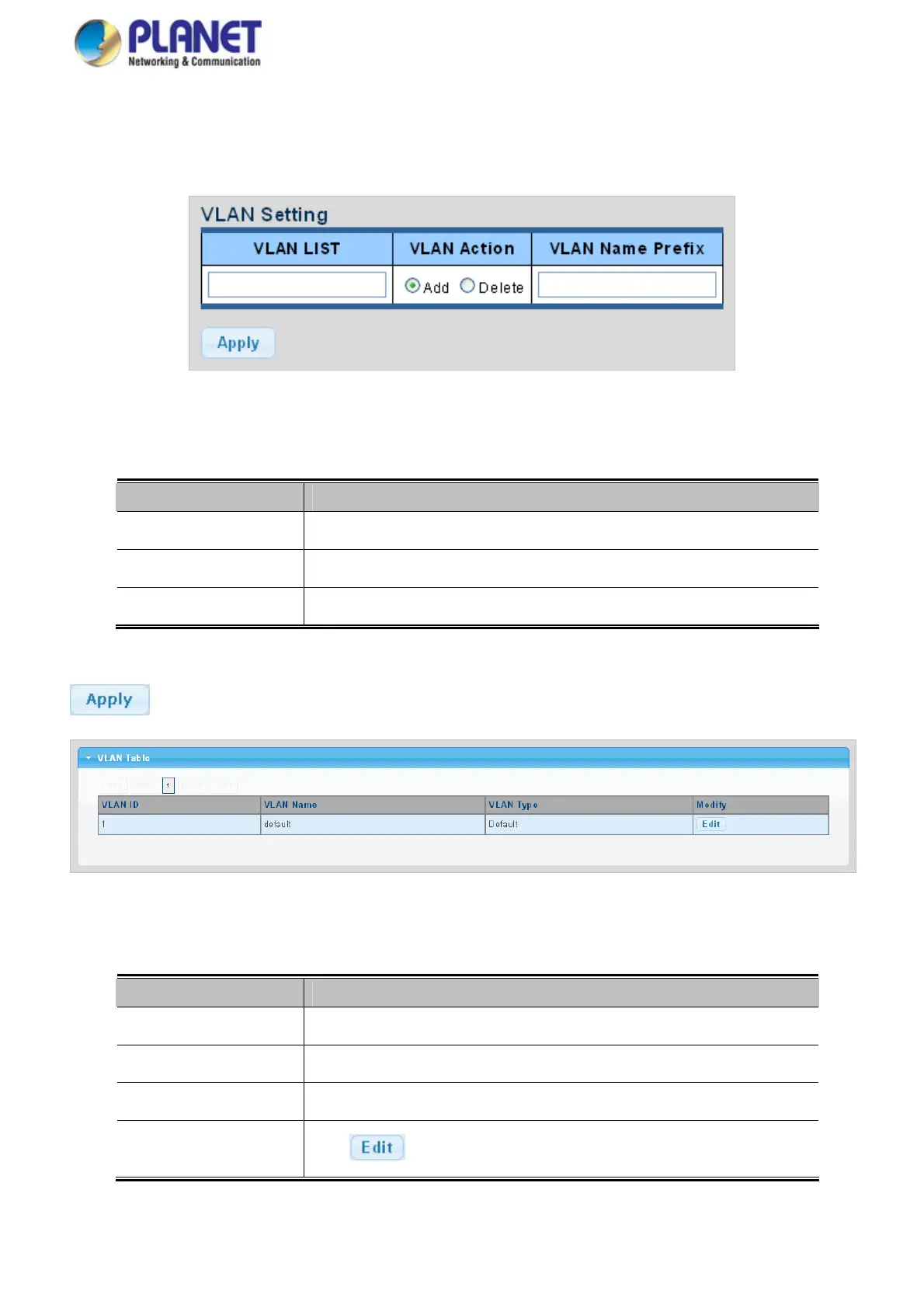

Create/delete VLAN on this page. The screens in Figure 4-5-3 & Figure 4-5-4 appear.

Figure 4-5-3 VLAN Setting Page Screenshot

The page includes the following fields:

Object Description

 VLAN List

Indicates the ID of this particular VLAN.

 VLAN Action

This column allows users to add or delete VLAN s.

 VLAN Name Prefix

Indicates the name of this particular VLAN.

Buttons

: Click to apply changes.

Figure 4-5-4 VLAN Table Page Screenshot

The page includes the following fields:

Object Description

 VLAN ID

Display the current VLAN ID entry

 VLAN Name

Display the current VLAN ID name

 VLAN Type

Display the current VLAN ID type

 Modify

Click

to modify VLAN configuration

121
