User’s Manual of GS-4210 Series
4.6.6 MST Instance Configuration
This page allows the user to configure MST Instance Configuration. The MST Instance Setting, Information and Status screens
in Figure 4-6-12, Figure 4-6-13 & Figure 4-6-14 appear.

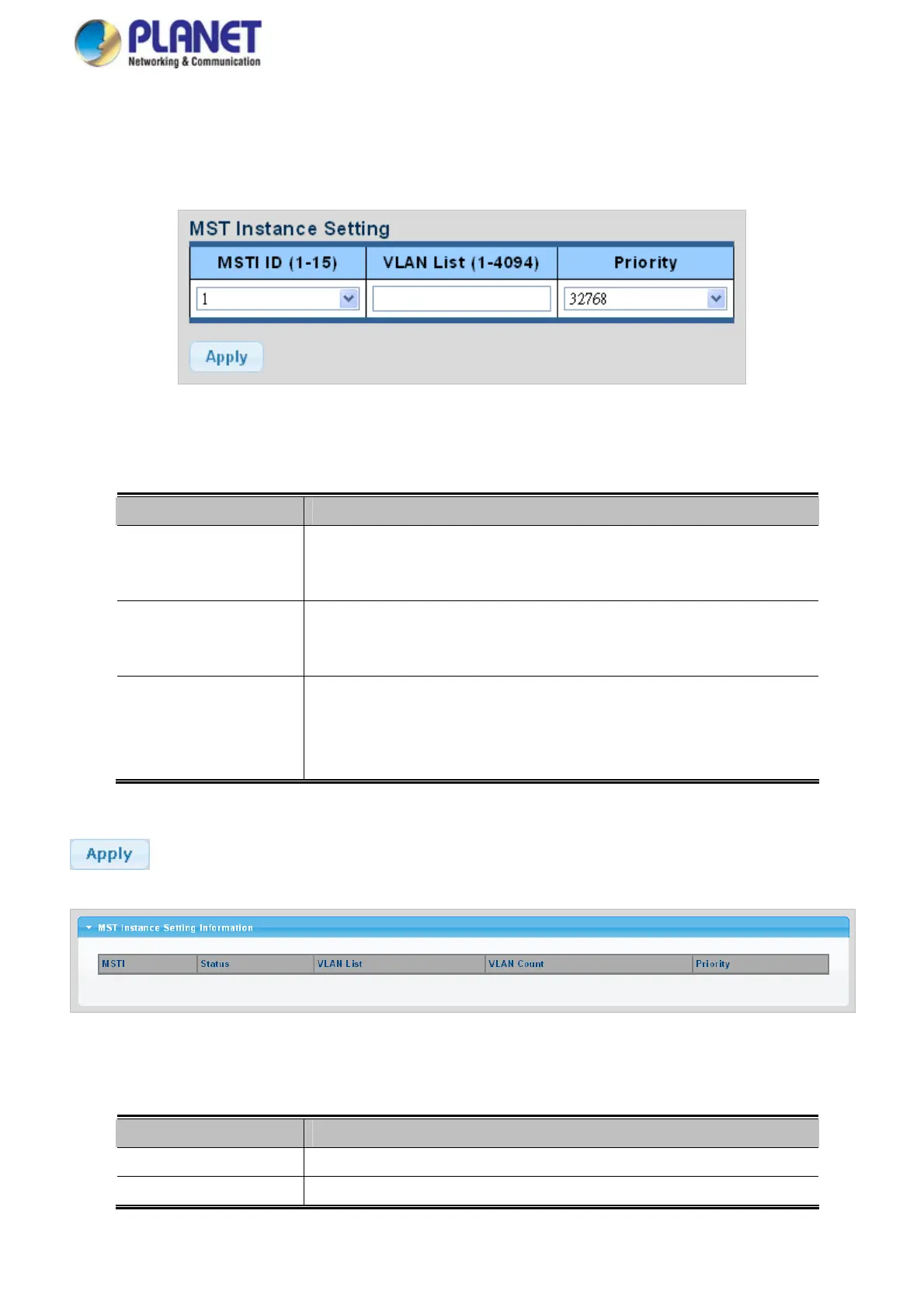

Figure 4-6-12 MST Instance Setting Page Screenshot
The page includes the following fields:
Object Description
 MSTI ID
Allow to assign MSTI ID.
The range for the MSTI ID is 1-15.
 VLAN List (1-4096)
Allow to assign VLAN list to special MSTI ID.
The range for the VLAN list is 1-4094.
 Priority
Controls the bridge priority. Lower numerical values have better priority.
The bridge priority plus the MSTI instance number, concatenated with the 6-byte
MAC address of the switch forms a Bridge Identifier.
Buttons
: Click to apply changes.
Figure 4-6-13 MSTI Instance Setting Information Page Screenshot
The page includes the following fields:
Object Description
 MSTI
Display the current MSTI entry
 Status
Display the current MSTI status
159
