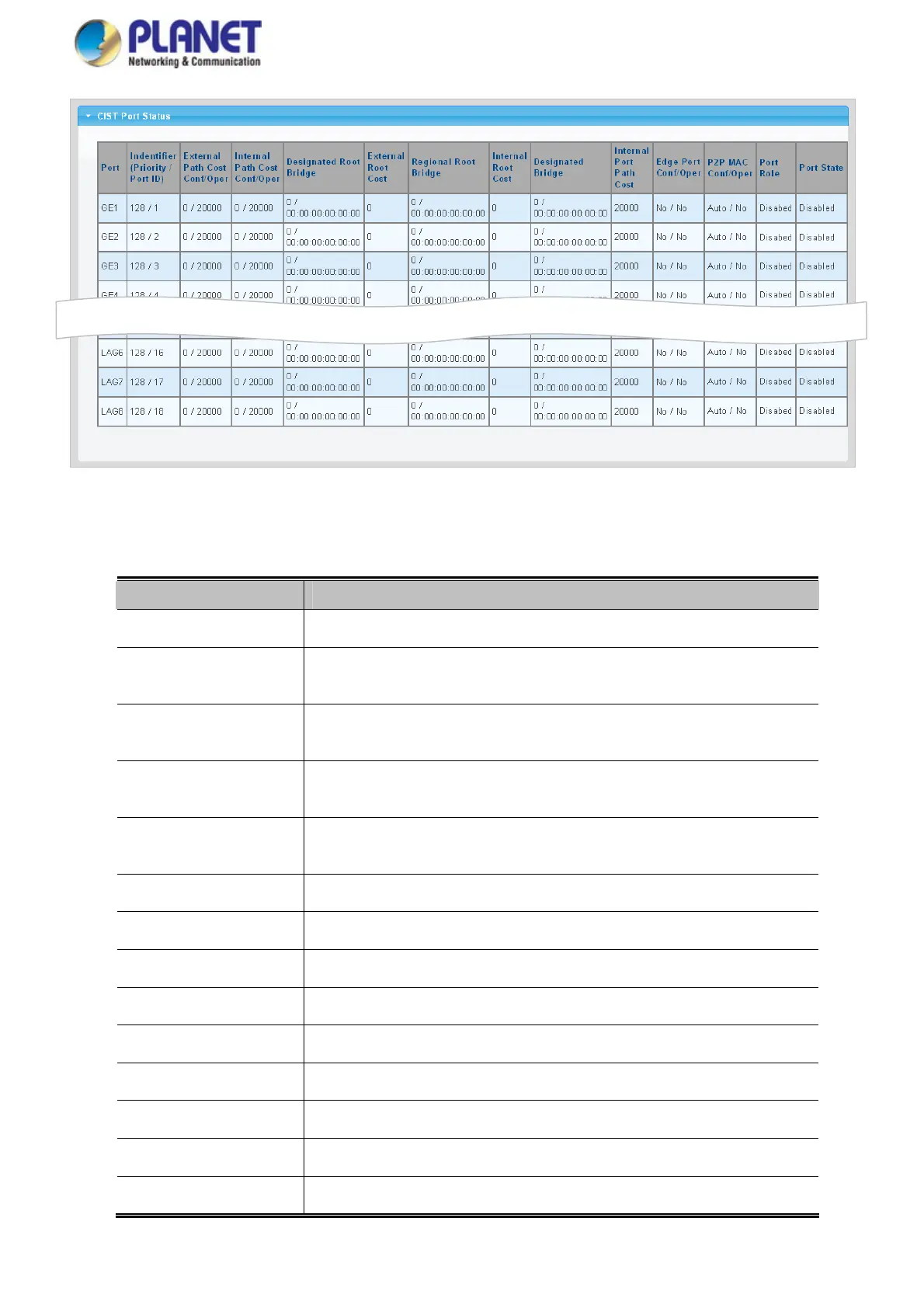

Figure 4-6-11 CIST Port Status Page Screenshot
The page includes the following fields:
Object Description
 Port
The switch port number of the logical STP port
 Indentifier (Priority /
Port ID)
Display the current indentifier (Priority / Port ID)
 External Path Cost
Conf/Oper
Display the current external path cost conf/oper
 Internal Path Cost
Conf/Oper
Display the current internal path cost/oper
 Designated Root
Bridge
Display the current designated root bridge
 External Root Cost
Display the current external root cost
 Regional Root Bridge
Display the current regional root bridge
 Internal Root Cost
Display the current internal root cost
 Designated Bridge
Display the current designated bridge
 Internal Port Path Cost
Display the current internal port path cost
 Edge Port Conf/Oper
Display the current edge port conf/oper
 P2P MAC Conf/Oper
Display the current P2P MAC conf/oper
 Port Role
Display the current port role
 Port State
Display the current port state
158

Planet GS-4210 SERIES Specifications

General

Power Input	100-240VAC, 50/60Hz
Enclosure	Metal
Product Type	Managed Switch
Ports	24 x 10/100/1000BASE-T, 4 x 100/1000BASE-X SFP
MAC Address Table	8K
Jumbo Frame	9K Bytes
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Installation	Rack-mountable
Dimensions	440 x 180 x 44 mm (W x D x H)
Weight	GS-4210-24UP4S: 2500g
