User’s Manual of GS-4210 Series

4.7.7.1 Multicast Profile Setting

The Add Profile and Profile Status screens in Figure 4-7-36 & Figure 4-7-37 appear.

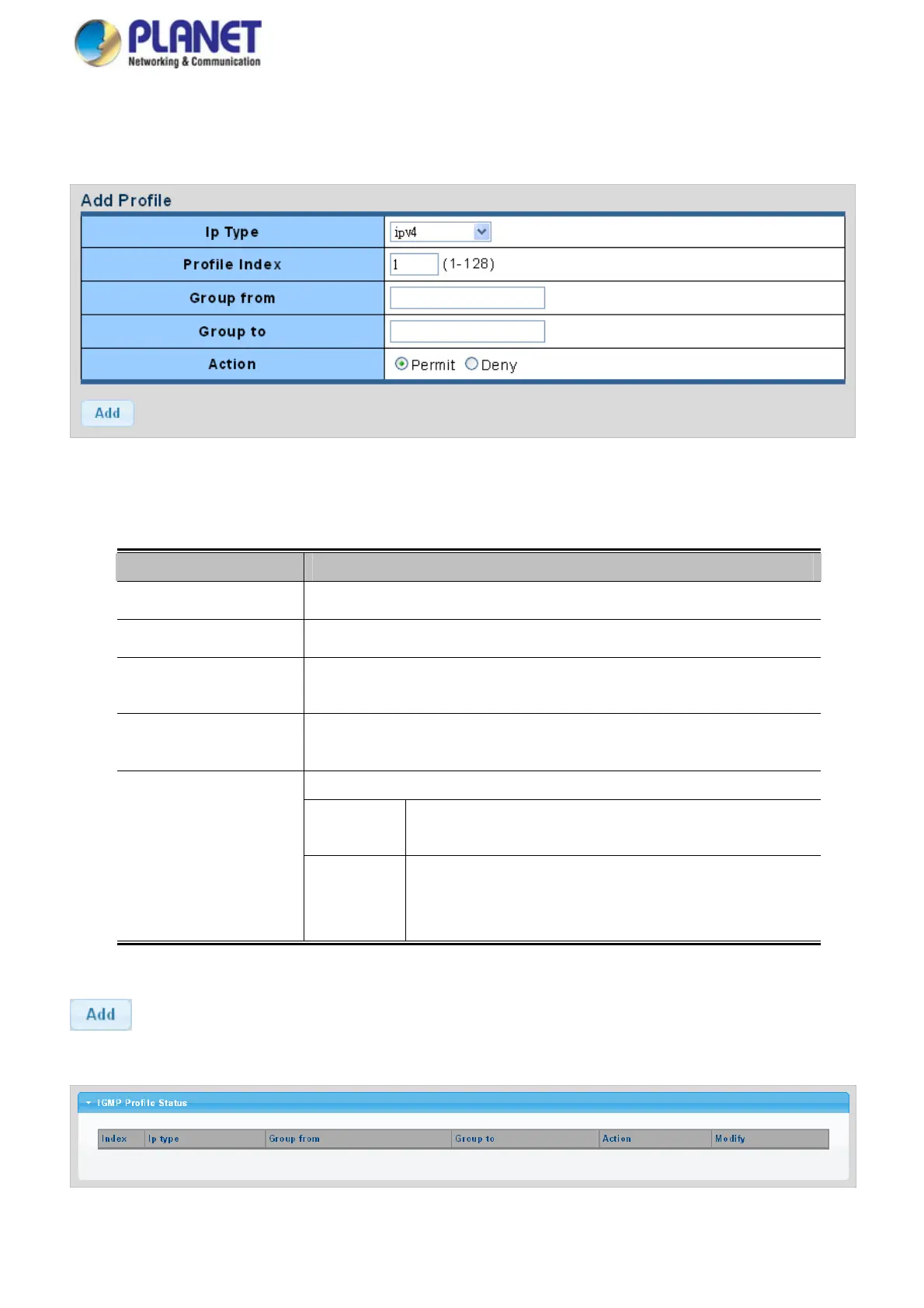

Figure 4-7-36 Add Profile Setting Page Screenshot

The page includes the following fields:

Object Description

 IP Type

Select IPv4 or IPv6 for this drop down list

 Profile Index

Indicates the ID of this particular profile

 Group from

Specifies multicast groups to include in the profile. Specify a multicast group

range by entering a start IP address.

 Group to

Specifies multicast groups to include in the profile. Specify a multicast group

range by entering an end IP address.

Sets the access mode of the profile; either permit or deny.

- Permit

Multicast join reports are processed when a multicast group falls

within the controlled range.

 Action

- Deny

When the access mode is set to, multicast join reports are only

processed when the multicast group is not in the controlled

range.

Buttons

: Click to add multicast profile entry.

Figure 4-7-37 IGMP/MLD Profile Status Page Screenshot

190
