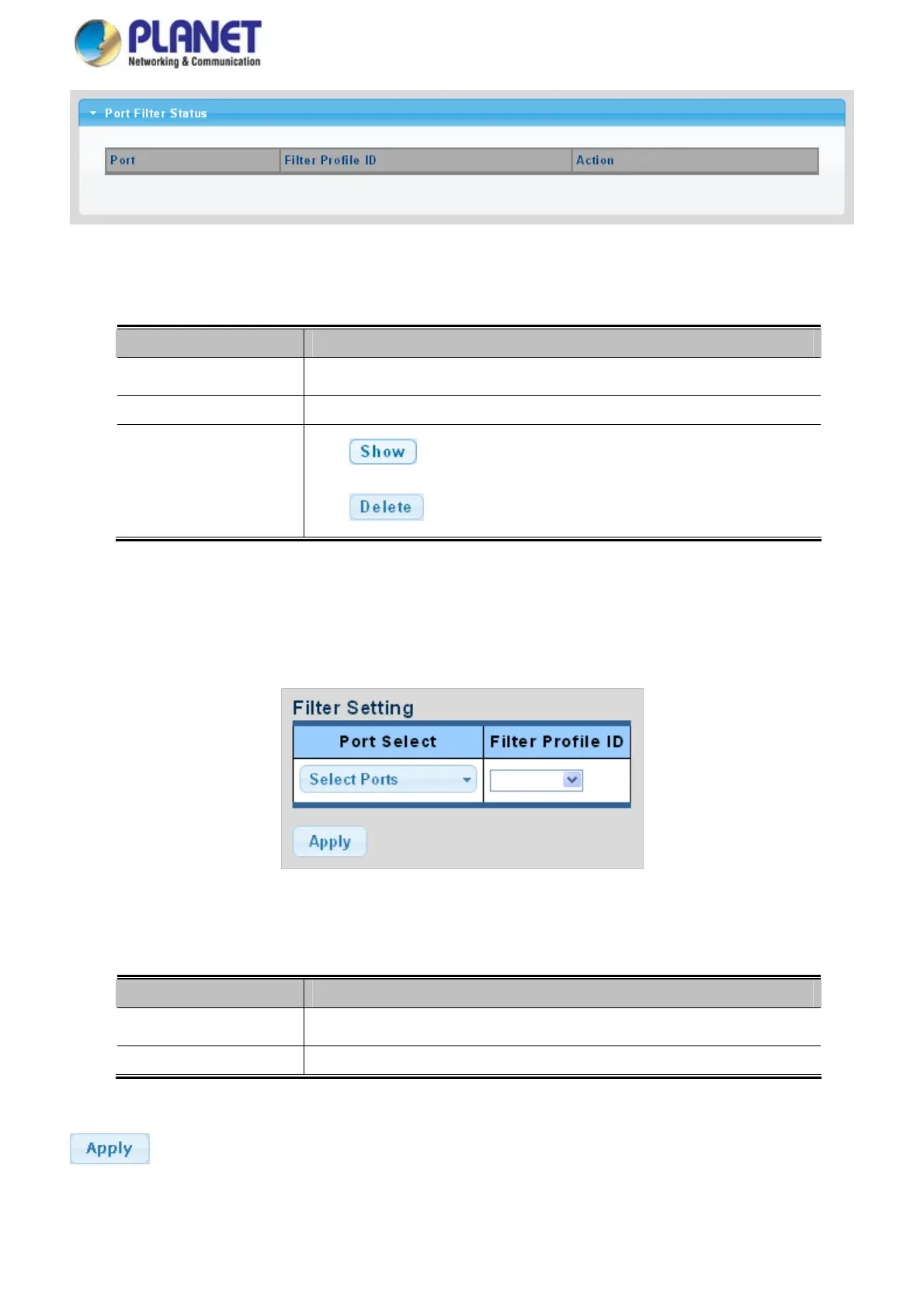

Figure 4-7-39 Port Filter Status Page Screenshot
The page includes the following fields:
Object Description
 Port
Display the current port
 Filter Profile ID
Display the current filter profile ID
 Action
Click
to display detail profile parameter
Click
to delete the IGMP filter profile entry
4.7.7.3 MLD Filter Setting
The Filter Setting and Status screens in Figure 4-7-40 & Figure 4-7-41 appear.
Figure 4-7-40 Filter Setting Page Screenshot
The page includes the following fields:
Object Description
 Port Select
Select port number for this drop down list
 Filter Profile ID
Select filter profile ID for this drop down list
Buttons
: Click to apply changes.
