User’s Manual of GS-4210 Series

4.5.14 VLAN setting example:

- Separate VLANs

- 802.1Q VLAN Trunk

4.5.14.1 Two separate 802.1Q VLANs

The diagram shows how the Managed Switch handles Tagged and Untagged traffic flow for two VLANs. VLAN Group 2 and

VLAN Group 3 are separated VLANs. Each VLAN isolates network traffic so only members of the VLAN receive traffic from the

same VLAN members. The screen in Figure 4-5-20 appears and Table 4-5-2 describes the port configuration of the Managed

Switches.

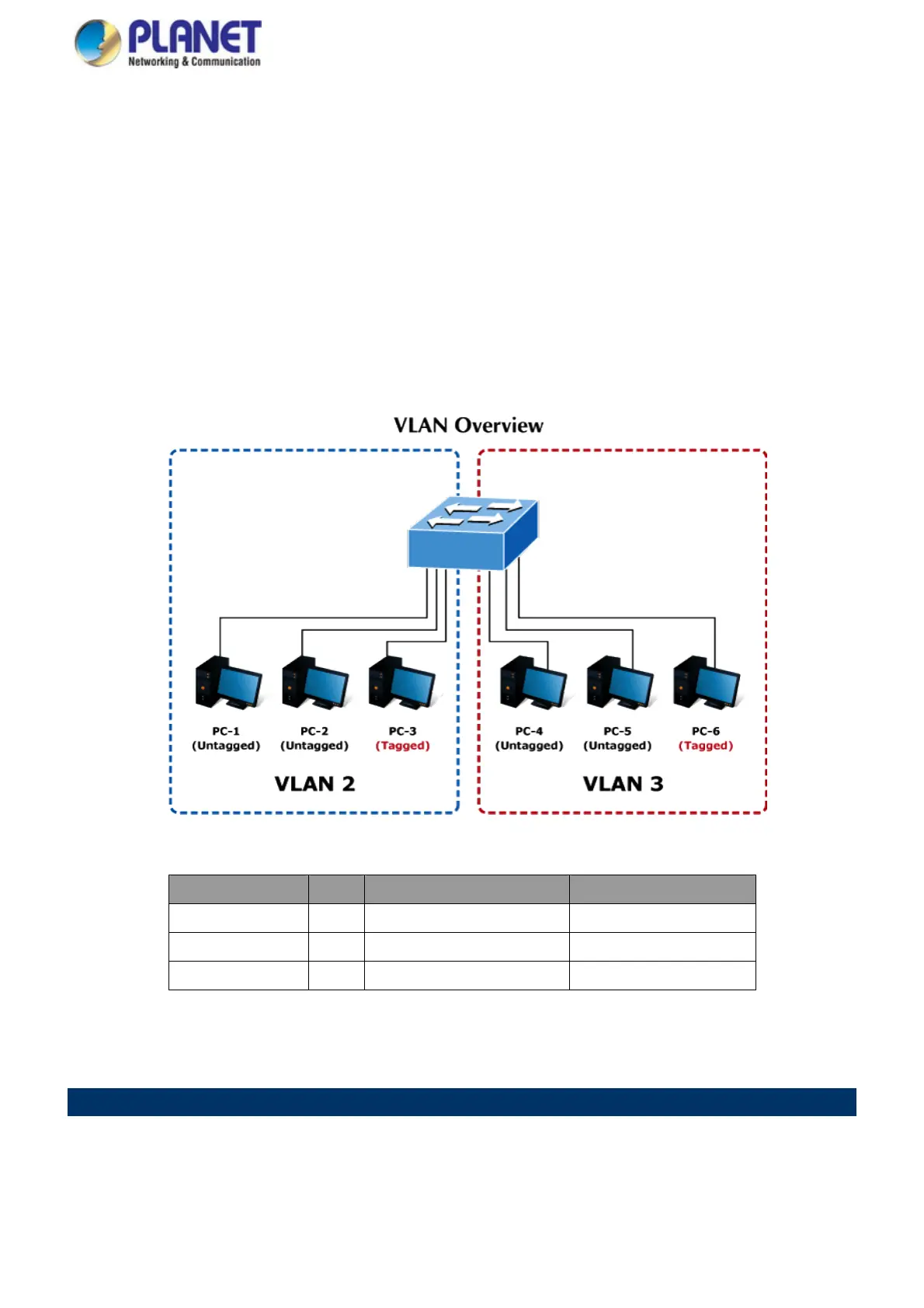

Figure 4-5-20 Two Separate VLAN Diagrams

VLAN Group VID Untagged Members Tagged Members

VLAN Group 1 1 Port-7~Port-8 N/A

VLAN Group 2 2 Port-1,Port-2 Port-3

VLAN Group 3 3 Port-4,Port-5 Port-6

Table 4-5-2 VLAN and Port Configuration

The scenario described as follows:

 Untagged packet entering VLAN 2

1. While [PC-1] transmits an untagged packet enters Port-1, the Managed Switch will tag it with a VLAN Tag=2.

[PC-2] and [PC-3] will received the packet through Port-2 and Port-3.

2. [PC-4], [PC-5] and [PC-6] received no packet.

137
