User’s Manual of GS-4210 Series

4.5.9 Protocol VLAN Port Setting

This page allows you to map an already configured Group Name to a VLAN/port for the switch. The Protocol VLAN Port

Setting/State screens in Figure 4-5-11 & Figure 4-5-12 appear.

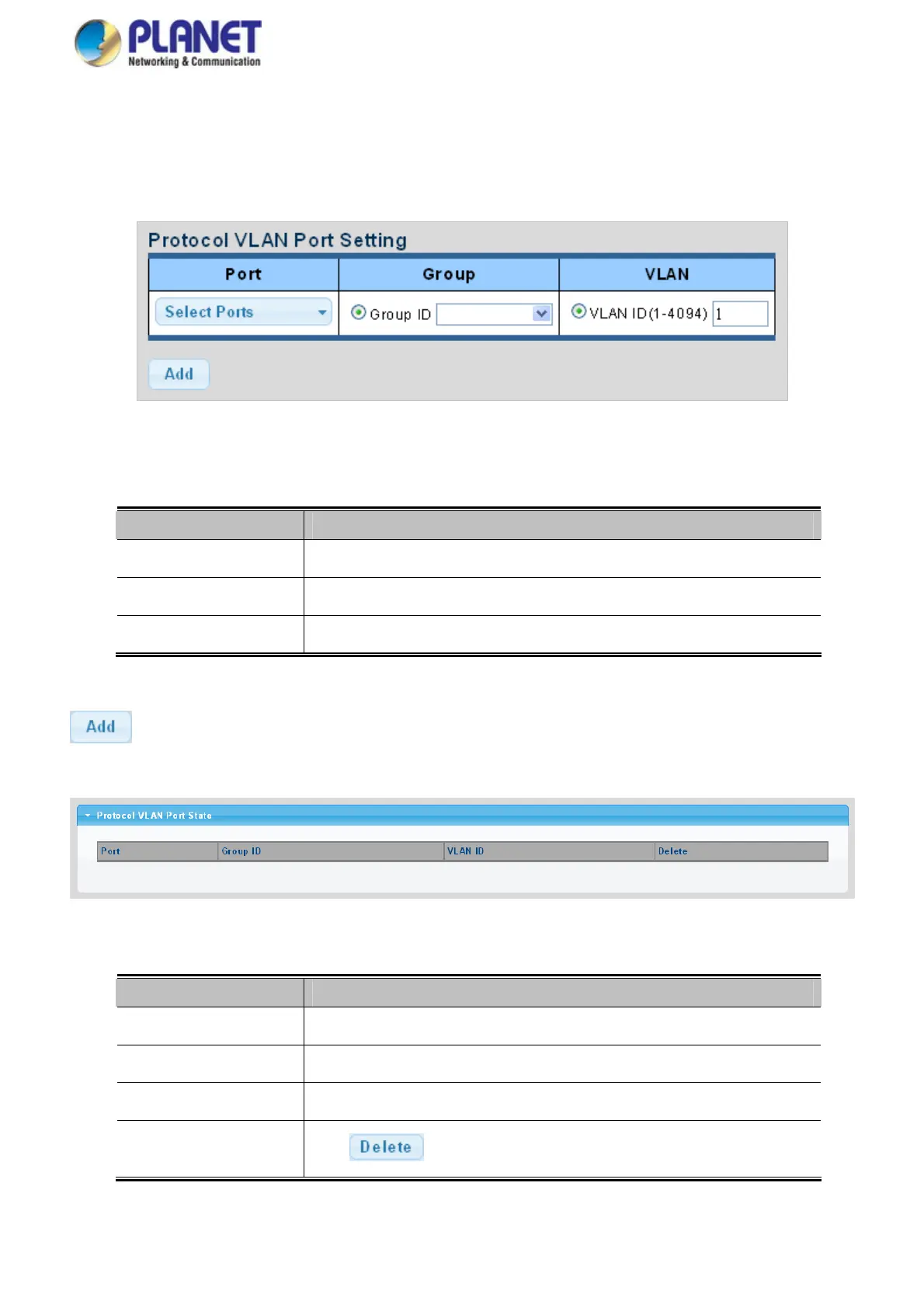

Figure 4-5-11 Protocol VLAN Port Setting Page Screenshot

The page includes the following fields:

Object Description

 Port

Select port for this drop down list to assign protocol VLAN port

 Group

Select group ID for this drop down list to protocol VLAN group

 VLAN

VLAN ID assigned to the Special Protocol VLAN Group

Buttons

: Click to add protocol VLAN port entry.

Figure 4-5-12 Protocol VLAN Port State Page Screenshot

The page includes the following fields:

Object Description

 Port

Display the current port

 Group ID

Display the current group ID

 VLAN ID

Display the current VLAN ID

 Delete

Click to delete the group ID entry

130
